Home ProductsBrushless DC Gear Motor

Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm

Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm
Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm

Large Image :  Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: ROSH,CE
Model Number: 5840-3650LS
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm

Description
Usage: Home Appliance,Electric Bicycle,Car Commutation: Brushless
Speed(rpm): 8-470RPM Type: BLDC Motor
Certification: CE,ROHS,CCC Name: Brushless Worm Gear Motor
High Light:

116mm Brushless Worm Gear Motor

,

470rpm Brushless Worm Gear Motor

,

470rpm brushless dc gearmotor

Long Shaft M8 116mm Brushless Worm Gear Motor 12V 24V 470rpm



Long Shaft M8 Length 116mm Brushless Gear Motor Electric DC 12V 24V Speed Reduce 8rpm To 470rpm



Specification:
  • Voltage: DC12V

No-load Speed: 8rpm,14rpm,20rpm,40rpm,80rpm,130rpm,235rpm

  • Voltage: DC24V

No-load Speed: 16rpm,27rpm,40rpm,80rpm,160rpm,260rpm,470rpm

  • Error: ±5%

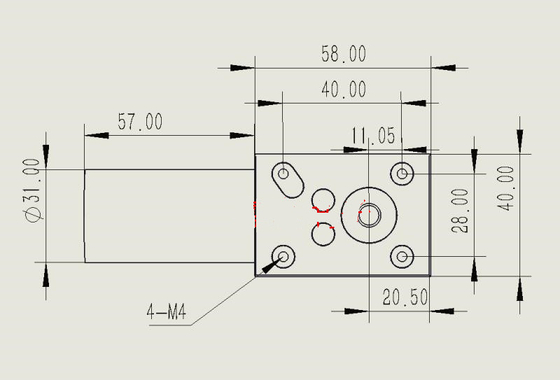

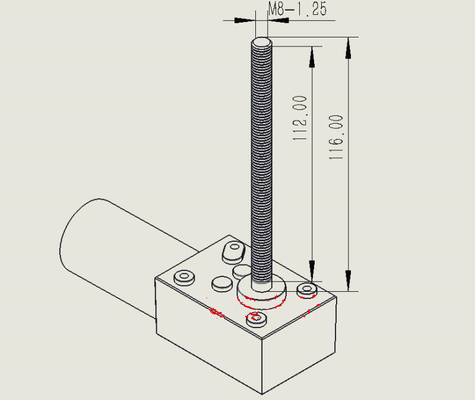

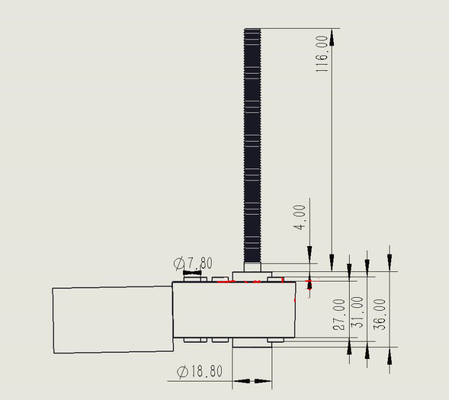

Wiring:



  • Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm 0

Datasheet:

Reduction ratio Rated Volt No Load AT Load STALL
SPEED CURRENT Torque SPEED Current TOGQCE CURRENT
V RPM mA KG.cm RPM A KG..CM A
17 12 235 230 2.5 180 0.8 4.3 3
31 12 130 230 4.5 100 0.8 8 3
50 12 80 230 7.3 60 0.8 12.5 3
100 12 40 230 14.5 30 0.8 25 3
200 12 20 230 29 15 08 51 3
290 12 14 230 42 10 0.8 70 3
500 12 8 230 60 6 0.8 70 3
17 24 470 300 5 380 1.6 8.5 3
31 24 260 300 9.5 200 1.6 15.5 3
50 24 160 300 15 130 1.6 25 3
100 24 80 300 30 60 1.6 50 3
200 24 40 300 40 30 1.6 70 3
290 24 27 300 50 20 1.6 70 3
500 24 16 300 60 12 1.6 70 3

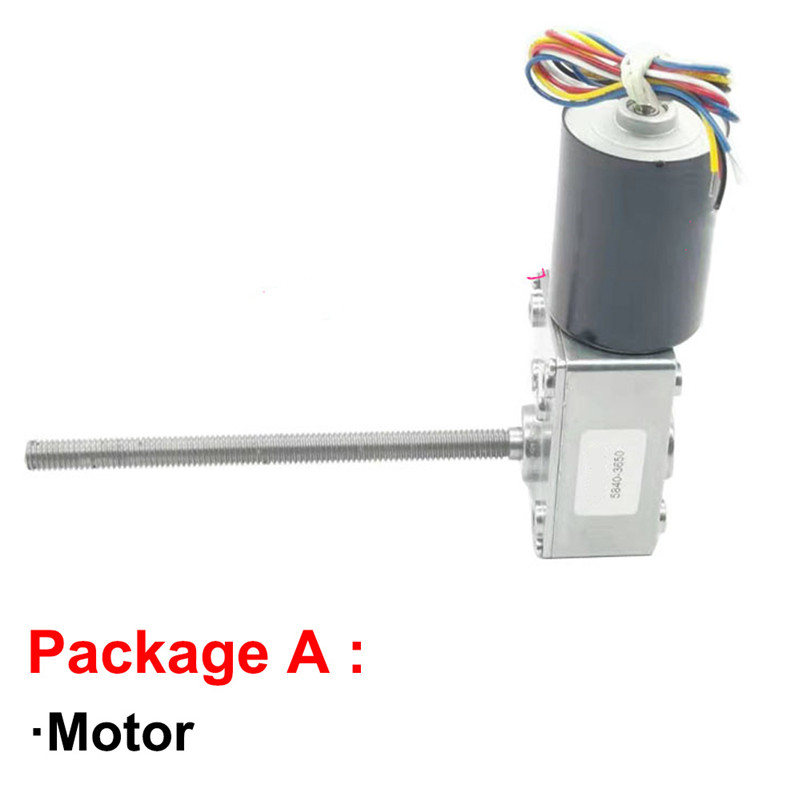

Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm 1



Customization Process
Long Shaft M8 116mm brushless worm gear motor 12V 24V 470rpm 2

Brushless DC Gear Motor; Brushless DC Motors:



Brushless DC motors use semiconductor switching devices to achieve electronic commutation, that is, electronic switching devices are used to replace traditional contact commutators and brushes. It has the advantages of high reliability, no reversing sparks, and low mechanical noise. It is widely used in high-end audio jacks, video recorders, electronic instruments and automated office equipment.



FAQ

Q1: Are you a Manufacturer or a Trading Company?

A: We are a professional manufacturer with over 15 years of experience, and have a complete supply chain from parts processing to finished products.

Q2: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

Q3: How about Sample order?

A: Sample is available for you. please contact us for details. Once we charge you sample fee,please feel easy, it would be refund when you place formal order.

Q4: How long is the producing and shipping?

A: 1. Delivery timedepends on the quantity you order. usually it takes 7-15 working days.

     2. Regular type products can be shipped within 3 workingdays, and other customized samples can be shipped within 7-10 working days.

Q5: When will you reply after got my inquiries?

A: Ourcustomer service is online 24 hours, looking forward to your inquiry.
