100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

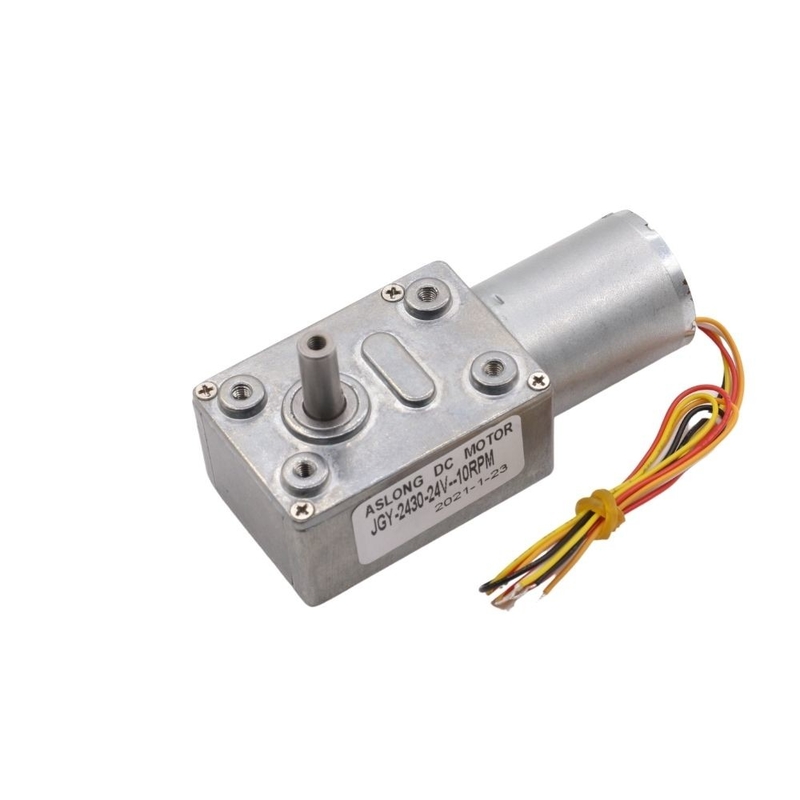

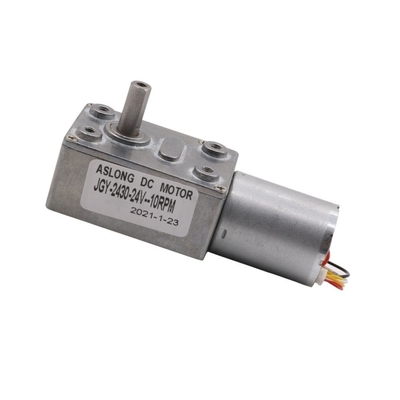

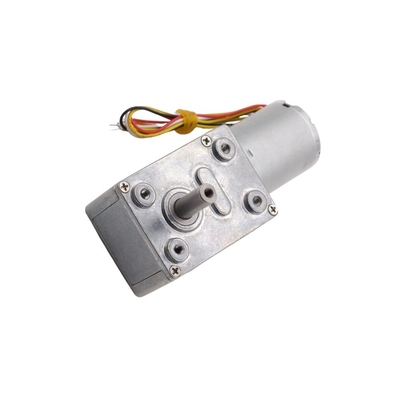

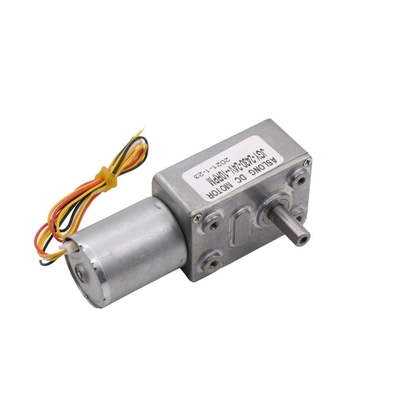

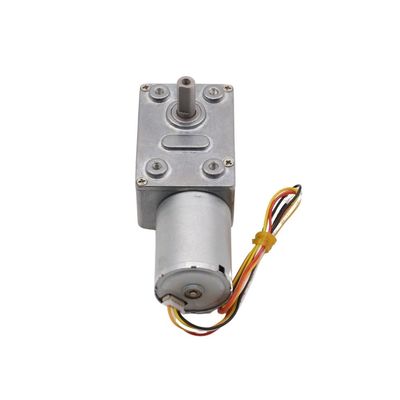

100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder

100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder 100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder 100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder 100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder 100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder

Large Image :  100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: ROSH,CE
Model Number: JGY-2430
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder

Description
Usage: Home Appliance,Electric Bicycle Commutation: Brushless Dc Gear Motor
Type: BRUSHLESS DC Geared MOTOR Protect Feature: Totally Enclosed
Certification: CE,ROHS Construction: Permanent Magnet
High Light:

100rpm Brushless DC Gear Motor

,

Worm BLDC Brushless DC Gear Motor

,

100rpm bldc gear motor

100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder​



12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor With Encoder​



Note:
* Brushless Gearmotors are best suited for applications that require "continuous (constant) operation.
* Gearmotor performance is highly influenced by the motor's ability to dissipate heat and avoid thermal overload, which can damage internal components and even demagnetize the magnets. Proper sizing and selection are the first step to ensuring that the motor is not at risk of thermal overload within the parameters of the application
Specification:
Voltage: DC12V, DC24V
No-Load Speed: 6rpm, 10rpm, 18rpm, 23rpm, 30rpm, 40rpm, 100rpm, 150rpm
Error: ±10%
Output Shaft Diameter: 6mm D-type
Output Shaft Length: 14mm
Gearbox Size:46*32*25mm
Gearbox Size Detal, please see the table

Wirings:

Red Wire - positive power supply of motor(+)

Black Wire - negative power supply of motor(-)

Yellow Wire - FG output
Orange Wire - control CW or CCW of motor(CCW: Orange Wire do not connect. CW: Orange Wire connect negative power supply of motor(-))
White Wire - control speed of motor (by PWM signal control speed)

Note: For it is a blushless motor, the wires can't be connected wrong, or it will be burnt.

CW: Red wire --> positive power supply of motor(+); Black wire and White wire ---> negative power supply of motor(-)

CCW: Red wire --> positive power supply of motor(+); Black wire, White wire and Orange Wire ---> negative power supply of motor(-)

  •
  • Size and Parameter Table:
  • Rote Volt DC12V JGY370-2430

    Reduction ratio 40 65 150 200 260 340 600 1000
    No load Current (MA) <130 W130 <130 W130 <130 <130 W130 <130
    No load RPM 150 90 40 30 23 18 10 6
    Load torque (Kg,cm) 1.5 3 7.0 9.0 12.0 15.0 21.0 25.0
    Load RPM 100 70 30 22 17 13 7 4
    Load Currern (A) W0.8 W0.8 W0.8 W0.8 W0.8 <0.8 <0.8 W0.8
    Max Torque (Kg.cm) 2.5 4.2 10.0 13.0 17.0 22.0 Max 25KG
    Stall Current (A) 1.8 1.8 1.8 1.8 1.8 1.8 Fobidden Stall

    Rated Volt DC12V JGY370-2430
    Reduction ratio 40 65 150 200 260 340 600 1000
    No load Current (MA) <80 <80 <80 <80 <80 <80 <80 <80
    No load RPM 150 90 40 30 23 18 10 6
    Load ©rque (Kg.cm) 20 3.5 8.0 10.0 14.0 17.0 20.0 25.0
    Load RPM 100 70 30 22 17 13 7 4
    Load Current (A) <1.3 <0.5 <0.5 <0.5 <0.5 <0.5 <0.5 <0.5
    Max Torque (Kg.cm) 3.0 4.9 11.5 15.0 20.0 25.0 Max 25KG
    Stall Current (A) 1.3 1.3 1.3 1.3 1.3 1.3 Fobidden Stall
