Worn Brushless DC Gear Motor Double Shaft DC 12V 24V Electric Motors BLDC

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

Worn Brushless DC Gear Motor Double Shaft DC 12V 24V Electric Motors BLDC

Worn Brushless DC Gear Motor Double Shaft DC 12V 24V Electric Motors BLDC
Worn Brushless DC Gear Motor Double Shaft DC 12V 24V Electric Motors BLDC

Large Image :  Worn Brushless DC Gear Motor Double Shaft DC 12V 24V Electric Motors BLDC

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: ROSH,CE
Model Number: 5840-3650-180
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

Worn Brushless DC Gear Motor Double Shaft DC 12V 24V Electric Motors BLDC

Description
Usage: Home Appliance,Electric Bicycle,Car Commutation: Brushless
Speed(rpm): 8-470RPM Type: BLDC Motor
Certification: CE,ROHS,CCC Efficiency: IE 1
Product Name: Brushless Motor Double Shaft M8 Length 72mm Geared Worn DC 12V 24V Electric Motors BLDC 12 Volt Reducer 8rpm To 470rpm Protect Feature: Totally Enclosed
High Light:

260rpm Brushless DC Gear Motor

,

ODM Brushless DC Gear Motor

,

BLDC 12V 24V Electric Motors

Worn Brushless DC Gear Motor Double Shaft DC 12V 24V Electric Motors BLDC​

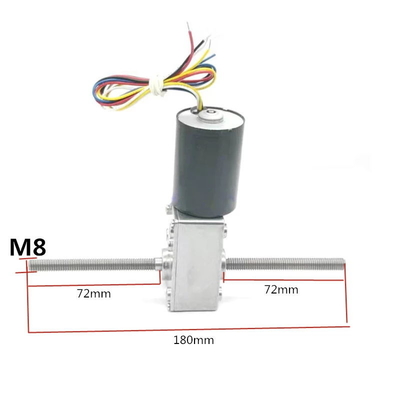

Brushless Motor Double Shaft M8 Length 72mm Geared Worn DC 12V 24V Electric Motors BLDC 12 Volt Reducer 8rpm To 470rpm



Specification:
  • Voltage: DC12V

No-load Speed: 8rpm,14rpm,20rpm,40rpm,80rpm,130rpm,235rpm

  • Voltage: DC24V

No-load Speed: 16rpm,27rpm,40rpm,80rpm,160rpm,260rpm,470rpm

  • Error: ±5%

  •

Wiring:

  • Worn Brushless DC Gear Motor Double Shaft DC 12V 24V Electric Motors BLDC 0

Datasheet:



Worn Brushless DC Gear Motor Double Shaft DC 12V 24V Electric Motors BLDC 1

5840-3650
Reduction ratio Rated Volt No Load AT Load STall
SPEED CURRENT Torque SPEED Current TOGQCE CURRENT
V RPM mA KG.cm RPM A KG..CM A
17 12 235 230 2.5 180 0.8 4.3 3
31 12 130 230 4.5 100 0.8 8 3
50 12 80 230 7.3 60 0.8 12.5 3
100 12 40 230 14.5 30 0.8 25 3
200 12 20 230 29 15 08 51 3
290 12 14 230 42 10 0.8 70 3
500 12 8 230 60 6 0.8 70 3
17 24 470 300 5 380 1.6 8.5 3
31 24 260 300 9.5 200 1.6 15.5 3
50 24 160 300 15 130 1.6 25 3
100 24 80 300 30 60 1.6 50 3
200 24 40 300 40 30 1.6 70 3
290 24 27 300 50 20 1.6 70 3
500 24 16 300 60 12 1.6 70 3



Manufacturer kindly suggestion

1) If the load more than the rated torque, the motor will be damaged.
2) If you connect the voltage less than the rated voltage, the rated torque will be reduced.
3) Please tell us real load ,so we can choose the best match torque motor for you .



DC Worm Gear Motors is a kind of transmission machinery with compact structure, large transmission ratio and self-locking function under certain conditions. Moreover, the installation is convenient and the structure is reasonable, and it has been widely used in mining, lifting, transportation, metallurgy, chemical, dry powder press special, elevator, ship, locomotive, construction, textile and other industries.

Miniature worm gear motors are widely used in smart home, medical equipment, automotive transmission, robots, automatic equipment, and industrial

Automation, instrumentation, electronic products, personal care products and other fields;
