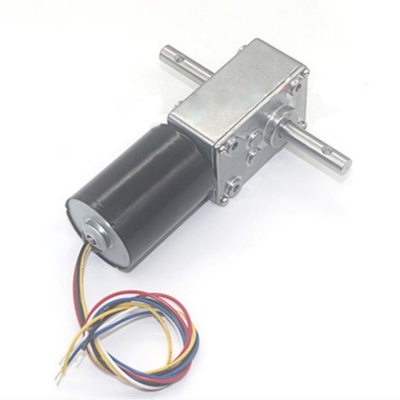

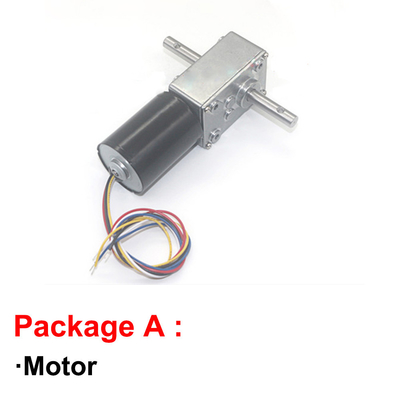

33mm Brushless Double Shaft Worm Gear Motor High Torque BLDC 12 Volt

33mm Brushless Double Shaft Worm Gear Motor High Torque BLDC 12 Volt
33mm Brushless Double Shaft Worm Gear Motor High Torque BLDC 12 Volt 33mm Brushless Double Shaft Worm Gear Motor High Torque BLDC 12 Volt

Large Image :  33mm Brushless Double Shaft Worm Gear Motor High Torque BLDC 12 Volt

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: ROSH,CE
Model Number: 5840-3650SC
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

33mm Brushless Double Shaft Worm Gear Motor High Torque BLDC 12 Volt

Description
Usage: Home Appliance,Electric Bicycle,Car Commutation: Brushless
Speed(rpm): 8-470RPM Type: BLDC Motor
Certification: CE,ROHS,CCC Efficiency: IE 1
Protect Feature: Totally Enclosed Product Name: Double Shaft Length 33mm Brushless DC Motor 12V 24V Gear Electric Moteur BLDC 12 Volt Reducer Speed High Torque
High Light:

33mm Double Shaft Worm Gear Motor

,

BLDC Worm Gear Motor

,

BLDC dual shaft gear motor

33mm Brushless Double Shaft Worm Gear Motor High Torque BLDC 12 Volt



Double Shaft Length 33mm Brushless DC Motor 12V 24V Gear Electric Moteur BLDC 12 Volt Reducer Speed High Torque



Specification:
  • Voltage: DC12V

No-load Speed: 8rpm,14rpm,20rpm,40rpm,80rpm,130rpm,235rpm

  • Voltage: DC24V

No-load Speed: 16rpm,27rpm,40rpm,80rpm,160rpm,260rpm,470rpm

  • Error: ±5%

Wiring:



  • 33mm Brushless Double Shaft Worm Gear Motor High Torque BLDC 12 Volt 0

Datasheet:

33mm Brushless Double Shaft Worm Gear Motor High Torque BLDC 12 Volt 1

5840-3650
Reduction ratio Rated Volt No Load AT Load STall
SPEED CURRENT Torque SPEED Current TOGQUE CURRENT
V RPM mA KG.cm RPM A KG..CM A
17 12 235 230 2.5 180 0.8 4.3 3
31 12 130 230 4.5 100 0.8 8 3
50 12 80 230 7.3 60 0.8 12.5 3
100 12 40 230 14.5 30 0.8 25 3
200 12 20 230 29 15 08 51 3
290 12 14 230 42 10 0.8 70 3
500 12 8 230 60 6 0.8 70 3
17 24 470 300 5 380 1.6 8.5 3
31 24 260 300 9.5 200 1.6 15.5 3
50 24 160 300 15 130 1.6 25 3
100 24 80 300 30 60 1.6 50 3
200 24 40 300 40 30 1.6 70 3
290 24 27 300 50 20 1.6 70 3
500 24 16 300 60 12 1.6 70 3



Features of brushless DC motor:

* Completely replace DC motor speed regulation, comprehensively replace frequency converter + variable frequency motor speed regulation, comprehensively replace asynchronous motor + reducer speed regulation;

* It has all the advantages of the traditional DC motor, and at the same time cancels the carbon brush and slip ring structure;

* It can run at low speed and high power, eliminating the need for a reducer to directly drive a large load;

* Small size, light weight, large output;

* Excellent torque characteristics, good middle and low speed torque performance, large starting torque, small starting current;

* Stepless speed regulation, wide speed range, strong overload capacity;

* Soft start and soft stop, good braking characteristics, can save the original mechanical braking or electromagnetic braking device;

* High efficiency, the motor itself has no excitation loss and carbon brush loss, eliminating multi-stage deceleration loss, comprehensive power saving The rate can reach 20%~60%, and only save electricity to recover the purchase cost in one year;

* High reliability, good stability, strong adaptability, simple repair and maintenance;

* Resistance to turbulence and vibration, low noise, low vibration, smooth operation and long life;

* No radio interference, no sparks, especially suitable for explosive places, explosion-proof type;

* Trapezoidal wave magnetic field motor and sine wave magnetic field motor can be selected as required.
