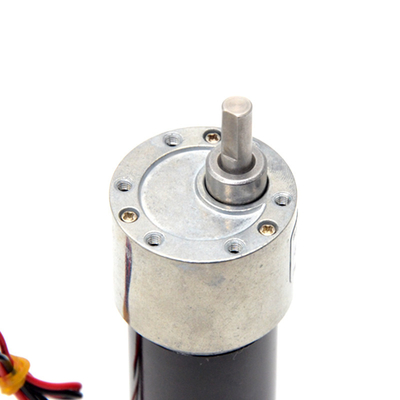

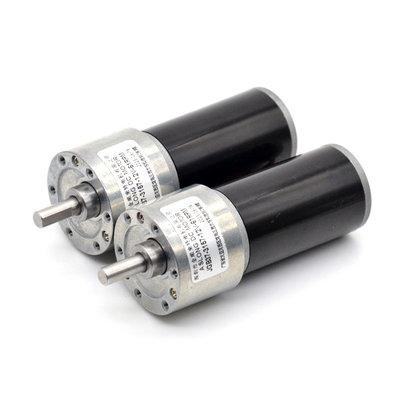

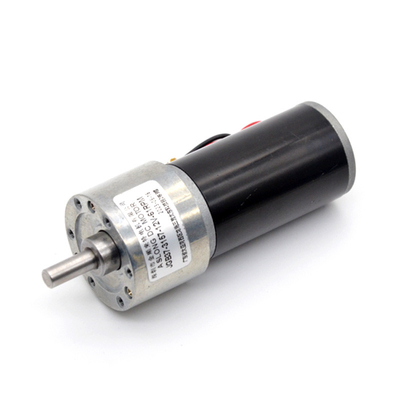

37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box

37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box
37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box

Large Image :  37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE,RoHs
Model Number: JGB37-3157
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: negeotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 5000 Pieces Per day
Contact Now

37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box

Description
Product Name: JGB37-3157 Type: Brushed Motor
Voltage(v): 12v & 24v Speed(rpm): 9-1280rpm
Size: 37MM Usage: Electric Bicycle,,Home Appliance,Boat, Car,Fan

37mm 12V 7RPM Small DC Gear Motors High Torque Electric Motors



37mm 12V DC 7RPM To 960RPM High Torque Gear Box Electric Motor New Gearmotor



37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 037mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 1





  JGB37-520 Micro Dc Gear Motor Description:

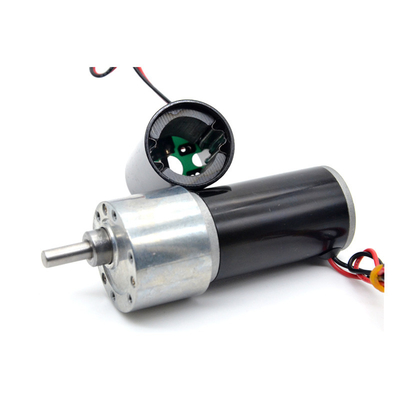

Now ,you can get our this 37mm dc gear motor with magnetic encoder(JGB37-520B),and other related 37mm gearbox motors as following:





37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 2 37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 3 37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 4 37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 5
JGB37-520B JGB37-3530 JGB37-3157 JGB37-3625
37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 6 37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 7 37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 8 37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 9
JGB37-3650 JGB37-545 JGB37-550 ZGA37-3530



【Manufacturer's direct store】

We are a professional manufacturer of various DC reduction motors for over 14 years. We not only provide stable and excellent quality, but also provide excellent services. If you need customized parameters and mass production, we can provide you. Please feel free to contact us for more details.



【Quality of motor】

We have specialized equipment for testing and developing motors. We use all metal gear motors with long lifespan and noise. We will never cut corners to save costs. We will conduct strict testing on the motor before shipment to ensure that it meets the requirements.



【Give service to】

We will provide you with excellent service both before and after sales. You can always contact me for more product details.



【Product information】


[Model:JGB37-3157】

[Power:14W】

[Rated voltage: 12V 24V]

[No-load current:120-240MA]

[No load speed:9-1280RPM]

[Motor size:37mm]

[Output shaft diameter:6mm(D-axis)】

[Adjustable speed Reversible]
[Customizable shaft length, speed, and voltage]

37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 10







Model:JGB37-3157
Voltage Noload   Load Torque Stall Reducer
Using The voltage Speed Current Speed Current Torque Power Torque Current Redct i on (L)Size
Range Rated r/mi n ma r/mi n A kg. cm W kg. cm A Ratio mm
6-12V 12V 1280 240 960 1.2 0.5 14 2.5 3.5 6.25 19
6-12V 12V 800 240 600 1.2 0.8 14 4 3.5 10 19
6-12V 12V 425 240 340 1.2 1.5 14 7.5 3.5 18.8 22
6-12V 12V 266 240 212 1.2 2.4 14 12 3.5 30 22
6-12V 12V 142 240 113 1.1 4.5 14 22 3.5 56 24
6-12V 12V 88 240 73 1.1 7.2 14 36 3.5 90 24
6-12V 12V 61 240 51 1.1 10 14 50 3.5 131 26.5
6-12V 12V 47 240 40 1.1 14 14 Forbidden 3.5 168 26.5
6-12V 12V 29 240 25 1 21 14 Forbidden 3.5 270 26.5
6-12V 12V 15 240 13 1 40 14 Forbidden 3.5 506 29
6-12V 12V 9 240 8 1 60 14 Forbidden 3.5 810 29
6-24V 24V 1280 120 960 0.9 0.5 14 2.5 3 6.25 19
6-24V 24V 800 120 600 0.9 0.8 14 4 3 10 19
6-24V 24V 425 120 340 0.9 1.5 14 7.5 3 18.8 22
6-24V 24V 266 120 212 0.9 2.4 14 12 3 30 22
6-24V 24V 142 120 113 0.9 4.5 14 22 3 56 24
6-24V 24V 88 120 73 0.9 7.2 14 36 3 90 24
6-24V 24V 61 120 51 0.9 10 14 50 3 131 26.5
6-24V 24V 47 120 40 0.8 14 14 Forbidden 3 168 26.5
6-24V 24V 29 120 25 0.8 21 14 Forbidden 3 270 26.5
6-24V 24V 15 120 13 0.8 40 14 Forbidden 3 506 29
6-24V 24V 9 120 8 0.8 60 14 Forbidden 3 810 29





FAQ
37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 11

Packaging & Shipping



37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 12

Company Profile

37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 13
37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 14
37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 15
Product packaging

37mm Low Rpm Brush Motor JGB37-3157 24V 88RPM 1:90 High Rpm Electric Dc Motor With Speed Reducer Box 16
FAQ

1)What's the price?
We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

2)What's the MOQ?
We try to meet every client's requests and don't want to disappoint our clients.
So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

3)What's the delivery time?
At the first we have an schedule,the earlier you place order,the fater we finish the production.
In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.

4)Can you send some samples before the order?
Yes of course,we must send the sample to confirm the quality with you first.
UPS,TNT,FEDEX or DHL are all available.

5)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable.
So logo in usually logo is necessary.It can be labeled on the motors.

6)What's the payment term?
For small amount,we accept 100% payment via paypal.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.
And the rest must be paid before shipping.

7)How to deliver the goods?
we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.

8)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable.
So logo in usually logo is necessary.It can be printed,emboridered,embossed/jacquard.

9)What's the payment term?
For small amount,we accept 100% payment via Western Union.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.
And the rest must be paid before shipping.

10)How to deliver the goods?
If goods quantity is small,we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and clients don't need to pay the custom charge.
If goods quantity is large,we will ship by sea.It will be very economical.

11)Does your company supply to any famous hotels?
As a leading manufactuer of hotel products,we have many famous hotel and resort clients.
Such as InterContinental Hotels Group,Marriott Hotel,The Ritz Carlton Hotel and son on.
If you need some samples of them,we can send out.

12)Any other questions kindly chat with our sales,they will do the best to serve you.
