Product Details:
|
Product Name: | JGB37-3530B | Type: | Brushed Motor |
---|---|---|---|
Voltage(v): | 12v 24v | Speed(rpm): | 6-1600rpm |
Size: | 37MM | Usage: | Electric Bicycle,,Home Appliance, Car, Boat, Fan |

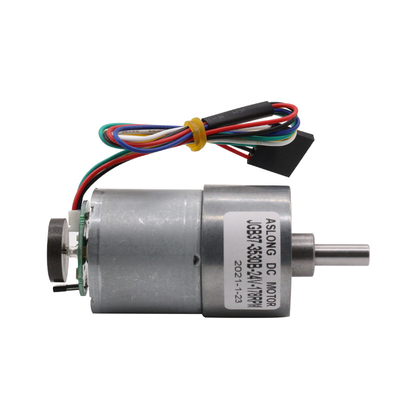

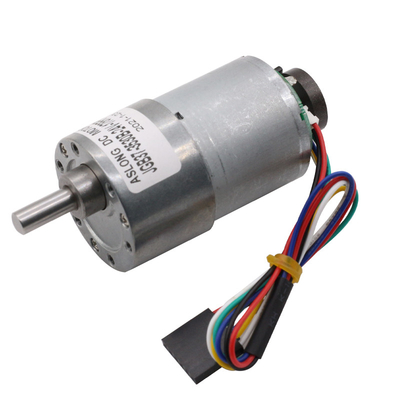

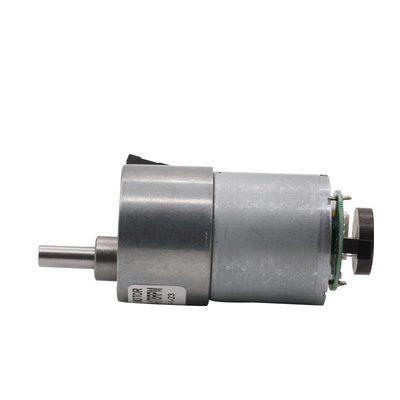

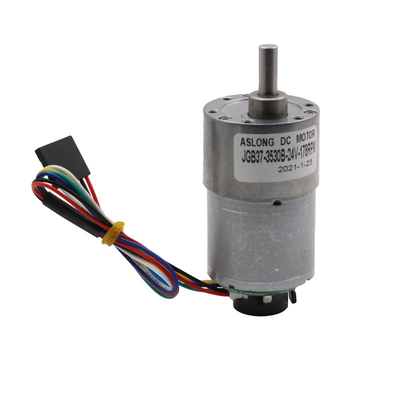

1600rpm Geared Electric Motors JGB37-3530B DC Gear Motor With Encoder
Aslong JGB37-3530B DC gear motor with Encoder dc spur gear motor Reduction Motor Hall Speed Measuring Low Speed Motor
Type: JGB37-3530B
Operating range: 6-24VDC
12V No-load speed per minute:800rpm 500rpm 265rpm 166rpm 80rpm 55rpm 38rpm 30rpm 18rpm 10rpm 6rpm
24V No-load speed per minute:1600rpm 1000rpm 530rpm 333rpm 178rpm 111rpm 76rpm 60rpm 37rpm 20rpm 12rpm
Note: Please note the speed you need in the message to the seller to facilitate our delivery. thank you
Datasheet:
Model | ||||||||||||
JGB37- 3530B | No load | On load | Stall | Speed reducer | ||||||||
Model | Using | voltage | Speed | Current | Speed | Current | Torque | Power | Torque | Current | Redction | Size |
Rangge | Rated | r/min | ma | r/min | ma | kg. cm | W | kg. cm | A | Ratio | mm | |
JGB37- 3530B | 6-24V | 24V | 1600 | 90 | 1280 | 500 | 1 | 3 | 1.7 | 2.5 | 6.25 | 19 |
6-24V | 24V | 1000 | 90 | 800 | 480 | 2 | 3 | 2.8 | 2.5 | 10 | 19 | |
6-24V | 24V | 530 | 90 | 430 | 480 | 3.2 | 3 | 5.3 | 2.5 | 18.8 | 22 | |
6-24V | 24V | 333 | 90 | 266 | 460 | 6 | 3 | 8.4 | 2.5 | 30 | 22 | |
6-24V | 24V | 178 | 90 | 143 | 460 | 9.5 | 3 | 15 | 2.5 | 56 | 24 | |
6-24V | 24V | 111 | 90 | 90 | 450 | 14 | 3 | 25 | 2.5 | 90 | 24 | |
6-24V | 24V | 76 | 90 | 60 | 450 | 18 | 3 | 36 | 2.5 | 131 | 26.5 | |
6-24V | 24V | 60 | 90 | 48 | 450 | 28 | 3 | 47 | 2.5 | 168 | 26.5 | |
6-24V | 24V | 37 | 90 | 30 | 450 | 53 | 3 | Forbidden | 2.5 | 270 | 26.5 | |
6-24V | 24V | 20 | 90 | 19 | 430 | 60 | 3 | Forbidden | 2.5 | 506 | 29 | |
6-24V | 24V | 12 | 90 | 10 | 420 | 60 | 3 | Forbidden | 2.5 | 810 | 29 |
Dimension&Wiring method:
