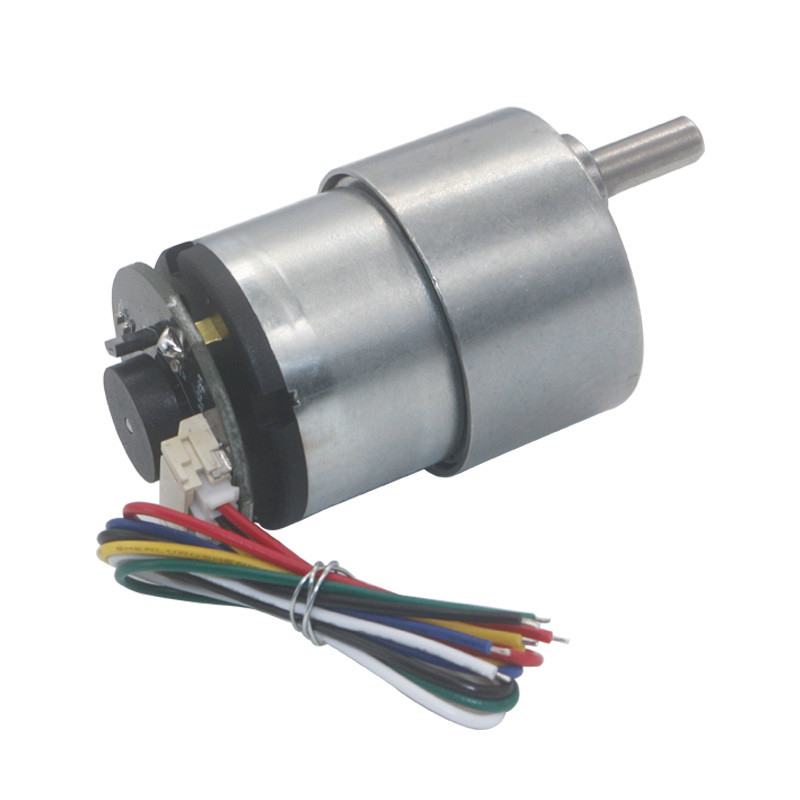

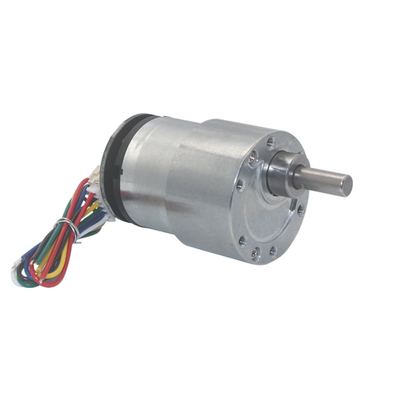

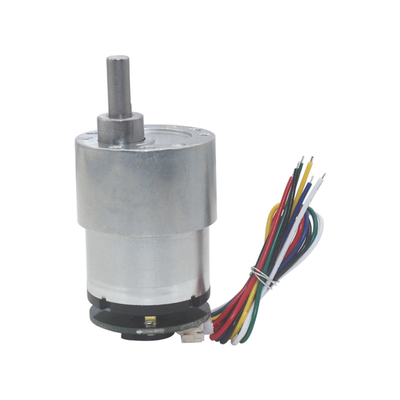

ASLONG JGB37-520B Encoder Geared Motor Industrial DC Geared Motors 960RPM
ASLONG JGB37-520B encoder geared motor industrial DC geared motor A/B phase code plate signal speed measurement
1. Name of the motor : JGB37-520B DC 6V 12V Micro Geared Motor With Encoder And Wheel kit
2. Rated voltage have DC 6V and DC 12V
3. DC 6V ; You can choose the no load speed have :
7rpm/12rpm/20rpm/35rpm/45rpm/70rpm/100rpm/200rpm/300rpm/600rpm/1000rpm
Rated torque between 0.4 To 35 KG.CM; stall torque: between 0.5-35KG.CM, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 6V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
4. DC 12V ; You can choose the no load speed have :
12rpm/20rpm/37rpm/60rpm/76rpm/110rpm/178rpm/333rpm/530rpm/1000rpm/1590rpm
Rated torque between 0.7 To 35 KG.CM; stall torque: between 1-35KG.CM, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
5. Direction of rotation of the motor: CW Or CCW, Support Reversed;
Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected

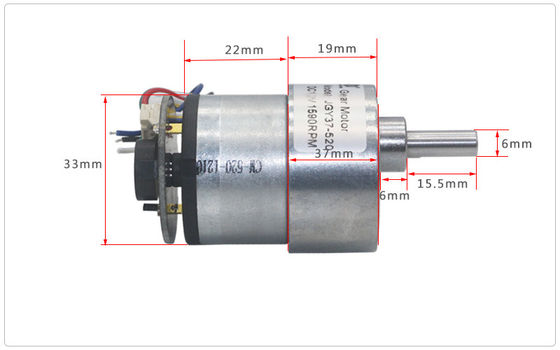

6. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.
7. Gear material: Metal gears make the motor last longer
8. The speed of the motor can be adjusted using the speed controller.
9. The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.
When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.
10. Motor DC power connection is safe; the experiment proves that the motor voltage is lower than 36V without any danger.
11. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Toy Car ; Electric curtains ; Billboard motors ; Household appliances etc.
12. Packaging : 1 piece of the motor with encoder ; 1 piece of the mounting bracket ; 1 piece of the brass coupling ; 1 piece of the toy wheel tire
Hall encoder introduction
1. Outer diameter size: 37mm
2. Hall voltage: DC 5V/3.3V ; The encoder is recommended to connect to 5V, the signal is more stable
3. Line speed : Basic pulse number 11PPR ; The motor rotates one turn and outputs 11 pulses.
4. Gearbox resolution of the motor = 11 pulses * reduction ratio
Line Wiring Method
1. Red line : DC power supply positive pole connected to the motor
(Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected
2. Black wire : The negative power supply required to connect the encoder 3.3V / 5V
(Note: the positive and negative poles cannot be connected incorrectly)
3. Yellow wire : signal feedback line; The motor rotates one turn and outputs 11 signals.
4. Green line : signal feedback line; The motor rotates one turn and outputs 11 signals.
5. Blue line : The positive power supply required to connect the encoder 3.3V / 5V
(Note: the positive and negative poles cannot be connected incorrectly)
6. White wire : Connect the negative DC power supply of the motor
(Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected)
| Voltage |
No Load |
Load Torque |
Stall |
Reducer |
Weight |
| Workab le |
Rated |
Speed |
Current |
Speed |
Current |
Torque |
Output |
Torque |
Current |
Ratio |
Size |
unit |
| Range |
Volt.V |
rpm |
ma |
rpm |
ma |
kg.cm |
W |
kg.cm |
A |
01:00 |
mm |
g |
| 6-15V |
12 |
1600 |
120 |
1200 |
400 |
0.1 |
3 |
0.5 |
1 |
06:00 |
19 |
175 |
| 6-15V |
12 |
1000 |
120 |
800 |
400 |
0.38 |
3 |
1.52 |
1 |
10 |
19 |
177 |
| 6-15V |
12 |
531 |
120 |
424 |
350 |
0.7 |
3 |
2.8 |
1 |
18.8 |
22 |
180 |
| 6-15V |
12 |
333 |
120 |
266 |
350 |
1.14 |
3 |
4.5 |
1 |
30 |
22 |
180 |
| 6-15V |
12 |
178 |
120 |
412 |
350 |
2.1 |
3 |
8.4 |
1 |
56 |
24 |
188 |
| 6-15V |
12 |
111 |
120 |
88 |
350 |
3.4 |
3 |
13 |
1 |
90 |
24 |
188 |
| 6-15V |
12 |
76 |
120 |
60 |
350 |
5 |
3 |
20 |
1 |
131 |
26.5 |
190 |
| 6-15V |
12 |
59 |
120 |
47 |
300 |
6.3 |
3 |
25 |
1 |
168 |
26.5 |
195 |
| 6-15V |
12 |
37 |
120 |
29 |
300 |
10 |
3 |
40 |
1 |
270 |
26.5 |
194 |
| 6-15V |
12 |
20 |
120 |
16 |
300 |
19 |
3 |
avoid Ban |
1 |
506 |
29 |
200 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
| 6-15V |
12 |
12 |
120 |
9 |
300 |
30 |
3 |
avoid Ban |
1 |
810 |
29 |
200 |
|
The following is a description of the quality materials and structures of this motor.
1. All metal gears ensure the life of the motor
2. High quality carbon brush, wear-resistant, prolongs the service life of the motor
3. The wire in the rotor is made of pure copper, which is resistant to high temperature, strong in electrical conductivity and wear-resistant, and promotes smooth rotation of the motor.
4. High-strength magnetic tile, strong power, high torque of the motor
