Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB

Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB
Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB

Large Image :  Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE,RoHs
Model Number: JGB37-520TB
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: negeotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8work days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 5000 Pieces Per day

Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB

Description
Type: Gear Motor Voltage(v): 6V/12V/24V
Speed(rpm): 7-960 RPM Size: 7MM
Usage: Home Appliance, Car, Electric Bicycle, Boat, Fan
High Light:

960 RPM 12v Dc Gear Motor

,

JGB37-520TB 12v Dc Gear Motor

,

JGB37-520TB low rpm gear motor



Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB



ASLONG JGB37-520TB DC motor motor 6V 12V geared motor miniature large torque small motor 12v dc motor for drill machine

Model: JGB37-520B
Working voltage: 6-12V

6V  no-load speed per minute: 800rpm 500rpm 265rpm 166rpm 89rpm 55rpm 38rpm 29rpm 18rpm 10rpm 6rpm
12V  no-load speed per minute: 1600 rpm 1000 rpm 531 rpm 178 rpm 111 rpm 76 rpm 59 rpm 37 rpm 20 rpm 12 rpm
Note:  Please note the required no-load speed to facilitate our delivery, thank you!



Voltage/rpm/shaft can be customized , welcome to consult



Datasheet:

Model: JGB37-520TB
Voltage No load Load torque Blocking Stall Reducer Weight
Scope Rated Rotation speed Current Rated speed Current Torque Power Taque Current Reduction ratio Size Weight
Workable Raed speed Current Speed Cur re nt Torque Output     Raio   Unit
Range tolt.V rpm ma rpm ma kg.cm w kg.cm A 100 m m 9
6-12V 6V 800 50 560 200 0.06 1 0.3 1 6.25 19 144
6-12V 6V 500 50 300 200 31 1 0.4 1 10 19 144
6-12V 6V 265 50 158 200 0.18 1 0.72 1 188 22 150
6-12V 6V 166 50 116 180 0.3 1 1.2 1 30 22 150
6-12V 6V 89 50 62 180 0.56 1 22 1 56 24 158
6-12V 6V 55 50 38 180 0.9 1 3.6 1 90 24 158
6-12V 6V 38 50 26 170 1.3 1 52 1 131 26.5 160
6-12V 6V 29 50 20 160 168 1 67 1 168 26.5 164
6-12V 6V 18 50 12 160 2.7 1 10 1 270 26.5 164
6-12V 6V 10 50 7 160 5 1 20 1 506 29 170
6-12V 6V 6 50 4 150 8 1 32 1 810 29 170

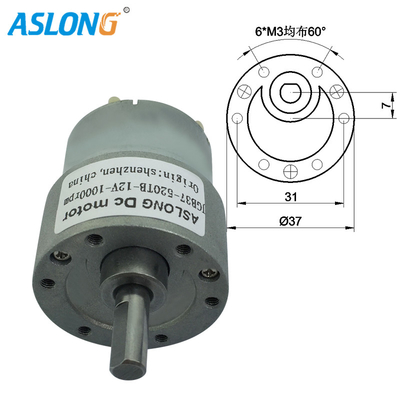

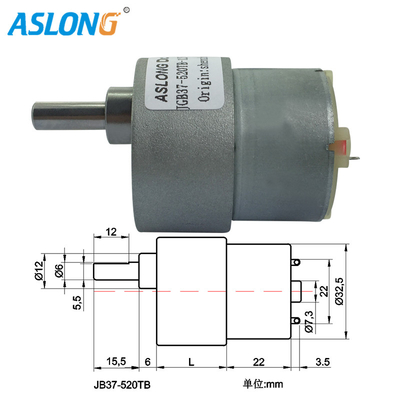

Dimension:



Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB 0

Drill Machine Brushed 12v Dc Gear Motor 960 RPM JGB37-520TB 1
