High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot

High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot
High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot

Large Image :  High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE,RoHs
Model Number: JGB37-3530
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 5000 Pieces Per day

High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot

Description
Product Name: JGB37-3530 Type: Brushed Motor
Speed(rpm): 7-960RPM Voltage(v): 6V/12V/24V
Size: 37MM Efficiency: IE 2
High Light:

ODM Electric DC Gear Motor

,

7RPM Electric DC Gear Motor

,

7RPM low rpm gear motor

High Torque 37mm Brushed Electric DC Gear Motor Low Rpm For Robot

High Torque 37mm Brushed metal gear motor 6v 12v dc gear motor low rpm JGB37-3530 Pure for robot




Datasheet:

Model:JGB37-3530     datasheet
Voltage   No Load   Load Torque       Stall   Reducer   Weight

Voltage Rated Speed Current Speed Current Torque Output Torque Current Ratio Size unit
Range Volt.V rpm ma rpm ma kg.cm W kg.cm A 1:00 mm g
6-15V 12 1600 120 1120 400 0.3 4.8 1 1.2 6.25 19 177
6-15V 12 1000 120 800 400 0.38 4.8 1.52 1.2 10 19 177
6-15V 12 531 120 424 400 0.7 4.8 2.8 1.2 18.8 22 180
6-15V 12 333 120 266 400 1.14 4.8 4.5 1.2 30 22 180
6-15V 12 178 120 412 400 2.1 4.8 8.4 1.2 56 24 188
6-15V 12 111 120 88 400 3.4 4.8 13 1.2 90 24 188
6-15V 12 76 120 60 400 5 4.8 20 1.2 131 26.5 195
6-15V 12 59 120 47 400 6.3 4.8 25 1.2 168 26.5 195
6-15V 12 37 120 29 400 10 4.8 40 1.2 270 26.5 194
6-15V 12 20 120 16 400 19 4.8 Ban 1.2 506 29 200
6-15V 12 12 120 9 400 30 4.8 Ban 1.2 810 29 200
12-30v 24 960 50 672 100 0.2 2.5 1 0.9 6.25 19 177
12-30V 24 600 50 480 100 0.29 2.5 1.16 0.9 10 19 177
12-30V 24 319 50 255 100 0.54 2.5 2.1 0.9 18.8 22 180
12-30V 24 200 50 160 100 1.1 2.5 4.4 0.9 30 22 180
12-30V 24 107 50 85 100 1.6 2.5 6.4 0.9 56 24 188
12-30V 24 66 50 52 100 2.61 2.5 10 0.9 90 24 188
12-30V 24 45 50 36 100 3.7 2.5 14.8 0.9 131 26.5 188
12-30V 24 35 50 28 100 4.8 2.5 19 0.9 168 26.5 195
12-30V 24 22 50 18 100 7.8 2.5 31 0.9 270 26.5 194
12-30V 24 12 50 10 100 14 2.5 Ban 0.9 506 29 200
12-30V 24 7 50 5.6 100 23 2.5 Ban 0.9 810 29 200

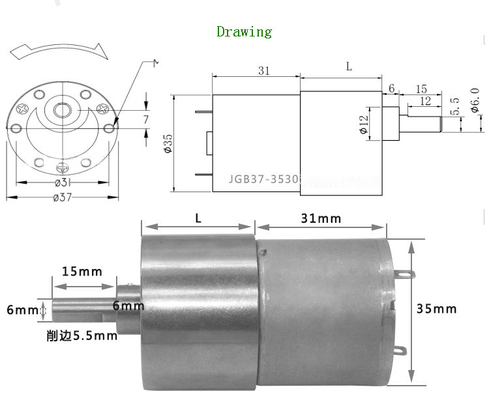

Dimension:



High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot 0

High Torque 37mm Brushed Electric DC Gear Motor Low Rpm 7RPM For Robot 1




Shenzhen Jinshunlaite Motor Co., Ltd. is a manufacturer of dc gear motor,bldc motor,worm gear motor,micro motor,pwm motor etc, with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

FAQ
1)What's the price? We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
2)What's the MOQ? We try to meet every client's requests and don't want to disappoint our clients. So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
3)What's the delivery time? At the first we have an schedule,the earlier you place order,the fater we finish the production. In the slack season,we can make sure the delivery time is by one month. In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.
4)Can you send some samples before the order? Yes of course,we must send the sample to confirm the quality with you first. UPS,TNT,FEDEX or DHL are all available.
5)Can you make our logo on the products? Certainly,logo is easy as most of our products are customizable. So logo in usually logo is necessary.It can be labeled on the motors.
6)What's the payment term? For small amount,we accept 100% payment via paypal. For large amount,we accept 30% telegraphic transfer(TT) as the deposit. And the rest must be paid before shipping.
7)How to deliver the goods? we will deliver via Express such as UPS,FEDEX,DHL,TNT etc. It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.
8)Can you make our logo on the products? Certainly,logo is easy as most of our products are customizable. So logo in usually logo is necessary.It can be printed,emboridered,embossed/jacquard.
9)What's the payment term? For small amount,we accept 100% payment via Western Union. For large amount,we accept 30% telegraphic transfer(TT) as the deposit. And the rest must be paid before shipping.
10)How to deliver the goods? If goods quantity is small,we will deliver via Express such as UPS,FEDEX,DHL,TNT etc. It is fast and clients don't need to pay the custom charge. If goods quantity is large,we will ship by sea.It will be very economical.
11)Does your company supply to any famous hotels? As a leading manufactuer of hotel products,we have many famous hotel and resort clients. Such as InterContinental Hotels Group,Marriott Hotel,The Ritz Carlton Hotel and son on. If you need some samples of them,we can send out.
12)Any other questions kindly chat with our sales,they will do the best to serve you.
