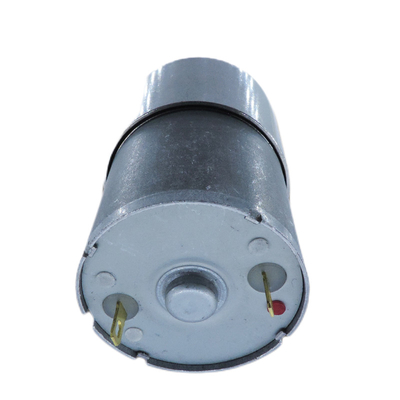

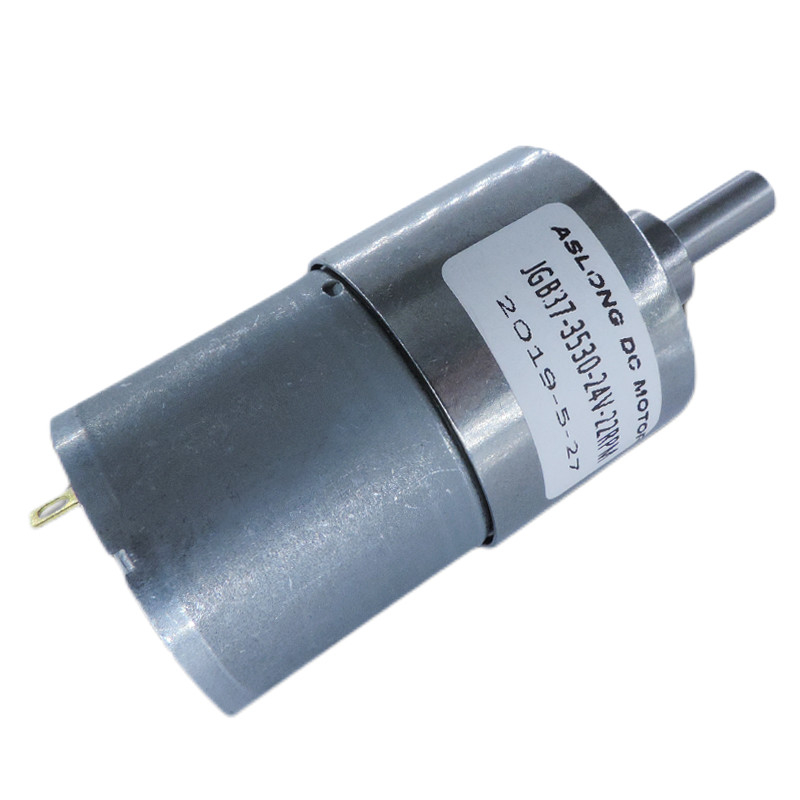

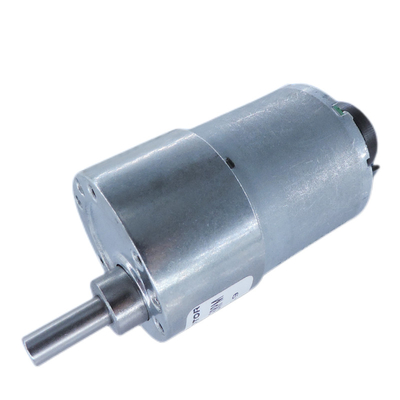

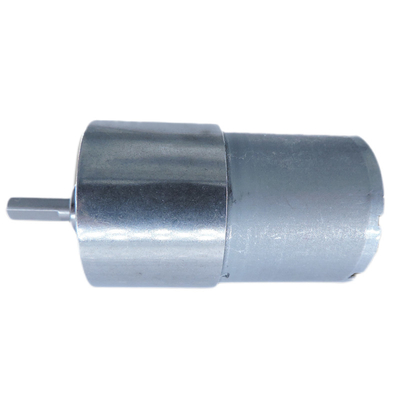

Product Details:
|
| Model Number: | JGB37-3530 | Type: | GEAR MOTOR |
|---|---|---|---|
| Torque: | 0.3-30kg.cm | Construction: | Permanent Magnet |
| Protect Feature: | Explosion-proof | Speed(RPM): | 12-1600r/min |
| Continuous Current(A): | 0.4a | Usage: | Boat, Home Appliance, Car, Electric Bicycle, Fan |
| High Light: | JGB37 3530 Electric DC Gear Motor,300Rpm Electric DC Gear Motor,JGB37 3530 electric gear motor |
||
| JGB37-3530 Voltage |
No Load | Load Torque | Stall | Reducer | Weight | |||||||
| Workable | Rated | Speed | Current | Speed | Current | Torque | Output | Torque | Current | Ratio | Size | unit |
| Range | Volt.V | rpm | ma | rpm | ma | kg.cm | W | kg.cm | A | 1:00 | mm | g |
| 6-15V | 12 | 1600 | 120 | 1120 | 400 | 0.3 | 4.8 | 1 | 1.2 | 6.25 | 19 | 177 |
| 6-15V | 12 | 1000 | 120 | 800 | 400 | 0.38 | 4.8 | 1.52 | 1.2 | 10 | 19 | 177 |
| 6-15V | 12 | 531 | 120 | 424 | 400 | 0.7 | 4.8 | 2.8 | 1.2 | 18.8 | 22 | 180 |
| 6-15V | 12 | 333 | 120 | 266 | 400 | 1.14 | 4.8 | 4.5 | 1.2 | 30 | 22 | 180 |
| 6-15V | 12 | 178 | 120 | 412 | 400 | 2.1 | 4.8 | 8.4 | 1.2 | 56 | 24 | 188 |
| 6-15V | 12 | 111 | 120 | 88 | 400 | 3.4 | 4.8 | 13 | 1.2 | 90 | 24 | 188 |
| 6-15V | 12 | 76 | 120 | 60 | 400 | 5 | 4.8 | 20 | 1.2 | 131 | 26.5 | 195 |
| 6-15V | 12 | 59 | 120 | 47 | 400 | 6.3 | 4.8 | 25 | 1.2 | 168 | 26.5 | 195 |
| 6-15V | 12 | 37 | 120 | 29 | 400 | 10 | 4.8 | 40 | 1.2 | 270 | 26.5 | 194 |
| 6-15V | 12 | 20 | 120 | 16 | 400 | 19 | 4.8 | prohibit | 1.2 | 506 | 29 | 200 |
| 6-15V | 12 | 12 | 120 | 9 | 400 | 30 | 4.8 | prohibit | 1.2 | 810 | 29 | 200 |
| 12-30v | 24 | 960 | 50 | 672 | 100 | 0.2 | 2.5 | 1 | 0.9 | 6.25 | 19 | 177 |
| 12-30V | 24 | 600 | 50 | 480 | 100 | 0.29 | 2.5 | 1.16 | 0.9 | 10 | 19 | 177 |
| 12-30V | 24 | 319 | 50 | 255 | 100 | 0.54 | 2.5 | 2.1 | 0.9 | 18.8 | 22 | 180 |
| 12-30V | 24 | 200 | 50 | 160 | 100 | 1.1 | 2.5 | 4.4 | 0.9 | 30 | 22 | 180 |
| 12-30V | 24 | 107 | 50 | 85 | 100 | 1.6 | 2.5 | 6.4 | 0.9 | 56 | 24 | 188 |
| 12-30V | 24 | 66 | 50 | 52 | 100 | 2.61 | 2.5 | 10 | 0.9 | 90 | 24 | 188 |
| 12-30V | 24 | 45 | 50 | 36 | 100 | 3.7 | 2.5 | 14.8 | 0.9 | 131 | 26.5 | |
| 12-30V | 24 | 35 | 50 | 28 | 100 | 4.8 | 2.5 | 19 | 0.9 | 168 | 26.5 | 195 |
| 12-30V | 24 | 22 | 50 | 18 | 100 | 7.8 | 2.5 | 31 | 0.9 | 270 | 26.5 | 194 |
| 12-30V | 24 | 12 | 50 | 10 | 100 | 14 | 2.5 | prohibit | 0.9 | 506 | 29 | 200 |
| 12-30V | 24 | 7 | 50 | 5.6 | 100 | 23 | 2.5 | prohibit | 0.9 | 810 | 29 | 200 |
Dimension&Descripition:
