Product Details:
|
| Usage: | Car,Electric Bicycle | Commutation: | Brush |
|---|---|---|---|
| Speed(rpm): | 5RPM-1500RPM | Type: | Gear Motor,mini 12v Dc Gear Motor |
| Protect Feature: | Totally Enclosed | Torque: | 0.2kg.cm~5kg.cm |
| Efficiency: | IE 1 | Voltage(v): | 12-24V |
| Product Name: | 12V Strong Magnetism DC Gear Motor With Eccentric Shaft | Material: | Stainless Steel |
| Shaft Diameter: | 8MM | ||
| High Light: | 1600RPM Electric DC Gear Motor,JGA25 370 Electric DC Gear Motor,JGA25 370 High Torque Gear Motor |
||

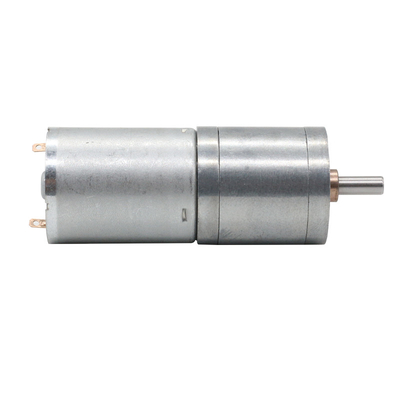

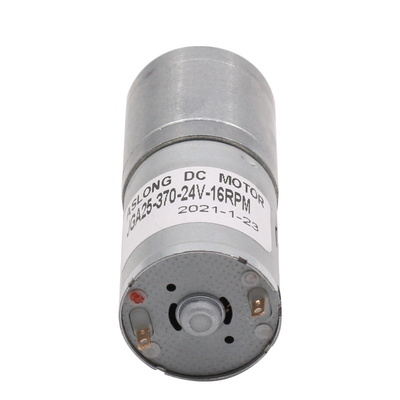

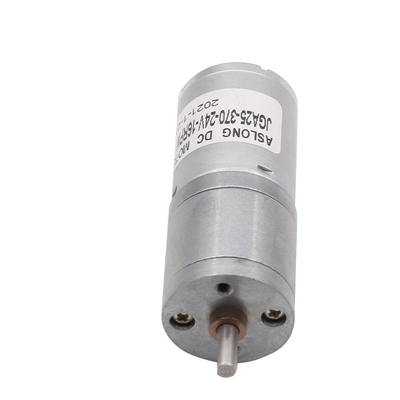

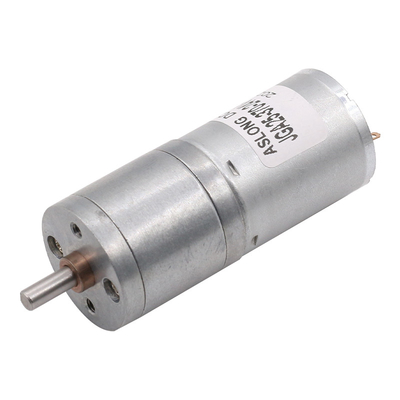

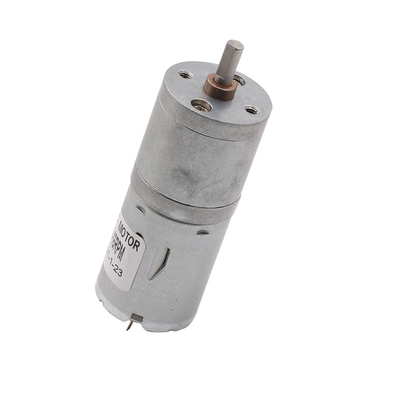

25mm 1600RPM Electric DC Gear Motor High Torque High Rpm JGA25 370
25mm Diameter 1600RPM Low Noise Long Life JGA25-370 High Torque High Rpm 3V 6V 12v 24V Dc Geared Motor 12V For Robot Car
Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Spur gearbox
3. Voltage: 3V, 4.5V, 5V, 6V, 7.2V, 9V, 12V, 24V DC
4. Speed: 5RPM-1500RPM
5. Torque: 0.2kg.cm~5kg.cm
6. Shaft dia: 4mm
7. Direction: CW/CCW
8. Typical application: Electric lock system, Valve, Vending machine, Pumps, Beauty apparatus, Vending machinie, DIY robot toys, Paper shredders, Boat motors, Power tools
9. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders
| Model | No load | Rated | Stall | Weight |
Length |
|||||
| Rated voltage | Speed | Current | Speed | Current | Torque | Torque | Current | |||
| V | RPM | A | RPM | A | KG. CI | KG. CM | A | g | mm | |
| JGA25-37O-4. 4K | 6 | 1360 | 0.1 | 1046 | 0.5 | 0.07 | 0.4 | 2.6 | 83 | 18 |
| JGA25-370-9. 6K | 6 | 620 | 0.1 | 477 | 0.5 | 0.16 | 0.9 | 2.6 | 83 | 17.5 |
| JGA25-370-21.3K | 6 | 280 | 0.1 | 215 | 0.5 | 0.35 | 2 | 2.6 | 86 | 19 |
| JGA25-370-35. 5K | 6 | 170 | 0.1 | 131 | 0.5 | 0.6 | 3.3 | 2.6 | 88 | 21 |
| JGA25-370-46. 8K | 6 | 130 | 0.1 | 100 | 0.5 | 0.8 | 4.4 | 2.6 | 88 | 21 |
| JGA25-370-78K | 6 | 77 | 0.1 | 59 | 0.5 | 1.3 | 5.5 | 2.6 | 90 | 23 |
| JGA25-370-103K | 6 | 60 | 0.1 | 46 | 0.5 | 1.7 | 7.3 | 2.6 | 90 | 23 |
| JGA25-370-130K | 6 | 46 | 0.1 | 35 | 0.5 | 2.2 | 9.1 | 2.6 | 89 | 25 |
| JGA25-370-171K | 6 | 35 | 0.1 | 27 | 0.5 | 2.9 | Ban stall | 89 | 25 | |
| JCA25-370-226K | 6 | 26 | 0.1 | 20 | 0.5 | 3.8 | 89 | 25 | ||
| JGA25-37O-377K | 6 | 16 | 0.1 | 12 | 0.5 | 6.3 | 91 | 27 | ||
| JGA25-370-500K | 6 | 12 | 0.1 | 9 | 0.5 | 8.3 | 91 | 27 | ||
| Model | No load | Rated | Stall |
Weight |
L(size) | |||||
| Rated voltage | Speed | Current | Speed | Current | Tcxque | Torque | Current | |||
| V | RPM | A | RPM | A | KG. CM | KG. CM | A | g | MM | |
| JGA25-370-4. 4K | 12 | 1360 | 0.07 | 1046 | 0.3 | 0.1 | 0.4 | 1.8 | 83 | 18 |
| JCA25-37O-9. 6K | 12 | 620 | 0.07 | 477 | 0.3 | 0.2 | 0.9 | 1.8 | 83 | 17.5 |
| JCA25-370-21. 3K | 12 | 280 | 0.07 | 215 | 0.3 | 0.4 | 2 | 1.8 | 86 | 19 |
| JGA25-370-35. 5K | 12 | 170 | 0.07 | 131 | 0.3 | 0.69 | 3.3 | 1.8 | 88 | 21 |
| JGA25-370-46. 8K | 12 | 130 | 0.07 | 100 | 0.3 | 0.9 | 4.4 | 1.8 | 88 | 21 |
| JGA25-370-78K | 12 | 77 | 0.07 | 59 | 0.3 | 1.5 | 5.5 | 1.8 | 90 | 23 |
| JCA25-370-103K | 12 | 60 | 0.07 | 46 | 0.3 | 2 | 7.3 | 1.8 | 90 | 23 |
| JGA25-370-130K | 12 | 46 | 0.07 | 35 | 0.3 | 2.5 | 9.2 | 1.8 | 89 | 25 |
| JCA25-370-171K | 12 | 35 | 0.07 | 27 | 0.3 | 3.3 | Ban stall | 89 | 25 | |
| JCA25-37O-226K | 12 | 26 | 0.07 | 20 | 0.3 | 4.4 | 89 | 25 | ||
| JCA25-37O-377K | 12 | 16 | 0.07 | 12 | 0.3 | 7.3 | 91 | 27 | ||
| JGA25-370-500K | 12 | 12 | 0.07 | 9 | 0.3 | 9.7 | 91 | 27 | ||
| Model | NoloX | R*d | Stall |
Weight |
Lsize | |||||
| Rated voltage | Speed | Current | Speed | Current | Tcxque | Torque | Current | |||
| V | RPM | A | RPM | A | KG. CI | KG. CM | A | g | MM | |
| JCA25-370-4. 4K | 24 | 1360 | 0.04 | 1046 | 0.16 | 0.1 | 0.4 | 0.6 | 83 | 18 |
| JCA25-37O-9. 6K | 24 | 620 | 0.04 | 477 | 0.16 | 0.2 | 0.9 | 0.6 | 83 | 17.5 |
| JGA25-370-21.3K | 24 | 280 | 0.04 | 215 | 0.16 | 0.4 | 2 | 0.6 | 86 | 19 |
| JCA25-370-35. 5K | 24 | 170 | 0.04 | 131 | 0.16 | 0.69 | 3.3 | 0.6 | 88 | 21 |
| JGA25-370-46. 8K | 24 | 130 | 0.04 | 100 | 0.16 | 0.9 | 4.4 | 0.6 | 88 | 21 |
| JGA25-370-78K | 24 | 77 | 0.04 | 59 | 0.16 | 1.5 | 5.5 | 0.6 | 90 | 23 |
| JCA25-370-103K | 24 | 60 | 0.04 | 46 | 0.16 | 2 | 7.3 | 0.6 | 90 | 23 |
| JCA25-370-130K | 24 | 46 | 0.04 | 35 | 0.16 | 2.5 | 9.2 | 0.6 | 89 | 25 |
| JCA25-37O-171K | 24 | 35 | 0.04 | 27 | 0.16 | 3.3 | Ban stall , | 89 | 25 | |
| JGA25-37O-226K | 24 | 26 | 0.04 | 20 | 0.16 | 4.4 | 89 | 25 | ||
| JGA25-37O-377K | 24 | 16 | 0.04 | 12 | 0.16 | 7.3 | 91 | 27 | ||
| JGA25-370-500K | 24 | 12 | 0.04 | 9 | 0.16 | 9.7 | 91 | 27 | ||
