12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor

12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor
12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor 12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor 12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor 12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor 12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor 12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor 12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor

Large Image :  12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE,RoHs
Model Number: PG32-3157
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: negeotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 5000 Pieces Per day

12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor

Description
Product Name: PG32-3157 Type: Brushed Motor
Voltage(v): 12v & 24v Speed(rpm): 17-2386rpm
Size: 37MM Usage: Electric Bicycle,,Home Appliance,Boat, Car,Fan
High Light:

Tubular Electric DC Motor

,

2386rpm Planetary Geared Motor

,

2386rpm Electric DC Gear Motor

32-31ZY High Torque Low Noise 12v 24v DC Electric Planetary Gear Motor Adjust Speed Reversed 17-2386rpm



High quality 32mm Planetary gearbox reducer 12v tubular electric dc motor 3157 planetary geared reductor motor smart furnitre



Introduction of the motor:

(1) Name of the motor: 32mm Planetary dc geared motor



(2) What is a planetary geared motor?

Planetary geared motor is a new type of geared motor with wide versatility.



The motor has small size, low noise, large output torque, stable operation and long life.



The Life of the planetary gear motor is 3 times the ordinary gear motor (But the premise is that the load of your project does not exceed the torque of the motor)



(3) Rated voltage : DC 12V Or DC 24V



(4) No load speed have :



11 / 16 / 22 / 37 / 58 / 98 / 160 / 296 / 571 / 1538 RPM / Min



(5) About the rated load torque of the motor: the no-load speed of the motor is different, the torque will also be different, the lower the speed you choose this motor, the greater the torque of the motor;



In short, the slower the motor spins, the heavier the load it can drive, and the faster the motor spins, the lighter the load it can drive.



Some people will have a doubt. If the maximum speed of this motor is purchased, such as 1538rpm, if we reduce the speed of the motor from 1538rpm to 11rpm, when the motor is running at 11rpm, can the torque of the motor reach 95KG?



This is impossible. When the speed of the motor is adjusted, the torque of the motor will also decrease as the speed decreases. For example, the speed of the motor you bought is 1538rpm, and the torque of the motor is 1KG.CM. When you reduce the speed of the motor, the torque of the motor will be lower than 1KG. If the speed of the motor is greatly reduced, the torque of the motor will also be greatly reduced.



If you buy the lowest speed of this motor, such as 11rpm, the torque of the motor is 95KG, if you reduce the speed of the motor from 11rpm to 1rpm, the torque of the motor will also be lower than 95KG.



So you need to consider whether the final torque of the motor can reach the load of your project after the motor is decelerated. If not, you need to consider choosing other lower speeds or other motors.



You can contact us about the principle of torque change with speed, we can help you avoid buying mistakes, thanks!



(6) Direction of rotation of the motor: CW Or CCW ; Support Reversed



(7) Gear material: Metal gears make the motor last longer



(8) The speed of the motor can be adjusted using the speed controller. If you also need a speed controller, you can contact us and we will recommend the most suitable controller for you.



For example, the speed of the motor is 11rpm, you can adjust speed from 0rpm to 11rpm or 11rpm to 0rpm through the speed controller,that is, the speed you choose to buy is the adjustable range Maximum speed.



However, if you use a speed controller to control the rotation speed of the motor, the torque of the motor will decrease as the speed decreases. If the torque of the motor is lower than the load of your project, the motor will be damaged, you need to pay special attention.



(9) This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.



For example, Smart Robot ; Smart Door Lock ; DIY tank etc.



Drawing:



12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor 0

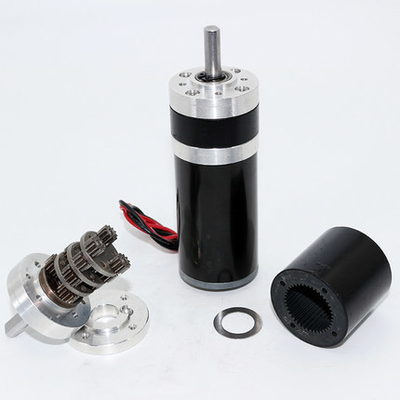

Details of this motor:

The following is a description of the quality materials and structures of this motor.

① Double ball bearings can help the motor run stably and prolong its life
② The upper cover of the gear box
③ Position the retaining ring to fix the output shaft and offset the radial force
④ Planetary gear frame
⑤ The output shaft of the motor is available with a shaft diameter of 6mm and 8mm
⑥ Positioning retaining ring, fixing the gear position, making the internal gear smoother and more wear-resistant
⑦ Planetary gear, using thickened metal gear, high strength, reduce noise, make the motor run stably
⑧ DC brush high-speed motor
⑨ Positioning retaining ring can effectively reduce friction and increase the service life of the motor
⑩ Gearbox outer wall



12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor 1



Datasheet



12v Tubular Electric DC Motor , Smart Furnitre Reductor Planetary Geared Motor 2





FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
