Product Details:
|
| Usage: | For DIY | Commutation: | Brushed |
|---|---|---|---|
| Speed(rpm): | 6-1600rpm | Type: | DC Gear Motor With Encoder |
| Efficiency: | IE 1 | Construction: | Permanent Magnet |
| Material: | Stainless Steel | Voltage: | 12V/24V |
| High Light: | 37mm High Torque Gear Motor,Eccentric Shaft High Torque Gear Motor,Rosh Small DC Gear Motors |
||

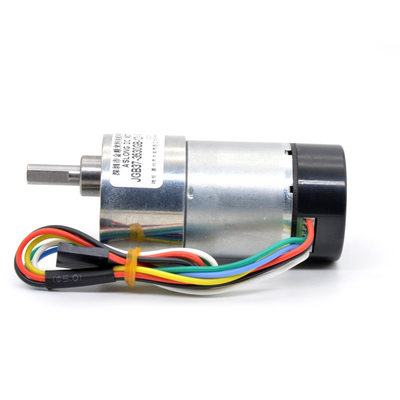

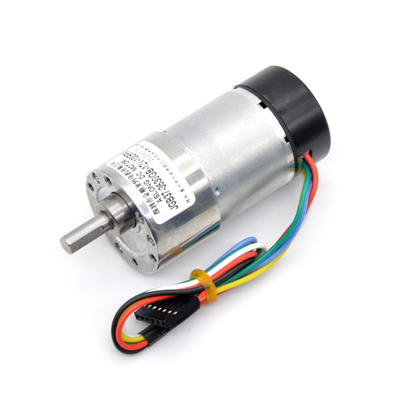

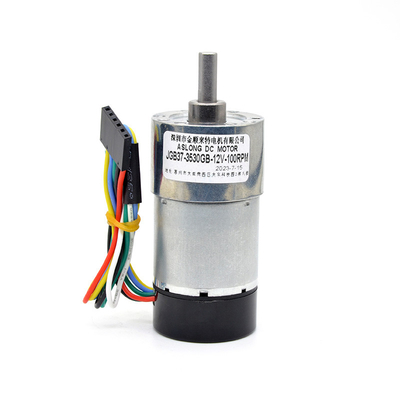

37mm 12v 24v 1600 Rpm High Torque Dc Gear Motor With Encoder
37mm Diameter All Metal Gear Box 12v 24v DC Gear Motor with Encoder 7RPM to 1600 rpm Gearmotor motop High Torque Eccentric Shaft
Introduction of the motor
1. Name of the motor : DC Gear Motor 12V 24V With Encoder &protective cover
2. Rated voltage have DC 12V and DC 24V
3. DC 12V ; You can choose the no load speed have :
6rpm/10rpm/18.5rpm/30rpm/38rpm/56rpm/89rpm/167rpm/267rpm/500rpm/800rpm
Rated torque between 0.32 To 41 KG.CM; stall torque: between 1.16-50KG.CM, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
4. DC 24V ; You can choose the no load speed have :
12rpm/20rpm/37rpm/60rpm/76rpm/111rpm/178rpm/333rpm/533rpm/1000rpm/1600rpm
Rated torque between 0.4 To 50 KG.CM; stall torque: between 1.7-60KG.CM, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
5. Direction of rotation of the motor: CW Or CCW, Support Reversed;
Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected

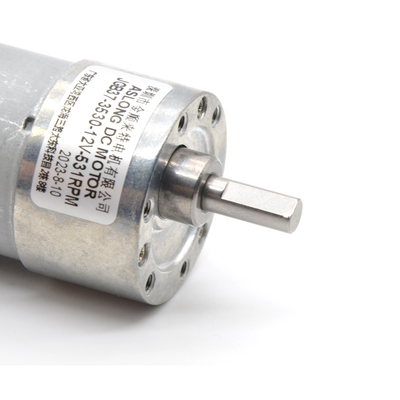

6. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.
7. Gear material: Metal gears make the motor last longer
8. The speed of the motor can be adjusted using the speed controller.
9. The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.
When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.
10. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Toy Car ; Electric curtains ; Billboard motors ; Household appliances etc.

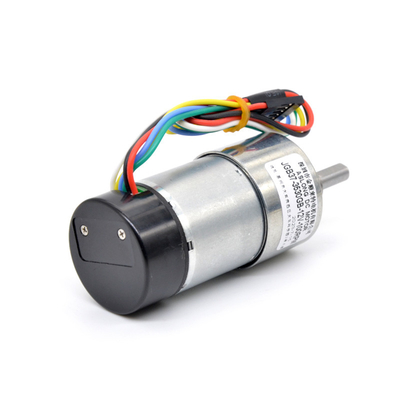

Encoder introduction
1. Outstanding features: This motor witn encoder; the motor has a speed measuring function ;
2. The encoder has high performance and is a two-channel and three-channel incremental magnetic encoder. It can adapt to harsh environments. Each magnetic encoder contains a magnetic grid and magnetic sensitivity to detect the motor. The quadrature phase angle of the two channels of the output is 90 degree Celsius square wave, the motor has two signal lines, the motor rotates one turn, each output 16 square waves
The following is a schematic diagram of encoder connection ; circuit output ; square wave output
Wiring method
Red line : DC power supply positive pole connected to the motor
Black wire : DC power supply negative pole connected to the motor
Green line : Sensor ground
Blue line : Sensor power supply
Yellow wire : Signal A output point
White line : Signal B output point
Structures :
1. Use all metal gears
2. Pure copper coil with super high conductivity and high temperature resistance
3. The motor has an encoder, you can measure the number of revolutions
4. Using high-quality gears, the gears are heat treated and more wear-resistant, making the motor last longer.
5. The motor of this link does not have a protective cover. If you need a motor with a protective cover, please contact us before purchasing.
Motor parameter table:
Your project load should not exceed rated torque of the motor, otherwise the life of the motor will be reduced
The parameters in the table below are the parameters for the motor connection rated voltage 12v / 24v
If the motor is connected to a non-rated voltage input, all parameters of the motor will change.
| JGB37-3530 Rate Volt DC12V | |||||||||||
| Reduction Ratio | 6.25 | 10 | 18.8 | 30 | 56 | 90 | 131 | 168 | 270 | 506 | 810 |
| No load Current (ma) | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 |
| No load RPM | 1600 | 1000 | S31 | 333 | 178 | 111 | 76 | S9 | 37 | 20 | 12 |
| Load torque (Kg,cm) | 0.3 | 0.38 | 0.7 | 1.14 | 2.1 | 3.4 | 5 | 6.3 | 10 | 19 | 30 |
| Load RPM | 1120 | 800 | 424 | 266 | 412 | 88 | 60 | 47 | 29 | 16 | 9 |
| Load Current (ma) | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 |
| Max Torque (Kg.cm) | 1 | 1.S2 | 2.8 | 4.5 | 8.4 | 13 | 20 | 25 | Max 40KG | ||
| Gear box length (rrm) | 19 | 19 | 22 | 22 | 24 | 24 | 26.5 | 26.5 | 26.5 | 29 | 29 |
| JGB37-3530 Rate Volt DC24V | |||||||||||
| Reduction Ratio | 6.25 | 10 | 18.8 | 30 | 56 | 90 | 131 | 168 | 270 | 506 | 810 |
| No load Current (ma) | <S0 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <S0 |
| No load RPM | 960 | 600 | 319 | 200 | 107 | 66 | 45 | 35 | 22 | 12 | 7 |
| Load torque (Kg,cm) | 0.2 | 0.29 | 0.54 | 1.1 | 1.6 | 2.61 | 3.7 | 4.8 | 7.8 | 14 | 23 |
| Load RPM | 672 | 480 | 255 | 160 | 85 | 52 | 36 | 28 | 18 | 10 | 5.6 |
| Load Current (ma) | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 |
| Max Torque (Kg.cm) | 1 | 1.16 | 2.1 | 4.4 | 6.4 | 10 | 14.8 | 19 | Max 31KG | ||
| Gearbox length (mm) | 19 | 19 | 22 | 22 | 24 | 24 | 26.5 | 26.5 | 26.5 | 29 | 29 |
| You can buy the JGB37-3530 motor with encoder | |
| If you just want to have the seperate the motor ,you can choose the motor JGB37-3530 only. | |
| We also offer the motor 3530C |
