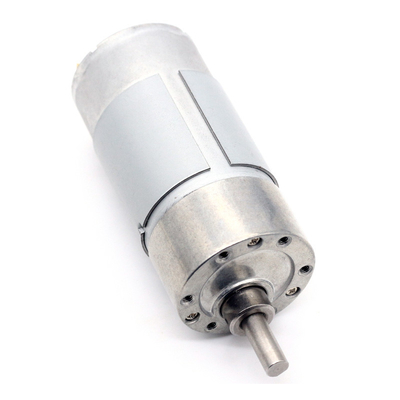

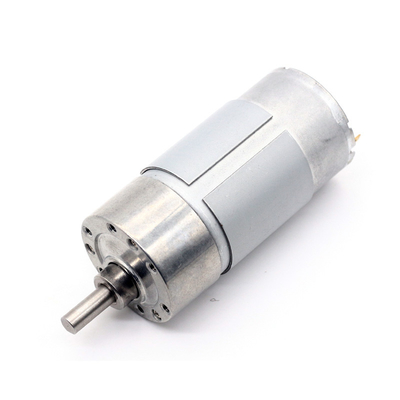

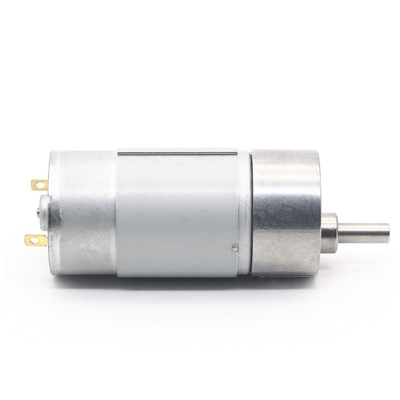

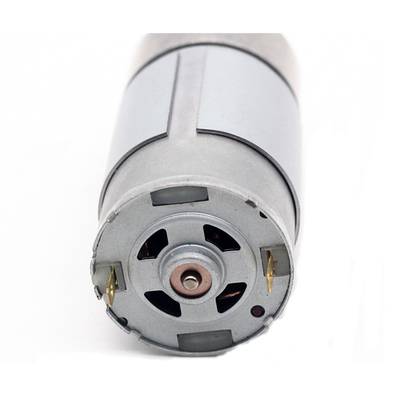

JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm Permanent Magnet

JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm Permanent Magnet
JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm Permanent Magnet JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm Permanent Magnet JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm Permanent Magnet JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm Permanent Magnet

Large Image :  JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm Permanent Magnet

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGB37-555
Payment & Shipping Terms:
Minimum Order Quantity: 100Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 Pieces Per Day

JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm Permanent Magnet

Description
Type: High Torque Micro Motor Usage: Home Appliance, Car, Boat,Electric Bicycle, Fan
Speed(rpm): 5-650rpm Torque: 0.3-3kg.cm
Voltage(v): 12v Weight: 19g
Size: 37mm
High Light:

JGB37-555 High Torque Dc Motor

,

650rpm 24v High Torque Dc Motor

,

650rpm 12 Volt Dc Motor

JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm Permanent Magnet



JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm 37mm Permanent Magnet Brush







High Torque Dc Motor General specifications:
* Voltage:12V
* No-load speed:5-650rpm
* No-load current:30mA
* Stall Torque:0.3g-3.3kg.cm
* Stall current:0.7A





Drawing:



JGB37-555 12 Volt Dc Motor High Torque Dc Motor 24v 650rpm Permanent Magnet 0

Model Rated voltage No load Rated StaB
Speed Cirrenl Speed Cinert Torqie OdpU power Torqie C inert Weigh Lsize
V RPM A RPM A NM w NM A g MM
JGB37-555-6 25K 12 800 02 650 12 012 822 035 65 295 19
JGB37-555-10K 12 500 02 407 12 02 856 007 65 295 19
JGB37-555-18 75K 12 267 02 217 12 037 844 1 65 300 22
JGB37-555-30K 12 167 02 136 12 06 856 016 65 300 22
JGB37-555-56 25K 12 89 02 72 12 112 852 3 65 305 24
JGB37-555-90K 12 56 02 45 12 18 856 5 65 305 24
JGB37-555-131 25K 12 38 02 31 12 26 848 Banstal 310 265
JGB37-555-168 75K 12 30 02 24 12 336 852 310 265
JGB37-555-270K 12 19 02 15 12 54 856 315 29
JGB37-555-506 25K 12 10 02 8 12 07 592 315 29
JGB37-555-810K 12 6 02 5 12 07 37 315 29
JGB37-555-6 25K 24 800 01 650 09 012 822 005 4 295 19
JGB37-555-10K 24 500 01 407 09 02 856 008 4 295 19
JGB37-555-18 75K 24 267 01 217 09 037 844 146 4 300 22
JGB37-555-30K 24 167 01 136 09 006 856 023 4 300 22
JGB37-555-56 25K 24 89 01 72 09 112 852 437 4 305 24
JGB37-555-90K 24 56 01 45 09 018 856 007 4 305 24
JGB37-555-131 25K 24 38 01 31 09 026 848 Banstal g,10 265
JGB37-555-168 75K 24 30 01 24 09 336 852 310 265
JGB37-555-270K 24 19 01 15 09 054 856 315 29
JGB37-555-506 25K 24 10 01 8 09 007 592 315 29
JGB37-555-810K 24 6 01 5 09 007 37 315 29



Micro DC Gear Motors advantage:

High sealing performance: The output part is equipped with oil seal and O-ring to prevent the lubricating grease in the gear box from returning and avoid the aging damage of the oil seal insulation.

High efficiency: The use of a new stamping silicon steel sheet mold design, high core accuracy, strong magnetic permeability, and the appearance of a new heat dissipation structure.

Applicability: Small size, new optimized design, geared motor suitable for various operating environments.

Extensive: It can be customized according to the specifications of customers' special needs.
