Product Details:
|
| Usage: | Gearbox For Stepper Planetary Gear Motor | Stage: | 4 Leval Stages Gear Ratio |
|---|---|---|---|
| Type: | 42mm Step Micro Planetary Gearbox | Suitable: | 42mm Diametar Dc Motors |
| Product Name: | Micro DC Stepper Planetary Gearbox | Diameter: | 42mm |
| Typical Applications: | For Stepper Dc Gear Motor | Shaft Diameter: | 8MM |
| High Light: | 42mm Stepper Motor Reducer,ODM Stepper Motor Reducer,42mm low noise Stepper Motor |
||

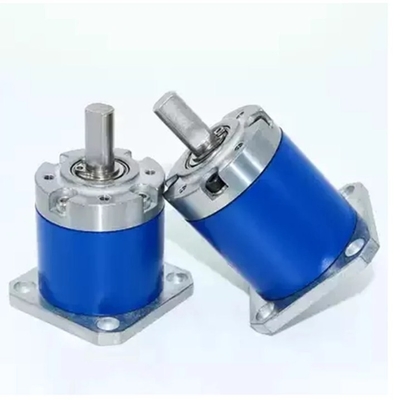

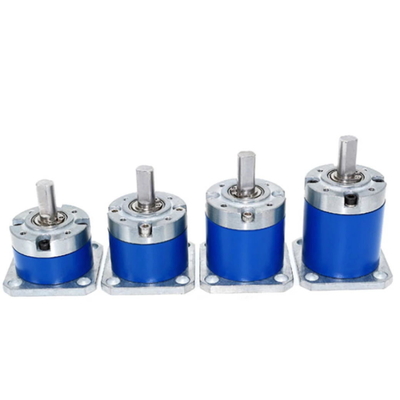

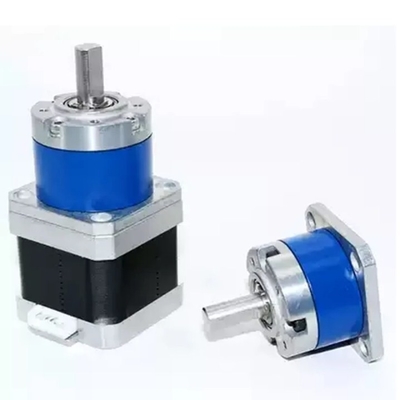

42mm Planetary Gear Stepper Motor Reducer Low Noise 4 Leval Stages
Specification:
| 42mm stepper gear box | |
 |
Integrated output The integrated output realizes low noise and ensures that the motor teeth and outputshaft undergo high temperature heat treatment to increase strength and wear resistance. |
|
About customization We focus on the R&D and production of high-quality motors, and you can choose specifications according to your needs! Welcome to order samples and drawings, or consult our online customer service! |
|

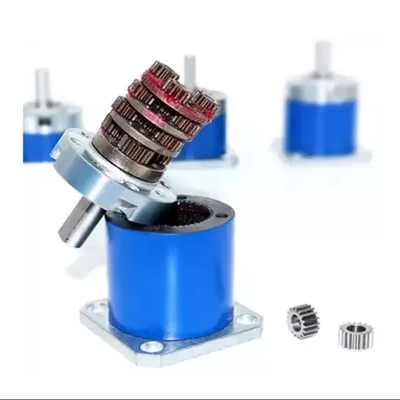

Metal planetary gear High-grade low-carbon alloy,carburizing and quenching,hard and wear-resistant,to ensure the service life of the reducer. |
|
High-strength ring gear Gear transmission reduction box,high coincidence tooth profile balanced operation,high torque,low backlash |
Dimensions (unit:mm):
| 42mm Planetary gearbox parameter | |||||
| Reducer | Length(L/mm) | Ration(i:1) | |||
| Level 1 | 26.5 | 3.7 | |||
| Level 2 | 35.5 | 13.7 | 19.2 | ||
| Level 3 | 38.5 | 51 | 71 | 99.5 | |
| Level 4 | 44.5 | 188.6 | 163.7 | 368.7 | 515.6 |
