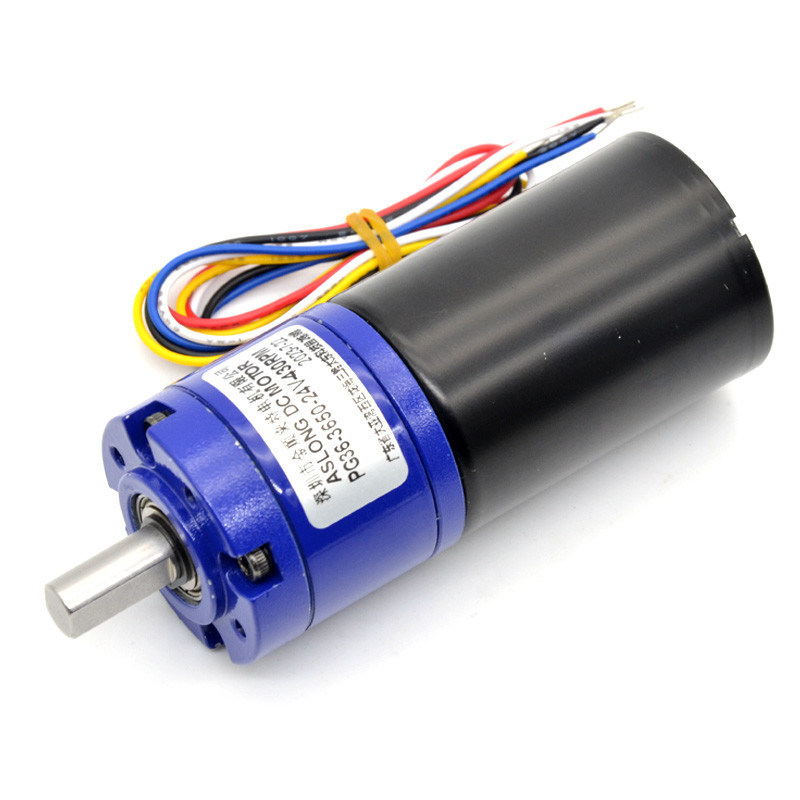

12v 1600rpm Brushless Planetary Gear Motor

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

12v 1600rpm Brushless Planetary Gear Motor

12v 1600rpm Brushless Planetary Gear Motor
12v 1600rpm Brushless Planetary Gear Motor
12v 1600rpm Brushless Planetary Gear Motor 12v 1600rpm Brushless Planetary Gear Motor 12v 1600rpm Brushless Planetary Gear Motor 12v 1600rpm Brushless Planetary Gear Motor 12v 1600rpm Brushless Planetary Gear Motor

Large Image :  12v 1600rpm Brushless Planetary Gear Motor

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: Rosh,CE
Model Number: PG36-3650
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: bubble + carton
Delivery Time: 5-8Working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10000pcs/week

12v 1600rpm Brushless Planetary Gear Motor

Description
Usage: Home Appliance,Electric Bicycle, Car Speed(rpm): 8-1600rpm(no Load)
Type: 36 Mm Diameter Micro Planetary Gear Motor Protect Feature: Totally Enclosed
Torque: 0.7-100KG.cm Voltage(v): 12-24VDC
Product Name: Micro DC Planetary Gearbox Motor Diameter: 36mm
Typical Applications: Electric Toy Model,Curtain Shaft Diameter: 8MM
High Light:

12v Brushless Planetary Gear Motor

,

1600rpm Planetary Gear Motor

,

1600rpm Brushless Gear Motor

12v 1600rpm Brushless Planetary Gear Motor



12v 1600rpm Brushless Planetary Gear Motor 24V 36mm Gearbox For Home Appliance High Torque Low Noise





Specification:
Performance Range: Key Features: Typical Applications:
- Voltage: 12/24VDC - Planetary structure reducer - Electric Curtain
- Speed: 8-1600rpm - Low noise - Electric Valve
- Torque 0.7-100kg.cm - CW/CCW Running - Safe and Locking
- Shaft: D shape (Motor shaft shape and length can be customized) - High quality materials - Home Application



1. Standard Operating Conditions: Rated Voltage: 12v 24v.



1-1 Direction of Rotation:CW when viewed from output shaft side

1-2 Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.

1-3 Storage Temperature:Temperature range of -20C~+60C



2. Measuring Conditions:



2-1 Motor Position:To be place t horizontally when measuring

2-2 Power Supply: Regulated DC power supply

-- No load speed:2-160rpm.

-- Robotics, Small Appliance, Fanner, Electric Curtain;

-- Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device

-- Electric motor,low noise,low current and no spark.

Ratio: 1:3.7 /1:5.18/ 1:14/ 1:27/ 1:50/ 1:71/ 1:100/ 1:139/ 1:189/ 1:263/ 1:369/ 1:516 / 1:721

-- 3650 Motor information : 12V 6000RPM , 24V 6000RPM 8000RPM Remark: Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one for this type, hope your kindly understanding.



Datasheet
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min MA r/min MA Kg.cm
PG36-3650 6-24V 12VDC 1600 230 1300 1300 0.7
6-24V 12VDC 1200 230 1000 1300 1
6-24V 12VDC 430 230 360 1300 3
6-24V 12VDC 230 230 195 1300 5
6-24V 12VDC 120 230 100 1300 9
6-24V 12VDC 85 230 75 1300 13
6-24V 12VDC 60 230 52 1300 18
6-24V 12VDC 45 230 40 1300 20
6-24V 12VDC 32 230 24 1300 26
6-24V 12VDC 23 230 17 1300 36
6-24V 12VDC 16 230 12 1300 51
6-24V 12VDC 12 230 9 1300 71
6-24V 12VDC 8 230 6 1300 100
6-24V 24VDC 1600 130 1300 1300 0.7
6-24V 24VDC 1200 130 1000 670 1
6-24V 24VDC 430 130 360 670 3
6-24V 24VDC 230 130 195 670 5
6-24V 24VDC 120 130 100 670 9
6-24V 24VDC 85 130 75 670 13
6-24V 24VDC 60 130 52 670 18
6-24V 24VDC 45 130 40 670 20
6-24V 24VDC 32 130 24 670 26
6-24V 24VDC 23 130 17 670 36
6-24V 24VDC 16 130 12 670 51
6-24V 24VDC 12 130 9 670 71
6-24V 24VDC 8 130 6 670 100
Remarks:
1. Shaft dimension can be customized.
2. The Voltage can be 6V, 12V,24V; The DC Motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.


Dimensions and connection(unit:mm):



12v 1600rpm Brushless Planetary Gear Motor 0
