Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE,RoHs
Model Number: JGB37-520GB
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: negeotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 5000 Pieces Per day

Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM

Description
Product Name: JGB37-520gb Type: Brushed Motor
Voltage(v): 12V Speed(rpm): 12-1600RPM
Size: 37MM Usage: Home Appliance, Car, Electric Bicycle, Boat, Fan
Torque: 0.1-30 Efficiency: IE 2
High Light:

Jgb37 520gb Electric DC Gear Motor

,

1600RPM Electric DC Gear Motor

,

Jgb37 520gb geared electric motors

Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM



Aslong Jgb37-520gb Metal Gear Dc Motor DC Spur GearReduction Motor Hall Encoder Speed Measurement Large Torque Motor



Model: JGB37-520GB


Operating voltage range: 6-15VDC


12V no-load speed per minute:



1600rpm 1000rpm 531rpm 333rpm 178rpm 111rpm 76rpm 59rpm 37rpm 20rpm 12rpm


Note: Please note the no-load speed you need when taking the picture, so that we can ship it, thank you!



Datasheet:



JGB37-520GB
voltage No load



              On load


stall Speed reducer
  length Weight
Using Rated Voltage al speed Speed Current speed Currernt Torque Power torque Current ratio Redction (L)Size unit
Range   r/min 1 mA r/min mA kgcm w kgcm A Raw m m g
6-15 12V 1600 120 1200 400 01 3 1 1 06:00 19 175
6-15V 12V 1000 120 800 400 000 3 2 1 10 19 177
6-15V 12V 531 120 424 350 0.7 3 2.8 1 188 22 180
6-15V 12V 333 120 266 350 001 3 4.5 1 30 22 180
6-15V 12V 178 120 412 350 2.1 3 8.4 1 56 24 188
6-15V 12V 111 120 88 350 003 3 13 1 90 24 188
6-15V 12V 76 120 60 350 005 3 20 1 131 26.5 190
6-15V 12V 59 120 47 300 6.3 3 25 1 168 26.5 195
6-15V 12V 37 120 29 300 010 3 40 1 270 26.5 194
6-15V 12V 20 120 16 300 019 3 Forbidden 1 506 29 200
6-15V 12V 12 120 9 300 030 3 Forbidden1 810 29 200

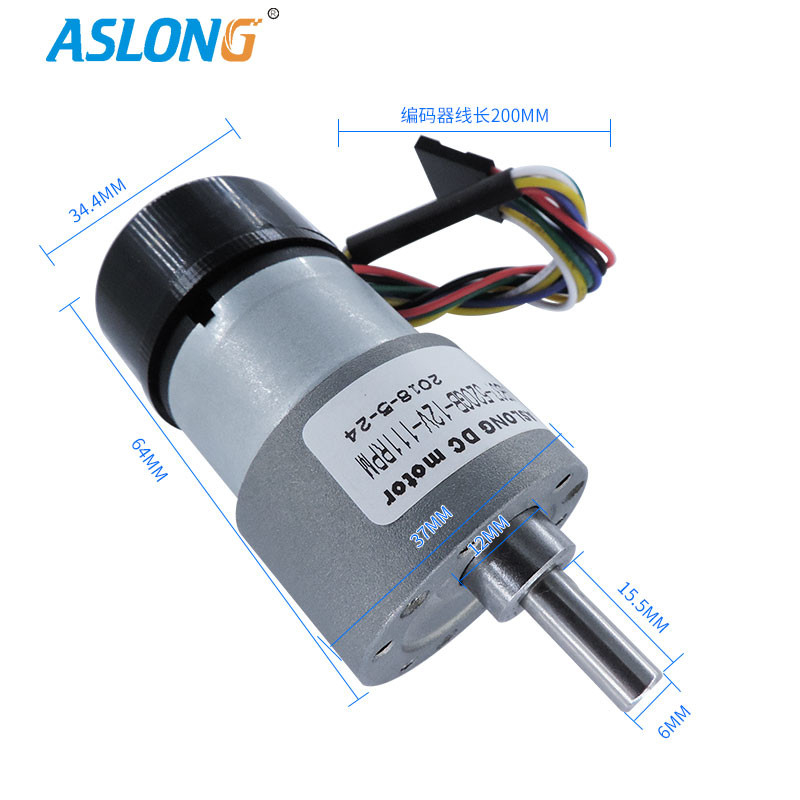

Dimension:





Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM 0Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM 1Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM 2
