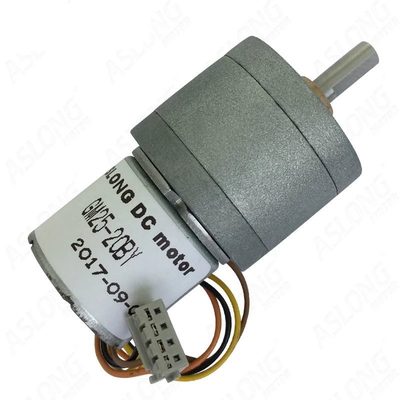

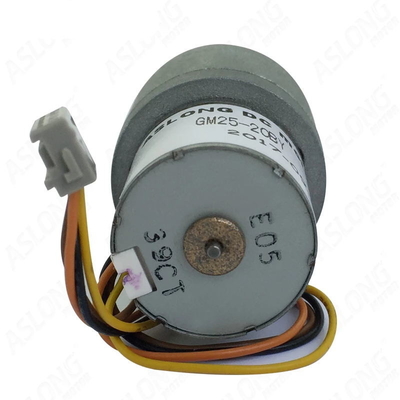

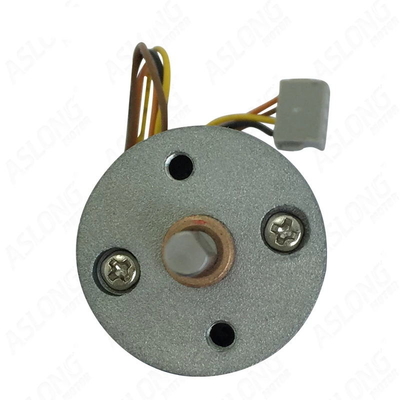

GM25 20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA

GM25 20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA
GM25 20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA GM25 20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA GM25 20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA GM25 20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA

Large Image :  GM25 20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh ,CE
Model Number: GM25-20BY
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

GM25 20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA

Description
Phase: 2 Type: Hybrid
Step Angle(degrees): 23 Degree Product Name: 23degree Hybrid Closed Loop Dc Stepper Motor
Voltage: 24VDC Name: DC Stepper Motors
High Light:

GM25 20BY 4mm DC Stepper Motors

,

4mm 12V DC Stepper Motors

,

GM25 20BY 4mm stepper motor reducer

GM25-20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA



GM25-20BY Stepper Motor Reducer 2-Phase 4-Wire Slow Micro 23 degree 12V 4mm DIA



Specifications

1. Standard Operating Conditions
1-1 Rated Voltage:12V.
1-2 Direction of Rotation:CW when viewed from output shaft side
1-3 Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-4 Storage Temperature:Temperature range of -20C~+60C
2. Measuring Conditions:
2-1Motor Position:To be place t horizontally when measuring
2-2Power Supply: Regulated DC power supply
--Fingerprint lock<optical instrument<office facilities etc;
--Electric motor,low noise,low current and no spark.
--Step angle:23 degree.
rated voltage phase number step angle ratio speed current torque resistance
12v 2 23 21 16.2 65 50g.cm 20
12v 2 23 45 7.2 90 70g.cm 20

Note:The data can be customized,pls contact the customer service to know more.

GM25 20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA 0GM25 20BY DC Stepper Motors Reducer 2 Phase 4 Wire 23 Degree 12V 4mm DIA 1





FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
