Product Details:
|
| Name: | High Torque Dc Gear Motor | Usage: | Home Appliance,door Lock,bicycle |
|---|---|---|---|
| Speed(rpm): | 16-381rpm | Torque: | 0.3-3kg.cm |
| Voltage(v): | 12v | Weight: | 19g |
| High Light: | JGB37-555 Micro DC Gear Motors,75.5mm 381rpm Micro DC Gear Motors,JGB37 381rpm high torque gear motor |
||

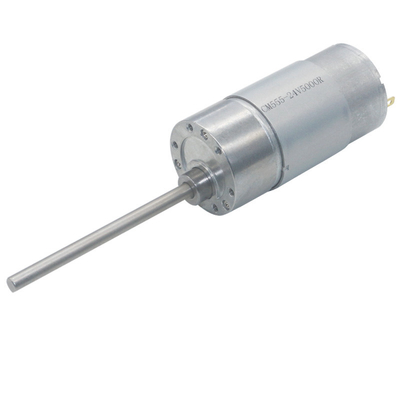

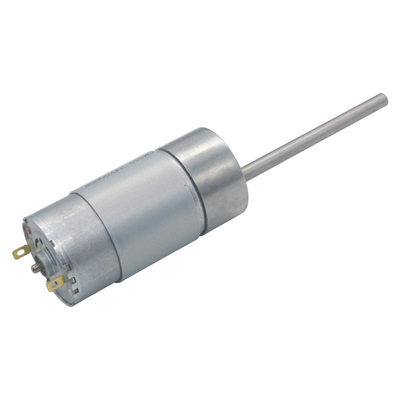

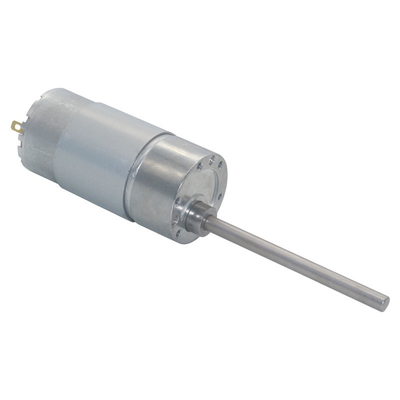

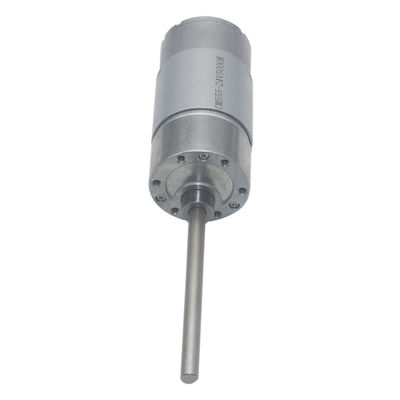

JGB37-555 75.5mm Long Shaft Micro DC Gear Motors High Torque
JGB37-555 75.5mm Long Shaft High Torque Reversed DC Gear Motor
General specifications:
* Voltage:12V
* No-load speed:16-381RPM
* No-load current:30mA
* Stall Torque:0.3g-3.3kg.cm
* Stall current:0.7A
Drawing:
Datasheet:
| Model | Rated voltage | No load | On Load | Stall | |||||||
| Speed | Current | Speed | Current | Torque | Output | Torque | Current | Weight | L size | ||
| V | RPM | A | RPM | A | NM | W | NM | A | g | MM | |
| JGB37-555-6 25K | 12 | 800 | 02 | 650 | 12 | 0.12 | 822 | 0.35 | 65 | 295 | 19 |
| JGB37-555-10K | 12 | 500 | 02 | 407 | 12 | 2 | 856 | 7 | 65 | 295 | 19 |
| JGB37-555-18 75K | 12 | 267 | 02 | 217 | 12 | 3.7 | 844 | 1 | 65 | 300 | 22 |
| JGB37-555-30K | 12 | 167 | 02 | 136 | 12 | 6 | 856 | 16 | 65 | 300 | 22 |
| JGB37-555-56 25K | 12 | 89 | 02 | 72 | 12 | 11.2 | 852 | 3 | 65 | 305 | 24 |
| JGB37-555-90K | 12 | 56 | 02 | 45 | 12 | 18 | 856 | 5 | 65 | 305 | 24 |
| JGB37-555-131 25K | 12 | 38 | 02 | 31 | 12 | 26 | 848 | Ban stall | 310 | 265 | |
| JGB37-555-168 75K | 12 | 30 | 02 | 24 | 12 | 33.6 | 852 | 310 | 265 | ||
| JGB37-555-270K | 12 | 19 | 02 | 15 | 12 | 54 | 856 | 315 | 29 | ||
| JGB37-555-506 25K | 12 | 10 | 02 | 8 | 12 | 7 | 592 | 315 | 29 | ||
| JGB37-555-810K | 12 | 6 | 02 | 5 | 12 | 7 | 37 | 315 | 29 | ||
| JGB37-555-6 25K | 24 | 800 | 01 | 650 | 09 | 12 | 822 | 5 | 4 | 295 | 19 |
| JGB37-555-10K | 24 | 500 | 01 | 407 | 09 | 2 | 856 | 8 | 4 | 295 | 19 |
| JGB37-555-18 75K | 24 | 267 | 01 | 217 | 09 | 37 | 844 | 146 | 4 | 300 | 22 |
| JGB37-555-30K | 24 | 167 | 01 | 136 | 09 | 6 | 856 | 23 | 4 | 300 | 22 |
| JGB37-555-56 25K | 24 | 89 | 01 | 72 | 09 | 11.2 | 852 | 437 | 4 | 305 | 24 |
| JGB37-555-90K | 24 | 56 | 01 | 45 | 09 | 18 | 856 | 7 | 4 | 305 | 24 |
| JGB37-555-131 25K | 24 | 38 | 01 | 31 | 09 | 26 | 848 | Ban stall | 310 | 265 | |
| JGB37-555-168 75K | 24 | 30 | 01 | 24 | 09 | 33.6 | 852 | 310 | 265 | ||
| JGB37-555-270K | 24 | 19 | 01 | 15 | 09 | 54 | 856 | 315 | 29 | ||
| JGB37-555-506 25K | 24 | 10 | 01 | 8 | 09 | 7 | 592 | 315 | 29 | ||
| JGB37-555-810K | 24 | 6 | 01 | 5 | 09 | 7 | 37 | 315 | 29 | ||
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor
4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
