Product Details:
|
| Type: | N20 Micro Gear Motor | Usage: | Home Appliance,door Lock,bicycle |
|---|---|---|---|
| Speed(rpm): | 200rpm | Torque: | 0.3-3kg.cm |
| Voltage(v): | 12v | Weight: | 19g |
| High Light: | 200rpm GA12 N20 Micro Gear Motor,200rpm N20 Micro Gear Motor,200rpm GA12 N20 geared dc motor |
||

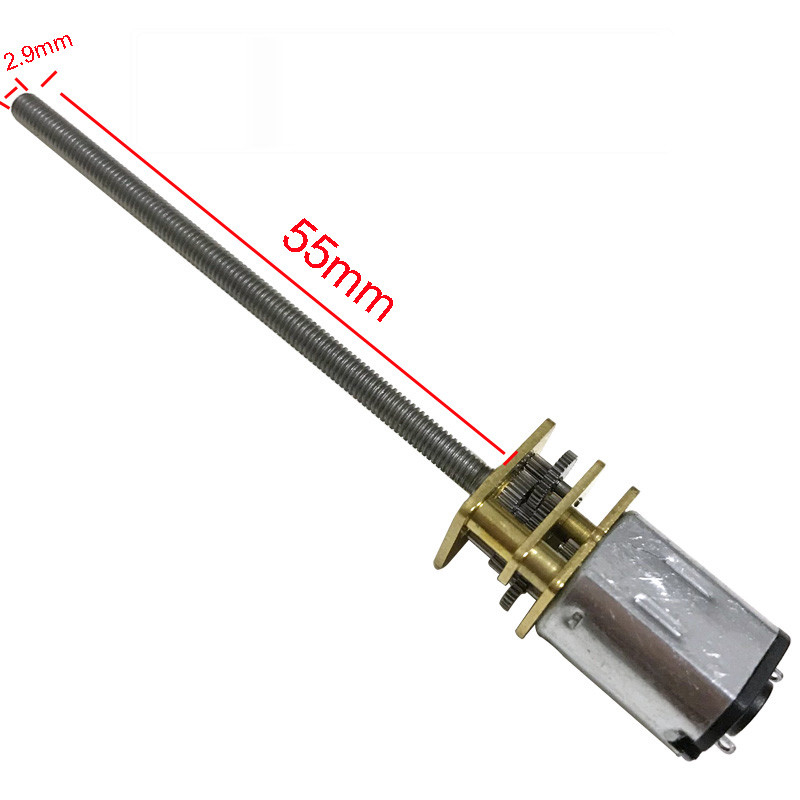

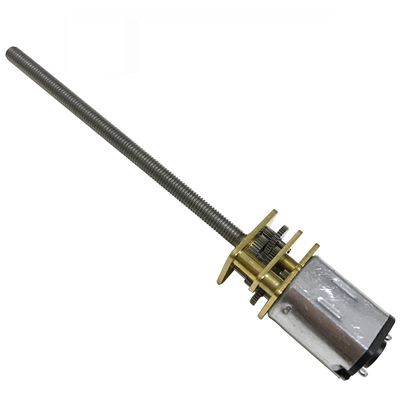

GA12 N20 Micro Gear Motor 6v 200rpm Longer Threaded Spindle M3*55
GA12-N20 M4*55MM Longer Threaded Spindle Motor DC 3V 6V 12V Micro Gear Motor M3*55 n20 Gear Motor
General specifications:
* Voltage:12V
* No-load speed:16-381RPM
* No-load current:30mA
* Stall Torque:0.3g-3.3kg.cm
* Stall current:0.7A
6v geared dc motor Shaft/Voltage/rpm/Torque can be provided also.
we do have other series such as 25D/37D/42D can meet your request, welcome to consult us .

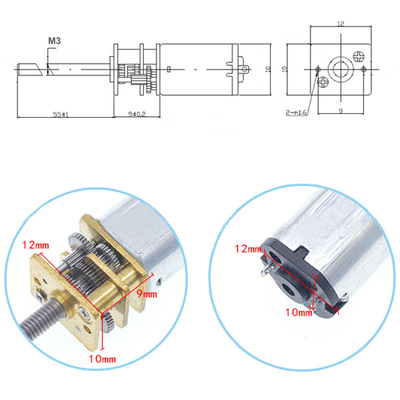

Drawing:
Datasheet:
| Model | Reduction Ratio | No load | On Load | Stall | Power | |||||
| Workable Voltage | Speed | Current | Speed | Current | Torque | Torque | Current | |||
| V | rpm | A | rpm | ma | gf.cm | gf.cm | ma | W | ||
| GW12-N20 | 1:1260 | 6 | 10 | 35 | 333 | 85 | 71 | 235.2 | 700 | 1.02 |
| 1:800 | 6 | 30 | 70 | 119 | 85 | 142 | 472 | 700 | 1.02 | |
| 1:450 | 6 | 55 | 75 | 59 | 85 | 283 | 844 | 700 | 1.02 | |
| 1:800 | 12 | 60 | 75 | 46 | 85 | 362 | 1208 | 700 | 1.02 | |
| 1:450 | 12 | 110 | 70 | 23 | 85 | 579 | 1929.6 | 700 | 1.02 | |
| 1:240 | 12 | 200 | 75 | 14 | 85 | 975 | 3251.2 | 700 | 1.02 | |
