JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor

JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor
JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor

Large Image :  JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGB37-3429
Payment & Shipping Terms:
Minimum Order Quantity: 10Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 Pieces Per Day
Contact Now

JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor

Description
Name: Micro Metal Gear Motor Usage: Door Lock,bicycle,Fan,Home Appliance
Speed(rpm): 6-1200rpm Torque: 2.8-48kg.cm
Voltage(v): 12V/24V

JGB37-3429 gear motor is widely used in intelligent self-balancing two-wheeled vehicles, smart tracking car, smart appliances, robots, camera rocker, electric cutting tape machine.

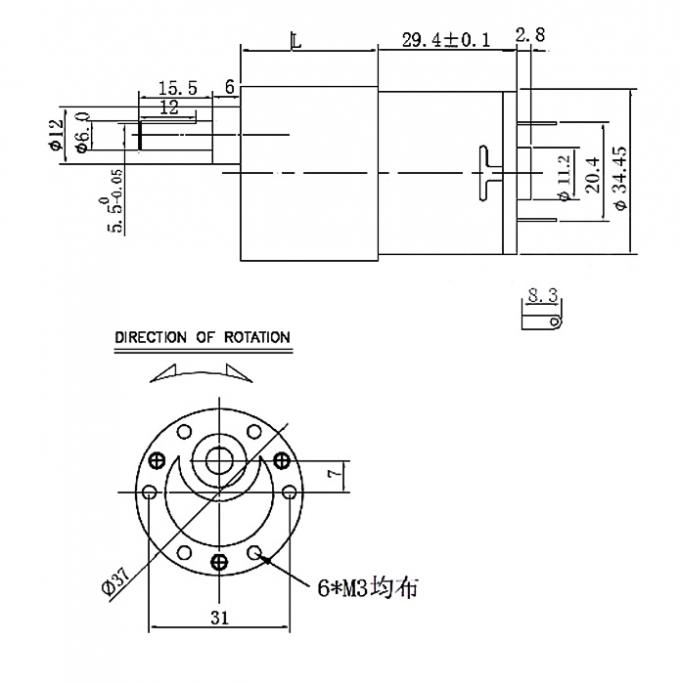

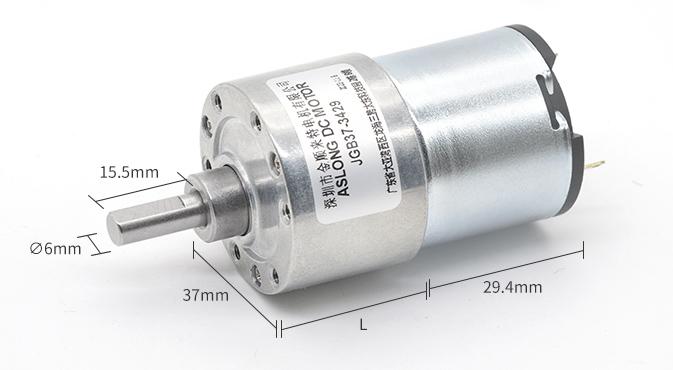

【Outer Diameter】 ∮37mm Length The length is different according to different parameters



【Axis length】 21mm D length 12mm



【Diameter】 Diameter 6mm D-axis



【Voltage】 3-24v



【Form Factor】



【Performance parameters】 customizable

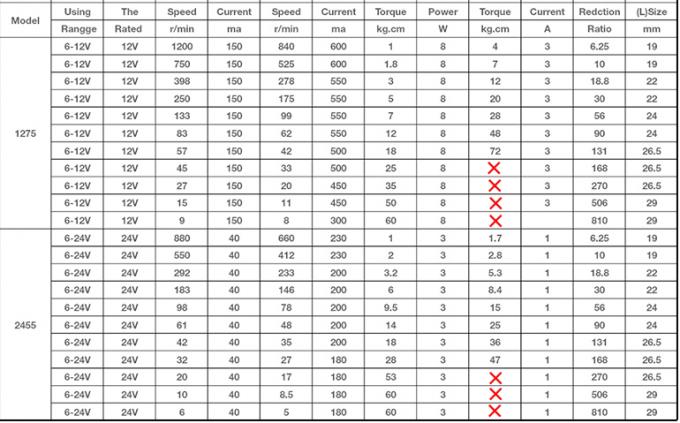

Product Description
Model
JGB37-3429
Power
1-3W
Rated voltage
12/24V
No-load current
40-150MA
No load speed
6-1200RPM
Motor size
37mm
Output shaft diameter
6mm(D-axis)
Customizable shaft length, speed, and voltage
JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor 0
JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor 1
JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor 2

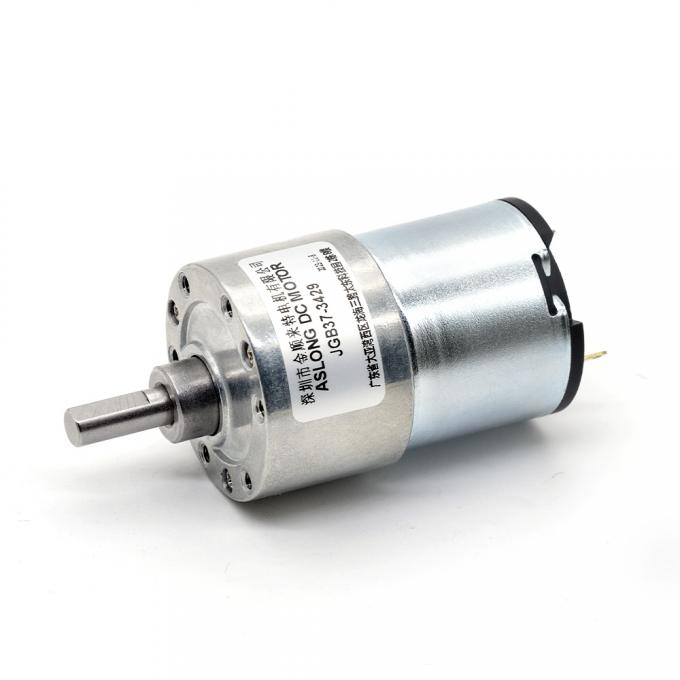

【Product Photograph】
JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor 3
Company Profile
JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor 4
JGB37-3429 12V/24V Brush DC Motor 12V Intelligent Robot Brush DC Motor 24v gear motor 5
Shenzhen Jinshunlaite Motor Co., Ltd. is a manufacturer of dc gear motor,bldc motor,worm gear motor,micro motor,pwm motor etc, with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in many industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for
future business relationships and mutual success!
