N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

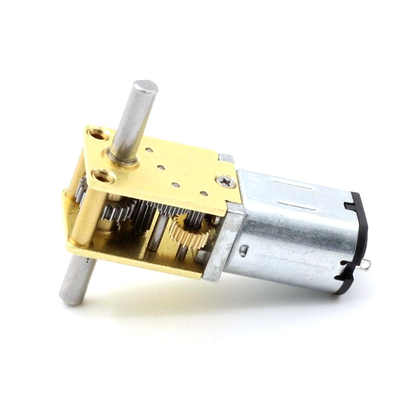

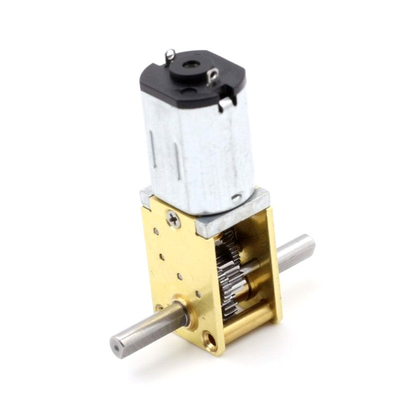

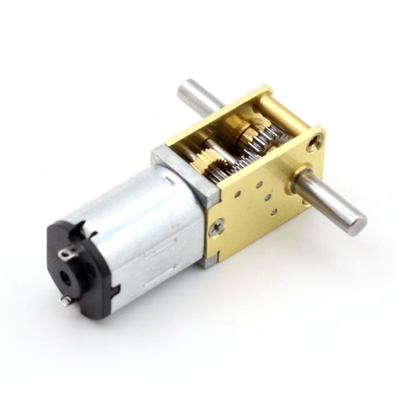

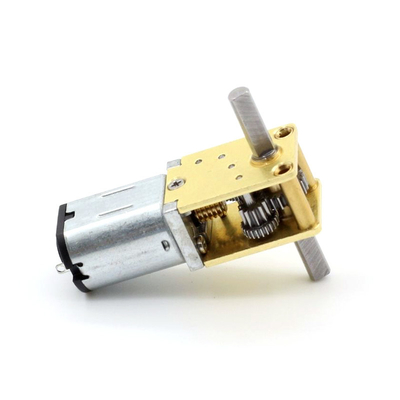

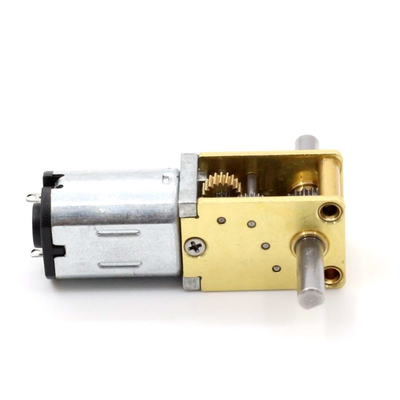

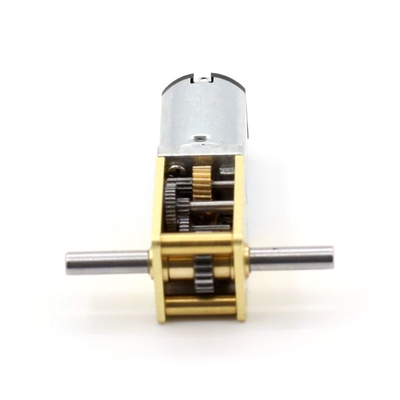

N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor

N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor

Large Image :  N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC,ROSH
Model Number: JGY-N20S
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 Pieces Per Day

N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor

Description
Type: N20 Worm Gear Motor Usage: Smart Lock
Commutation: Brush Speed(rpm): 16rpm-381rpm
Efficiency: IE 1 Weight: 25g

Product Description
JGY-N20S dual shaft Worm gear motor
1 Standard Operating Conditions:

1-17Rated Voltage:12v.
1-18Direction of Rotation:CW when viewed from output shaft side
1-19Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-20Storage Temperature:Temperature range of -20C~+60C

2.Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
--No load speed:21-4200rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
-- Ratio: 1:42 /1:118 / 1:236/ 1:302/ 1:603 /1:1016
2-3 Micro motor :12V16000RPM CW N20 motor
Remark:
Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one for this type, hope your kindly understanding

Specifications:
Rated Voltage: DC 12V,6V,3V
D Shaped Output Shaft Size: 3*8.3mm (0.12" x 0.33") (D*L)
Gearbox Size: 18.1 x 12 x 10.2mm (0.71" x 0.47" x 0.4") (L*W*H)
Motor Size: 15 x 12 x 10.3mm (0.59" x 0.47" x 0.41") (L*W*H)
Net weight: 13g

1. Appearance & Dimensions


N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 0
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 1
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 2
RS-N20 electric dc motor 12V 16000RPM with opened gear box
the shaft character : Dia 3mm D-TYPE , that can be customized

2. Technical Data
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 3
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 4
15years OEM&ODM in DC motor industrial,professional R&D of dc gear motors 3500+square meters production space to supply the motors for customers Have a complete quality testing system,passed the ISO9001 management system certification and passed the Eurpean ROHS,FCC,CE certification Produce various micro speed-reducing motor shafis,reduction gearbox etc.according tocustomer requirements
Our advantage
1.Company Advantage:
A. Our company is a large-scale professional manufacturer deeply trusted by domestic and overseas customers, integrating development, production, wholesales and service.
B. To ensure high-quality and best service ,kingly built up professional teams engaged in research,product engineering and sales.
C. We have 10 years experience in the design of the research and development, With strong technology developing ability and manufacturing capability, advanced equipment
2. Product Advantage:
A. Variety of products,quality guaranteed, products are widely used
B. Advanced product testing equipment
C. Product flexibility, customize according to the requirements of the clients any special develop all kinds of molds, Independent research and development since the open mold products
D. Products through a variety of certification(CE,RoHs,ISO,CCC,UL….)
E. Some products have patent certificate
3. Main product advantage:
A . Specifications can be tailoer-made according to customer’s requirements.
B. Can provide free samples
C. Product quality is guaranteed, a short period of delivery

Product application
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 5
Certifications
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 6
Our Company
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 7
Shenzhen Jinshunlaite Motor co.,Ltd was established in 2005,its headquarters are in shenzhen.The company is a private enterprises which is specialized in producing micro motor and gear reducer.The products are mainly used in precision machinery,precise instruments,medical facility,banking equipment,vending machines,robotics industries.
Company has always adhered the management philosophy of “scientific and technological innovation,quality first”,“Attentively make every motor” is the basic norms of every employee.The company brand,ASLONG,Lays a solid foundation at home and abroad,and becomes the well-know professional brand in China.
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 8
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 9
Packing & Delivery
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 10
N20 DC Right Angle Worm Reducer Gear Motor 6V 16-381RPM Permanent Magnet DC Worm Reduce Metal Worm Gear Motor 11
FAQ
1)Can we customize the data of the motor?
We're a professional manufacturer So we can customize the voltage,speed etc as per our clients' requirements.
2)What's the MOQ?
We try to meet every client's requests and don't want to disappoint our clients. So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
3)What's the delivery time?
At the first we have an schedule,the earlier you place order,the fater we finish the production. In the slack season,we can make sure the delivery time is by 10-15days. In the busy season,we need more than 20days if your quantity is large. The most important,we can provide free overtime prodution if your order is really urgent.
4)Can you send some samples before the order?
Yes of course,we must send the sample to confirm the quality with you first. UPS,TNT,FEDEX or DHL are all available.
5)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable. So logo in usually logo is necessary.It can be labeled on the motors.
6)What's the payment term?
For small amount,we accept 100% payment via paypal. For large amount,we accept 30% telegraphic transfer(TT) as the deposit. And the rest must be paid before shipping.
7)How to deliver the goods?
we will deliver via Express such as UPS,FEDEX,DHL,TNT etc. It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.
8)How long is your warranty?
Our warranty is one years,we have professional testing equipment

9)Any other questions kindly chat with our salers,they will do the best to serve you.
