ASLONG JGA25-370TC 25mm DC Reduction Motor Intelligent Car Wheel Fixing Frame Coupling Motor Sleeve 12 volt electric mot

【Manufacturer's direct store】

We are a professional manufacturer of various DC reduction motors for over 14 years. We not only provide stable and excellent quality, but also provide excellent services. If you need customized parameters and mass production, we can provide you. Please feel free to contact us for more details.

【Quality of motor】

We have specialized equipment for testing and developing motors. We use all metal gear motors with long lifespan and noise. We will never cut corners to save costs. We will conduct strict testing on the motor before shipment to ensure that it meets the requirements.

【Give service to】

We will provide you with excellent service both before and after sales. You can always contact me for more product details.

【25mm series products】

(This is the 25mm series motors of the same size have different functions, such as type, torque, voltage,all using an all metal gearbox.)

【Product information】

【Model:JGA25-370】

【Working volt range: 6/12/24V】

【Continuing current :60-80MA】

【No-loading Rotation speed:6v no-load speed: 1363rpm 646rpm 281rpm 176rpm 133rpm 77rpm 58rpm 35rpm 26rpm16rpm 12rpm. 12v no-load speed: 1931rpm 915rpm 399rpm 250rpm 188rpm 108rpm 82rpm 50rpm 37rpm 22rpm 17rpm. 24v no-load speed:863rpm 409rpm 178rpm 111rpm 84rpm 48rpm 36rpm 22rpm 17rpm10rpm 7.5rpm.】

【Power:1-4W】

【Torque : 2KG.CM]

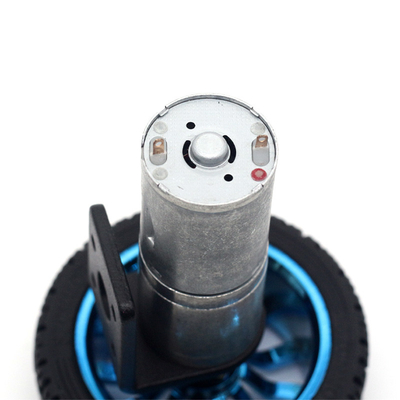

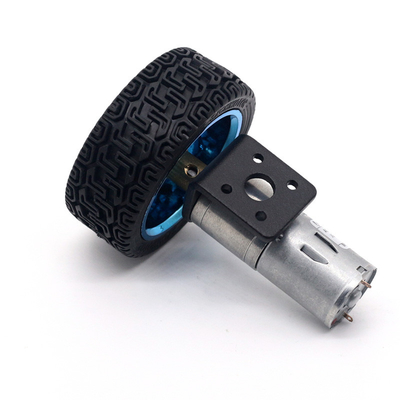

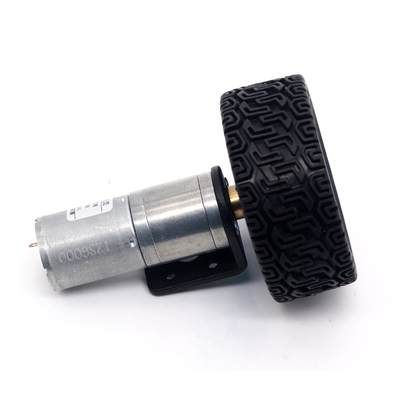

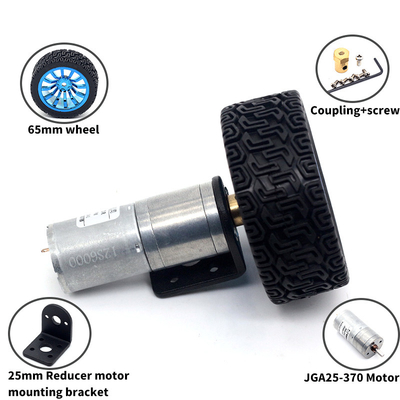

【Reduction motor intelligent small wheel set JGA25-370TC】

【Deceleration motor intelligent small wheel set】

【25mm reduction motor mounting bracket+coupling】

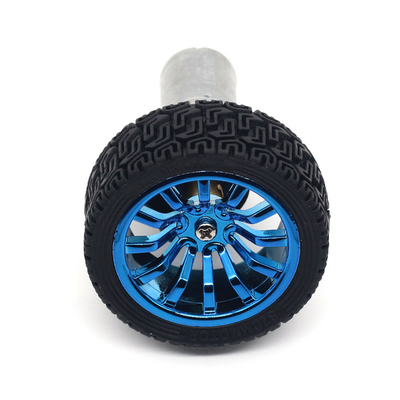

【65mm model wheel】

【Copper coupling】

【25MM reduction motor fixing bracket coupling]

【Material:Aluminum alloy surface spray treatment, with noise reduction and shock resistance, beautiful and elegant appearance】

【Suitable for: 280, 300, 310, 340, 370 and other reduction motors】

【65MM diameter】

【High friction tires have complex tree patterns and strong grip】

【To be used together with a coupling】

【Copper coupling】

【Wiring method 】

【Forward rotation: The one with a red dot or a "+" sign is connected to the positive pole of the power supply. The other side is connected to the negative pole of the power supply.】

【Reverse: The positive and negative power supplies are connected in reverse.】

【JGA25-370 Different Series Products】

【Company Profile】

[Delivery]



[FAQ]

1)What's the price?
We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

2)What's the MOQ?
We try to meet every client's requests and don't want to disappoint our clients.
So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
