Product Details:
|
| Name: | BLDC Geared Motor | Type: | Micro Motor,Gear Motor,Brushless DC Motor |
|---|---|---|---|
| Usage: | Home Appliance | Commutation: | Brushless |
| Protect Feature: | Totally Enclosed | Efficiency: | IE 1 |
| Torque: | 0.03-16.5kg.cm | Weight: | 100g（Approximately） |
| High Light: | JGA25-2418 9RPM Micro DC Gear Motors,25mm 9RPM Micro DC Gear Motors,JGA25-2418 BLDC Geared Motor |
||

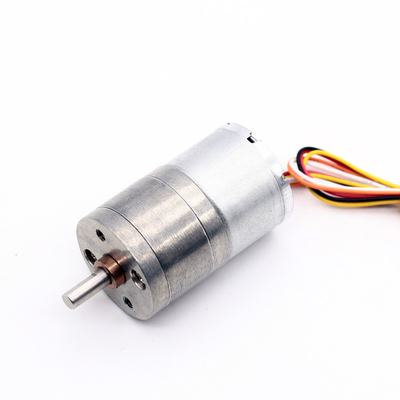

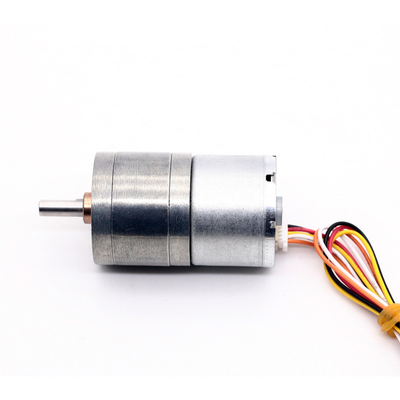

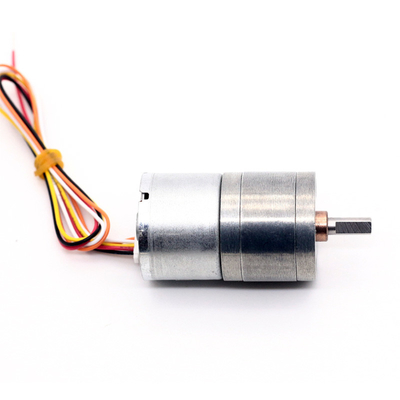

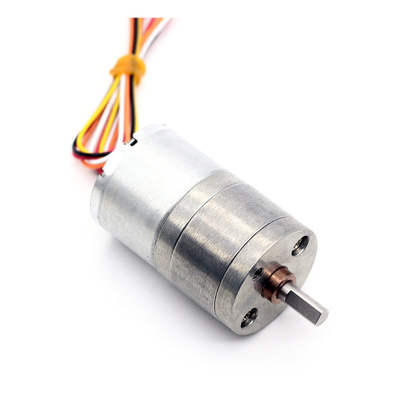

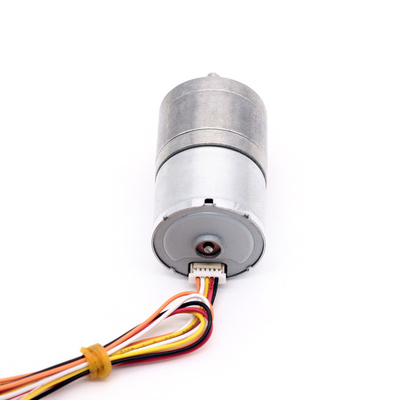

12V 9RPM Micro DC Gear Motors JGA25-2418 25mm BLDC Geared Motor
Mirco Dc gear Motors JGA25-2418 25mm Diameter BLDC Geared Motors 12V 9RPM-1000RPM CCW CW Brake PMW Speed Control Micro B
Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal
Motor Diameter: about 25mm
Motor Body Length: 18mm
Output Shaft Diameter: 4mm(D-Type)
Output Shaft Length: 9.5mm
Gearbox Length: Decide by different reduction ratio, below data sheet as your reference.
BLDC Geared Motor Wire Connection Method:
Red line:Power+
Black line:Power-
Yellow line:FG output,18singals/R
Orange line:CCW/CW control ,orange line Vacant motor is ccw,when orange line connect power-,motor is cw.
White line:speed adjust
Drawing:
Datasheet:
| Model: JGA25-2418 | No load | On Load | Stall | Size(L) | Weight | |||||||
| Rated Voltage | Speed | Current | Speed | Current | Torque | Power | Torque | Current | ||||
| Workable Voltage | Reduction Ratio | V | rpm | ma | rpm | ma | Kg.cm | W | Kg.cm | A | mm | g |
| 12-24V | 4.4 | 24 | 1977 | 50 | 1500 | 168 | 0.15 | 2.2 | 0.6 | 0.8 | 18 | 100 |
| 12-24V | 9.6 | 24 | 900 | 50 | 682 | 168 | 0.3 | 2.2 | 1.4 | 0.8 | 18 | 105 |
| 12-24V | 21.3 | 24 | 408 | 50 | 308 | 168 | 0.7 | 2.2 | 3 | 0.8 | 19 | 110 |
| 12-24V | 35 | 24 | 245 | 50 | 185 | 168 | 1.17 | 2.2 | 5 | 0.8 | 20 | 115 |
| 12-24V | 47 | 24 | 186 | 50 | 140 | 168 | 1.5 | 2.2 | 6.7 | 0.8 | 20 | 115 |
| 12-24V | 78 | 24 | 111 | 50 | 85 | 168 | 2.8 | 2.2 | 11 | 0.8 | 22 | 120 |
| 12-24V | 103 | 24 | 85 | 50 | 64 | 168 | 3.4 | 2.2 | 15 | 0.8 | 22 | 120 |
| 12-24V | 171 | 24 | 50 | 50 | 38 | 168 | 5.6 | 2.2 | 24 | 0.8 | 24 | 125 |
| 12-24V | 226 | 24 | 38 | 50 | 29 | 168 | 7.5 | 2.2 | 24 | 0.8 | 24 | 125 |
| 12-24V | 377 | 24 | 23 | 50 | 17 | 168 | 12.5 | 2.2 | 24 | 0.8 | 26 | 130 |
| 12-24V | 500 | 24 | 17.5 | 50 | 13 | 168 | 16.5 | 2.2 | 24 | 0.8 | 26 | 130 |
| 12-24V | 4.4 | 12 | 990 | 35 | 740 | 76 | 0.03 | 0.6 | 0.2 | 0.45 | 18 | 100 |
| 12-24V | 9.6 | 12 | 453 | 35 | 340 | 76 | 0.07 | 0.6 | 0.46 | 0.45 | 18 | 105 |
| 12-24V | 21.3 | 12 | 204 | 35 | 150 | 76 | 0.16 | 0.6 | 1 | 0.45 | 19 | 110 |
| 12-24V | 35 | 12 | 122 | 35 | 90 | 76 | 0.28 | 0.6 | 1.7 | 0.45 | 20 | 115 |
| 12-24V | 47 | 12 | 93 | 35 | 70 | 76 | 0.37 | 0.6 | 2.26 | 0.45 | 20 | 115 |
| 12-24V | 78 | 12 | 55 | 35 | 40 | 76 | 0.6 | 0.6 | 3.7 | 0.45 | 22 | 120 |
| 12-24V | 103 | 12 | 42 | 35 | 30 | 76 | 0.8 | 0.6 | 5 | 0.45 | 22 | 120 |
| 12-24V | 171 | 12 | 25 | 35 | 19 | 76 | 1.3 | 0.6 | 8.2 | 0.45 | 24 | 125 |
| 12-24V | 226 | 12 | 19 | 35 | 14 | 76 | 1.8 | 0.6 | 11 | 0.45 | 24 | 125 |
| 12-24V | 377 | 12 | 11 | 35 | 8 | 76 | 3 | 0.6 | 18 | 0.45 | 26 | 130 |
| 12-24V | 500 | 12 | 8.5 | 35 | 6 | 76 | 4 | 0.6 | 24 | 0.45 | 26 | 130 |
