Home Products25mm DC Gear Motor

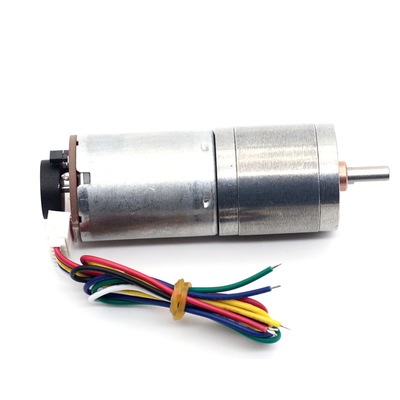

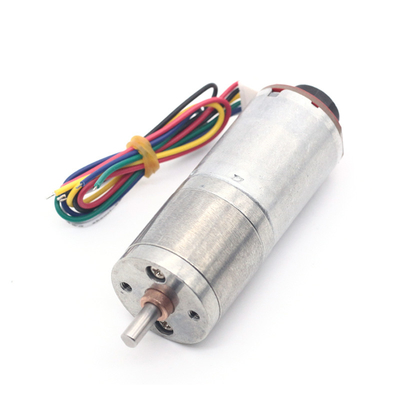

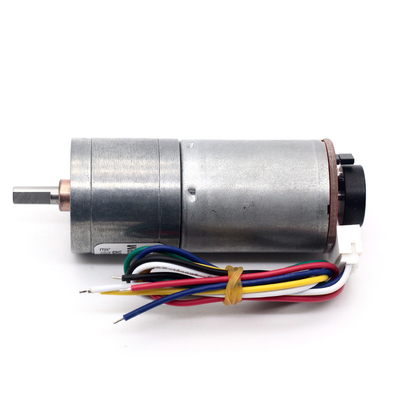

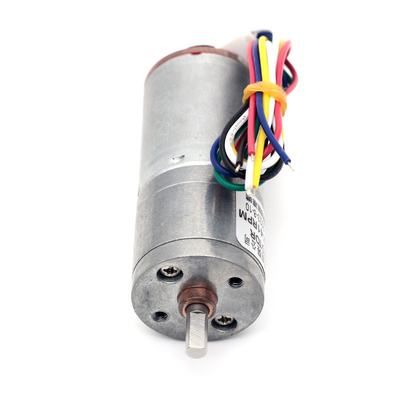

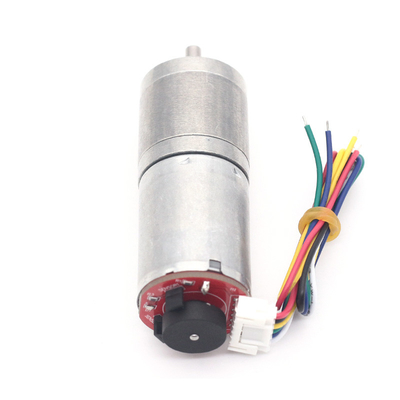

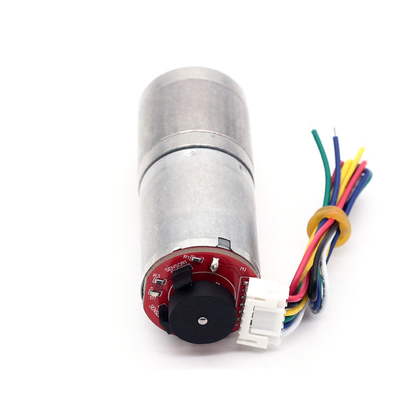

ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor

ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor

Large Image :  ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGA25-370B
Payment & Shipping Terms:
Minimum Order Quantity: 3 Pieces
Price: Negotiation
Packaging Details: bubble +carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Pieces Per Day

ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor

Description
Product Type: Miniature Dc Gear Motor Voltage: 12V
No Load Current: 60-80MA Power: 1.25W
No-load Speed: 8.6-977RPM Output Shaft Diameter: 4MM (D-axis)
Motor Size: 25mm

25GA370 Large Torque Small DC Gear Motors 1360rpm With Tachometer Encoder



DC12V 25GA370 Large Torque Speed Reduction Gear Motor with Tachometer Encoder







ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 0 ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 1



  JGA25-370 Micro Dc Gear Motor Description:



Now ,you can get our this 25mm dc gear motor with magnetic encoder(JGA25-370B),and other related 25mm gearbox motors as following:



ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 2 ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 3 ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 4 ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 5
JGA25-370B JGA25-310 JGA25-385 JGA25-340
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 6 ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 7 ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 8 ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 9
JGA25-2418 JGA25-2430 JGA25-370TC

JGA25-370DG


【Manufacturer's direct store】
We are a professional manufacturer of various DC reduction motors for over 14 years. We not only provide stable and excellent
quality, but also provide excellent services. If you need customized parameters and mass production, we can provide you. Please
feel free to contact us for more details.
【Quality of motor】
We have specialized equipment for testing and developing motors. We use all metal gear motors with long lifespan and noise. We
will never cut corners to save costs. We will conduct strict testing on the motor before shipment to ensure that it meets the
requirements.
【Give service to】
We will provide you with excellent service both before and after sales. You can always contact me for more product details.
Product Description
Types of
Micro DC encoder deceleration motor
Model
JGA25-370B
Power
1.25~2W
Rated voltage
6V/12V
no-load current
46MA-80MA
no-load speed
8.6-1363RPM
Reducer diameter
25mm
Output shaft diameter
4mm
Adjustable speed, forward and reverse rotation, customizable
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 10
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 11
Suit 1 Motor+J809 governor+12V5A power supply
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 12
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 13
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 14
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 15




Wiring method:

  •

  •   No load Output Stall
    Rated Voltage rpm Current(ma) rpm Current(ma) Torque(Kg.cm) Output(W) Torque(Kg.cm) Current(ma) Ratio (1:1) Size(L)
    6v 1363 80 1090 380 0.1 2 0.8 900 4.4 16
    6v 646 80 516 380 0.23 2 1.5 900 9.6 17
    6v 281 80 238 380 0.5 2 4 900 21 19
    6v 176 80 150 380 0.85 2 5 900 35 21
    6v 133 80 113 380 1.1 2 6 900 45 21
    6v 77 80 65 380 1.95 2 10 900 78 23
    6v 58 80 46 380 3 2 15 900 103 23
    6v 35 80 28 380 4 2 25 900 171 25
    6v 26 80 20 380 5 2 35 900 226 25
    6v 16 80 13 380 9 2 Forbidden 900 377 27
    6v 12 80 10 380 10 2 Forbidden 900 500 27
    12v 977 46 781 300 0.11 1.25 0.55 1 4.4 15
    12v 463 46 370 300 0.23 1.25 1.1 1 9.6 17
    12v 201 46 168 300 0.53 1.25 2.65 1 21 19
    12v 126 46 100 300 0.85 1.25 4.2 1 35 21
    12v 95 46 76 300 1.1 1.25 5.5 1 45 21
    12v 55 46 44 300 1.95 1.25 9.7 1 78 23
    12v 41 46 32 300 2.5 1.25 12.5 1 103 23
    12v 25 46 20 300 4.2 1.25 21 1 171 25
    12v 19 46 15 300 5.6 1.25 28 1 226 25
    12v 11 46 88 300 9.45 1.25 47 1 377 27
    12v 8.6 46 6.8 300 12 1.25 60 1 500 27


Suit 2 motor+37mm fixed frame+coupling+65mm wheel
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 16
Suit 3 motor+J809 governor+12V5A power supply+37mm fixed bracket+coupling+65mm wheel
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 17
product details
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 18
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 19
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 20
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 21
Company Profile
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 22
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 23
Shenzhen Jinshunlaite Motor Co., Ltd. is a manufacturer of dc gear motor,bldc motor,worm gear motor,micro motor,pwm motor etc, with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Delivery and Packing
ASLONG Hall Motor Encoder Reduction Motor JGA25-370B 12V 8.6-977RPM High Torque Dc Motor With Encoder Supplier Dc Motor 24
FAQ
1. What is an encoder used for?
Measure the rotational speed to ensure that the rotational speed of a whole set of motors is the same and the speed of the transferred workpiece is the same


2.Do I need encoder motor?
The characteristic of the Hall encoder motor is that it uses a Hall encoder motor to monitor the position and speed of the motor, which has high accuracy, high stability, and a wider range of application scenarios. If you do not need precise control of the motor's operating position and speed, you can choose a regular motor without a Hall encoder.

3. Are encoders AC or DC?
The output of the Hall encoder is generally a DC signal, and the DC electric field signal is easier to process and collect than the AC electric field signal.

4.What is 12V DC motor?
A 12V DC motor is a type of motor driven by a DC power source, with a voltage of 12V. It is composed of armature, magnetic pole, brush, bearing, etc., and can be used in fields such as automobiles, household appliances, mechanical equipment, etc. According to the power, speed, torque and other parameters of the motor, it can be divided into different types and specifications of motors.

5.How to deliver the goods?
we will deliver via Express such as UPS,FEDEX,DHL,TNT etc. It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.
