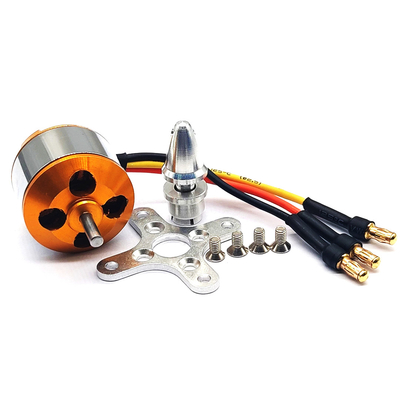

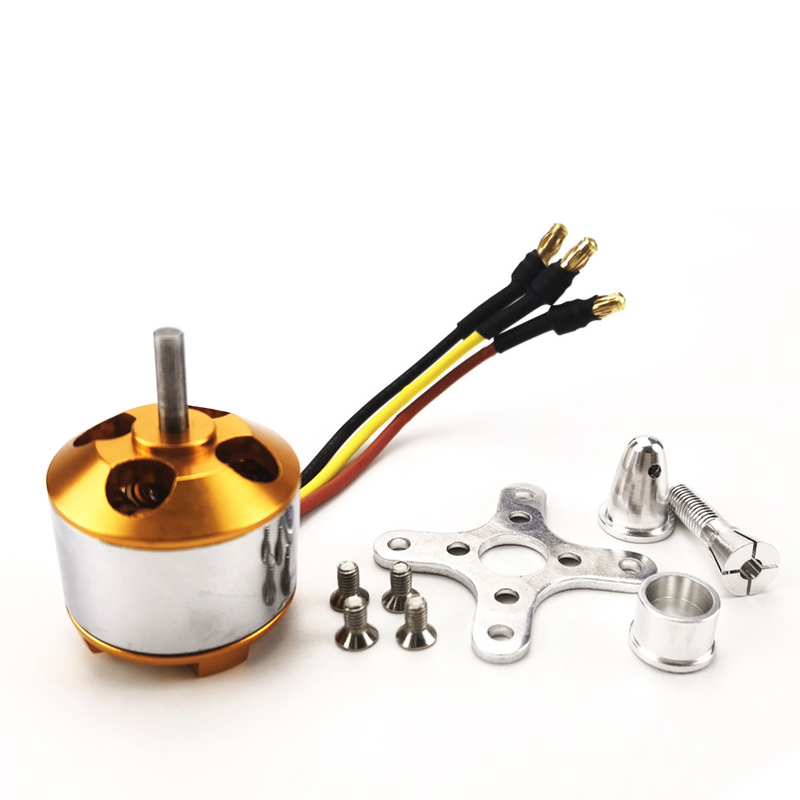

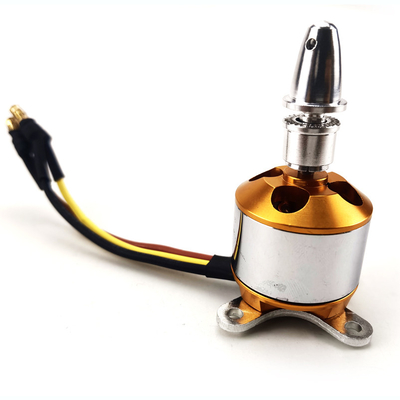

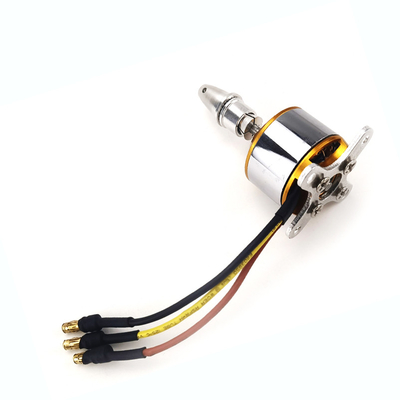

2200KV 2700KV Brushless Dc Electric Motor For Quad Rotor Multicopter

- Mode:Wester A2212

- KV: 930 / 1000 /1400 /2200 according to your order

- Max Efficiency: 80%

- Max Efficiency Current: 4-10A (>75%)

- Current Capacity: 12A/60s

- No Load Current @ 10V: 0.5A

- No. Of Cells: 2-3 Li-Poly

- Motor Dimensions: Φ27.5 x 30mm

- Shaft Diameter: Φ3.17mm

- Weight: 47g

XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

XXD A2212 1400KV brushless outrunner motor:

- Shaft diameter: 3.17mm
- Dimension : 27.8mm x 27mm
- Recommended Propeller: 2-cells 7*3.5 , 3-cells 6x3

- Weight: 48g

XXD A2212 2200KV brushless outrunner motor:

• Max Efficiency: 80%

• Max Efficiency Current: 4-10A (>75%)

• Current Capacity: 12A/60s

• No Load Current @ 10V: 0.5A

• No. Of Cells: 2-3 Li-Poly

• Motor Dimensions: ?27.5 x 30mm

• Shaft Diameter: ?3.17mm

• Weight: 47g

XXD A2212 2700KV brushless outrunner motor:

Rpm/V: 2700KV
Net Weight: 50g
Weight: 60g
Motor Dimensions: 27*26mm
Battery Opernating: 2-3 Lipo
Idle current: 1.8A
Load current: 18.5A
Power (Watt): 240
ESC(A): 30A,20A
Peak.Amps :14-22 A

Dynamic reference:

1000kv with 1060 9050 propeller -- forward pull drill

1400kv with 9050 8040 8060 propellers -- pull forward 3D stunt machine/world war ii aircraft

7035 6030 propeller for 1750kv -- push back drill

6030 5030 propellers for 2200kv -- push back fighter

2700kv with 5030 propeller -- thrust back high-speed machine

It is recommended to use 2212 propeller in general 2S 7.4v

Take the following data for reference

1147 propeller for 1000kv

1060 9050 propellers for 1400kv

8060 8040 Propeller for 1750kv

7035 propeller for 2200kv

6030 propeller for 2700kv
