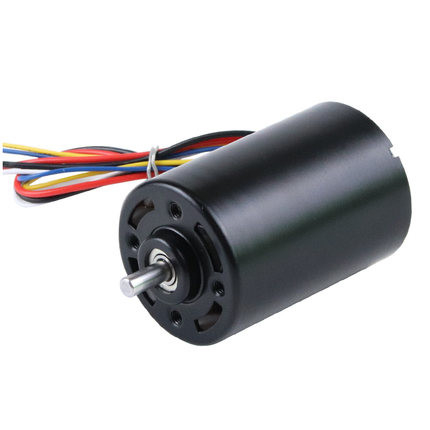

4260 Miniature 24v Brushless DC Motors 4000rpm Permanent Magnet
R-4260 Miniature DC Brushless Permanent Magnet Gear Motor Hall Drive High Speed Motor DC 12V 24V
【Diameter】 ∮ 42mm Length The size varies according to the different lengths of the parameters
【Axis】 15mm housing plane to the shaft head

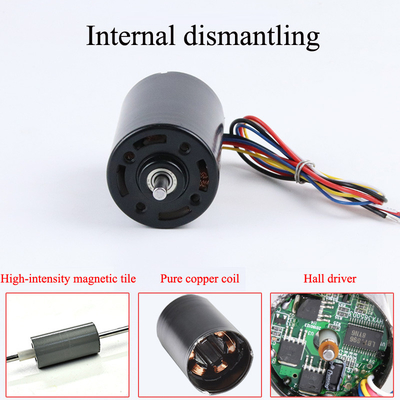

[Firmware Performance] Brushless Stator Octal Magnetic Brushless Rotor 6 Slot Structure
[Shaft diameter] diameter of 5.0mm round shaft
【Voltage】 12-24v lead length of 27 cm long 270mm
permanent dc motor weight 270 grams
Drive modeThere is a sense of built-in Hall drive
【General parameters】 12V 4000 to 24V8000 turn, our long-term production, the rest of the parameters, please contact the treasurer custom, the general order delivery time 10 to 15 days
[Wiring] conventional 5 line mode, the need for speed with 5 lines,Do not need to adjust the speed of the wrong line wrong motor can be ordered to choose the three lines more convenient to use (10 from the set)
The same time as the above-The same time as the above-[Red line] then the power supply positive, positive and negative can not be wrong;
The same time as the above-【Black】 connected to the power supply negative, positive and negative can not be wrong;
The same time as the above-[White line] is reversing control line, disconnect, the motor a turn, with the black line with the negative, the motor for the direction;
The same time as the above-[Blue line] PWM speed line, then 0 ~ 5V pulse width governor is the brake line
The same time as the above-【Yellow line】 FG signal line basic signal motor output a signal

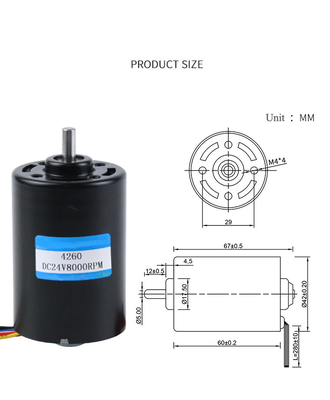

【Outline】 This figure shows the standard parameters of the outline, the size of the remaining parameters, please contact the treasurer
1. Why choose US?
a. High Service Quality: OEM & ODM service; Reply within 24 hours.
b. Quality inspection in factory and double check in company.
c. Professional Manufacturer: We possess several production bases, gathering over 100 staff, a professional R&D team and many
other cooperation manufacturer, all products are directly from factory.
d. Competitive Price: Every order must follow our quoted price rule; We never allowed the higher price.
e. Advantaged Shipment: Our partner: DHL, UPS, FedEx, EMS; Delivery time: 4-7 working days.
2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products were shown on alibaba, please have a detailed looking and choose the interested models in our site.
4. If I want cheaper quality, can you produce?
Yes, just send your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and
calculate the price.
5. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment
Terms,Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
