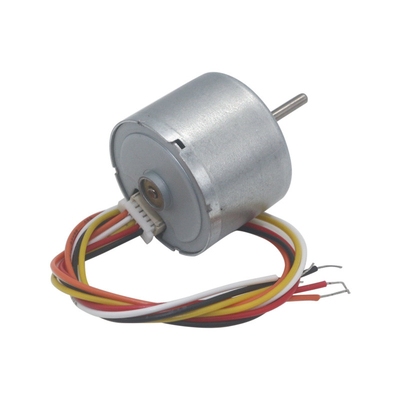

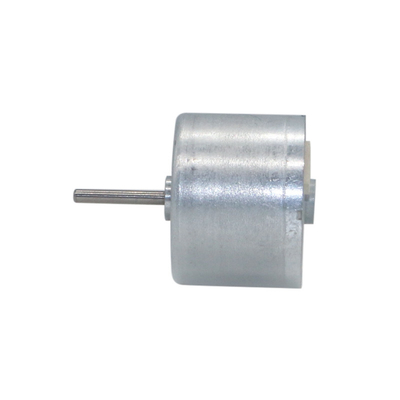

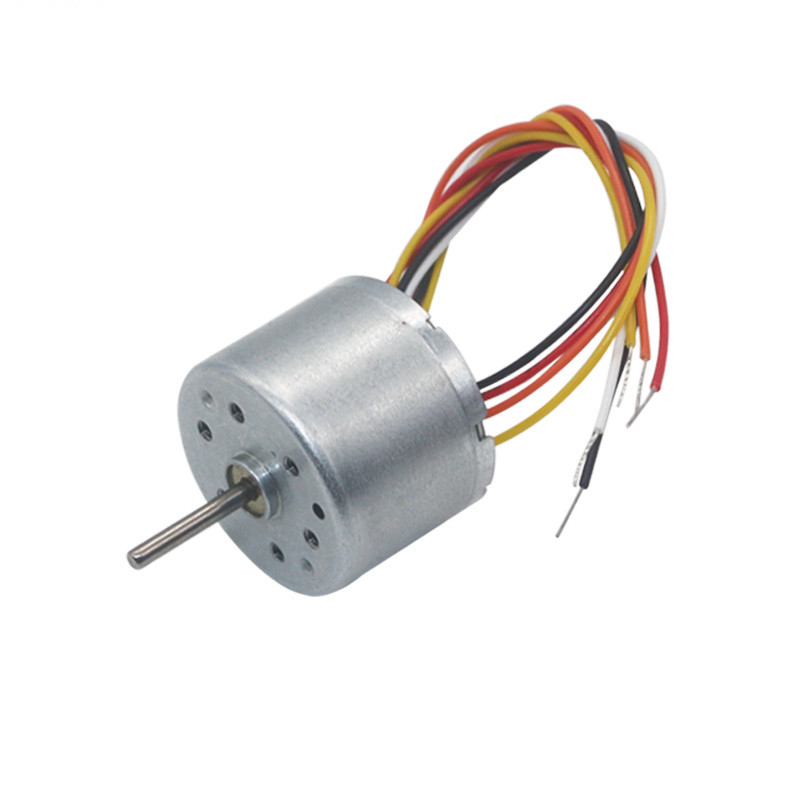

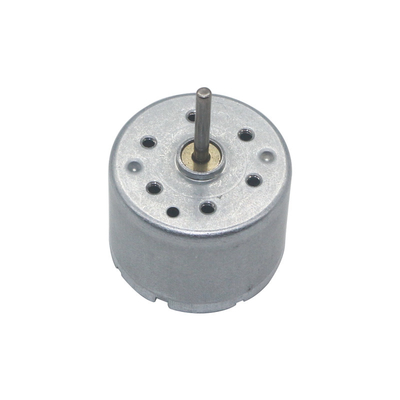

BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet

BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet
BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet

Large Image :  BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: Rosh,CE
Model Number: BLDC2418
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: bubble + carton
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet

Description
Usage: Home Appliance,Fan Type: Small Brushless Dc Motor
Commutation: Brushless Speed(rpm): 3500/8700rpm
Construction: Permanent Magnet Weight: 30g
High Light:

8700rpm 24v Brushless DC Motors

,

8700rpm Brushless DC Motors

,

8700rpm small brushless dc motor

BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet



BLDC2418 12v Brushless Motor 24v 8700rpm High Speed Small Size Long Life





Features:



Red line:motor +
Black line:motor -
Yellow line:signal motor 9 pulses per revolution
Blue line:0-5V voltage speed regulation
White:Forward and reverse lines(white and black wire connect motor negative is reverse)

Wiring method introduction

Black line : Connect DC power supply negative - (Prohibit errors)

Red line: Connect DC power supply positive + (Prohibit errors)

Yellow line: Signal line, the motor rotates one turn and output 18 pulse signals

White line: Duty cycle, pulse width speed regulation 15-25khz

Orange line: is the line that controls the motor to rotate clockwise or counterclockwise. Connect the orange line to the black line and the motor will change the direction of rotation immediately. ( Overcurrent protection 0.8A; once the current is exceeded, the motor will stop working immediately, and the motor can be re-run after the power is connected again.)




Product title Factory supply permanent magnet electronics driver board built in 12V 24V 24mm start voltage 5V DC brushless motor
Motor application power tools electric drill electric hammer Cordless Electric Screwdriver power drill set
Motor Feature High speed(3000rpm to 9000rpm) high efficient,low current consume,low noise,good quality
Product Keywords Widely used for power tools electric drill electric hammer Cordless Electric Screwdriver power drill set,12v to 24v
Motor Alias name

dc engine,5v dc motor,brushless 6000rpm dc motor,0.02kgcm brushless dc motor

24v 1 phases bldc motor with hall and driver, EC brushless high speed motor for beauty massage





DC motor table
Model name



Rated voltage

(VDC)



No load speed

(RPM)

No load

Current

(N.m)

Rated

Current

(A)

Rated speed

(with load)

(RPM)



Suitable

Gearbox

(for each model)

Available

Ratio of gearbox

Driver

type



BEC2418-12



12 6500 0.002 0.04

5000

(no gear)

P22 Planetary gear G25 worm gear 3-1000 Built-in



BEC2418-24



24 8600 0.002 0.04

6000

(no gear)



W22 worm gear,

P24 Planetary gear,





3-1000 inner Driver

The following is a description of the quality materials and structures of this motor.

1. Motor center output shaft

2. The internal structure of the motor

3. Bottom cover design

4. Line port



BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet 0



Typical Applications:

Household Appliances: Air freshener, Smart vacuum cleaner, Soap dispenser, Dryer.

Hair Care: Hair dryer, Electric hair clipper, massage instrument.

Office Equipment: Printer, Projector, Counting Machine,Shredder.

Industrial Equipment: Water,electrical and gas valve, Air switch, Water ump, Air pump, Electric drill.

Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
