Product Details:
|
| Material: | Metal | Home Appliance: | Dc Gear Motor |
|---|---|---|---|
| Dc Motor: | 6v Mini Dc Gear Motor | Reducer: | Dia25mm Gearbox Reducer |
| Motor: | 12v Dc Motor | Usage: | Pet Device Smart Toy |
| Highlight: | 6V DC Reduction Gear Motor,12V DC Reduction Gear Motor,ASLONG Mini DC Gear Motor |
||

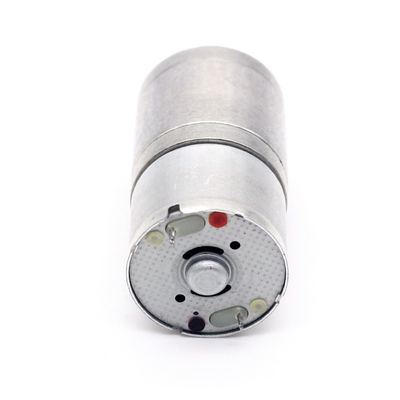

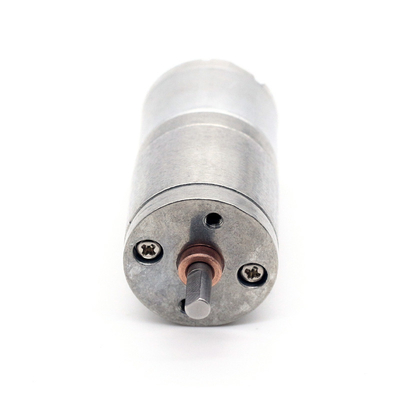

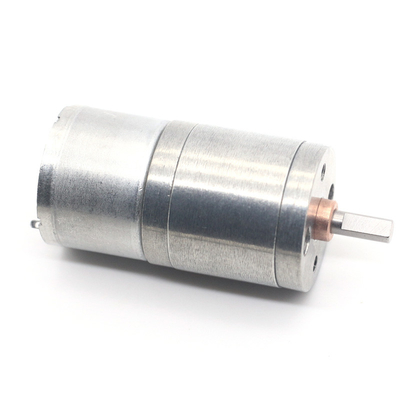

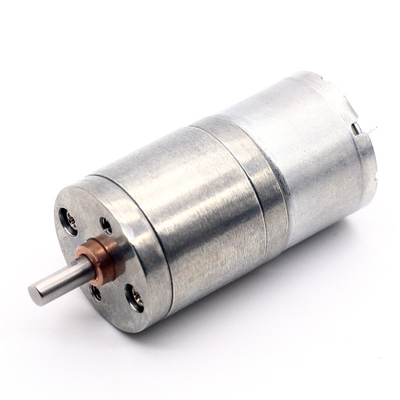

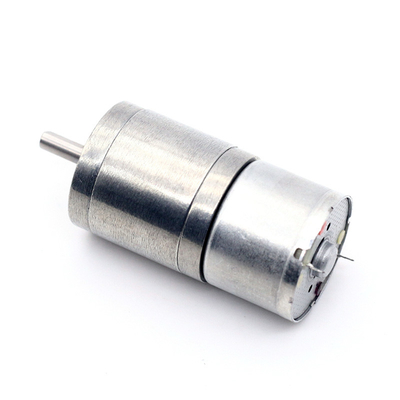

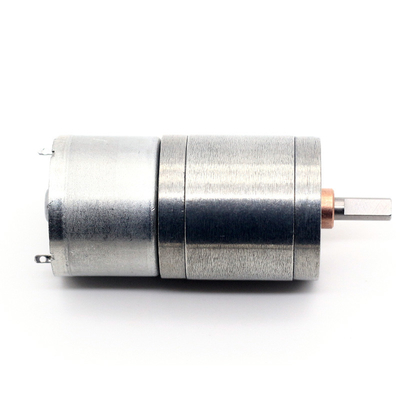

12V High Speed Mini Gear Motor JGA25-310 Reduction Gear Motor 6v Dc Motor With Dia25mm Gearbox Reducer For Pet Device
| JGA25-370 Micro Dc Gear Motor Description: |
Now ,you can get our this 25mm dc gear motor with magnetic encoder(JGA25-370B),and other related 25mm gearbox motors as following:
|
|
|
|
| JGA25-370B | JGA25-310 | JGA25-385 | JGA25-340 |
|
|
|
|
| JGA25-2418 | JGA25-2430 | JGA25-370TC |
JGA25-370DG |
JGA25-310 Mini DC Gear Motor
Drawing:
Datasheet:
| Model | No load | On Load | Stall | Weight | Size(L) | ||||||
| Rated Voltage | Speed | Current | Speed | Current | Torque | Power | Torque | Current | |||
| V | rpm | ma | rpm | ma | Kg.cm | W | Kg.cm | ma | g | mm | |
| JGA25-310-4.4K | 12 | 1800 | 25 | 1280 | 413 | 0.013 | 0.17 | 0.05 | 420 | 62 | 18 |
| JGA25-310-9.6K | 12 | 830 | 25 | 600 | 146 | 0.03 | 0.19 | 0.11 | 420 | 62 | 17.5 |
| JGA25-310-21.3K | 12 | 380 | 25 | 270 | 137 | 0.06 | 0.17 | 0.25 | 420 | 63 | 19 |
| JGA25-310-35.5K | 12 | 225 | 25 | 160 | 143 | 0.1 | 0.17 | 0.42 | 420 | 66 | 21 |
| JGA25-310-46.8K | 12 | 170 | 25 | 120 | 145 | 0.14 | 0.18 | 0.56 | 420 | 66 | 21 |
| JGA25-310-78K | 12 | 100 | 25 | 78 | 120 | 0.21 | 0.17 | 0.75 | 420 | 68 | 23 |
| JGA25-310-103K | 12 | 80 | 25 | 58 | 119 | 0.33 | 0.2 | 1.28 | 420 | 68 | 23 |
| JGA25-310-130K | 12 | 60 | 25 | 50 | 120 | 0.36 | 0.18 | 1.6 | 420 | 70 | 25 |
| JGA25-310-171K | 12 | 45 | 25 | 37.3 | 118 | 0.48 | 0.19 | 2.17 | 420 | 70 | 25 |
| JGA25-310-226K | 12 | 35 | 25 | 27.7 | 134 | 0.77 | 0.22 | 2.5 | 420 | 70 | 25 |
| JGA25-310-377K | 12 | 22 | 25 | 17.7 | 111 | 0.87 | 0.16 | 4.34 | 420 | 71 | 27 |
| JGA25-310-500K | 12 | 16 | 25 | 14.3 | 267 | 1 | 0.16 | 6.96 | 420 | 71 | 27 |
