Product Details:
|
| Usage: | Water | Voltage: | 6V/24V |
|---|---|---|---|
| Power: | Electric | Application: | Coffee Machine.mobile Air Conditioning,Transfer Water |
| Structure: | Gear Pump,Submersible Well Pump | Motor: | DC Brush Motor,DC Gear Motor |
| Working Environment: | Humidity<80%,temperature 0-40℃ | Working Temperature: | 0 ~ 60 Degree Celsius |
| High Light: | 500mA Micro DC Water Pump,ODM 6V Micro DC Water Pump,500mA 6v water pump |
||

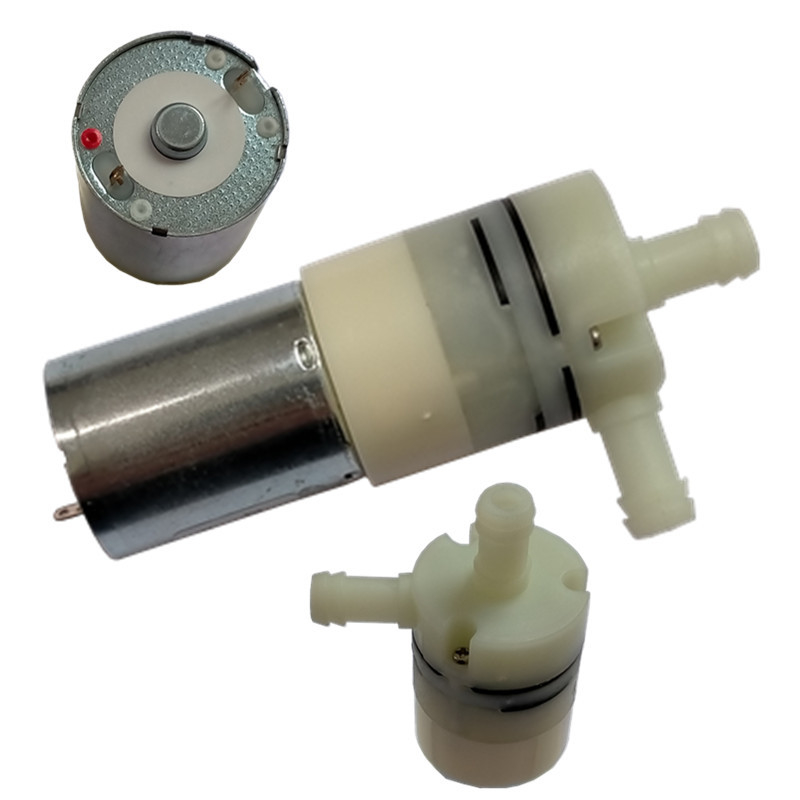

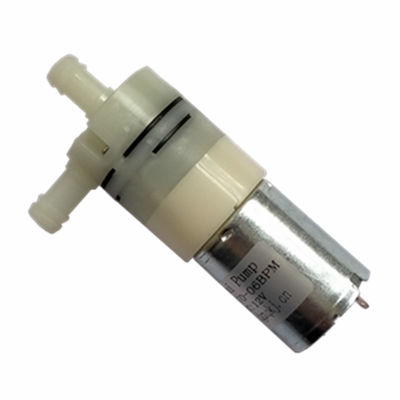

6V Self Priming Micro DC Water Pump 24V 500mA Negative Pressure
Miniature negative pressure pump miniature diaphragm pump 12V miniature water pump 6V self-priming pump DC24V 370 pump
Specification:
| Specification | |||||
| Rated voltage | DC3.7V | DC6.0V | DC12.0V | DC24V | |
| Rated current | <800mA | <500mA | <300mA | <150mA | |
| hydraulic pressure | ＞30PSI(1KG=14.95PSI) | ||||
| Discharge | 1 L/min | custom 0.6-1.5L/min | |||
| Air Negative pressure | <-400mmhg(-55Kpa) | ||||
| Noise | <65dB | ||||
| Apply for | Water | ||||
| Life test | 50.000 Times(ON 10S,OFF 5S as one cycle) | ||||
| Environment | 0-99℃RH75％ | ||||
| Pump head | 2M | ||||
| Suction head | 1M | ||||
| power | 3W | ||||
| * Other parameters: according to customer demand for design |
|||||
* General Service:
* Quick Reply:All enquiry or email be replied in 12 hours, no delay for your business.
* Professional Team:Questions about products will be replied professionally, exactly, best advice to you.
* Short Lead time:Sample or small order sent in 2 days, bulk or customized order about 15 days
* Before shipment:Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
* Language Choice:Besides English, you can use your own language by email, then we can translate it.
* Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
