Product Details:
|
| Power: | Electric | Application: | Water Pump,Transfer Water |
|---|---|---|---|
| Usage: | Water,Science& Teaching Instrument,Cleaning Robot | Structure: | Multistage Pump |
| Fuel: | Electric | Voltage: | DC12v |
| Product Name: | 12 Volt Miniature Water Pump | Motor: | DC Brush Motor |
| Material: | Gear For The Synthesis Of Engineering Plastics | ||
| High Light: | 300mmHg Micro DC Water Pump,ODM Micro DC Water Pump 12V,300mmHg peristaltic water pump |
||

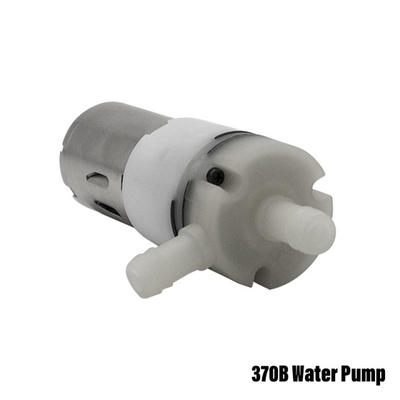

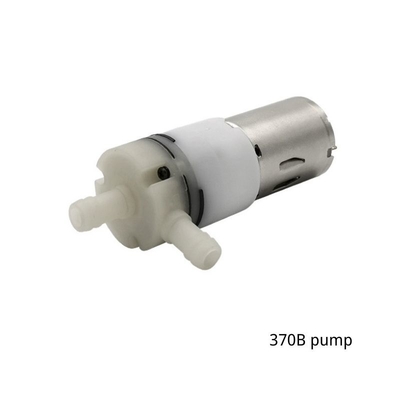

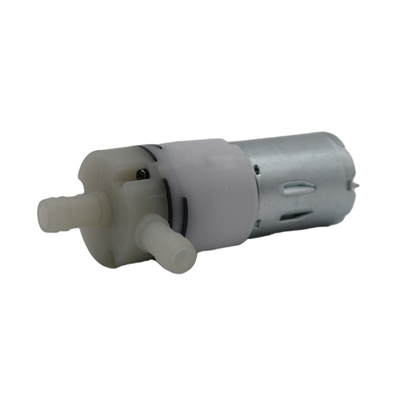

300mmHg Peristaltic Micro DC Water Pump 12V For Drinking DIY Auto Watering Equipment
Micro Peristaltic Water Pump 12V DC Small Mini Water Diaphragm Pump For Drinking DIY Auto Watering Equipment
Specification:

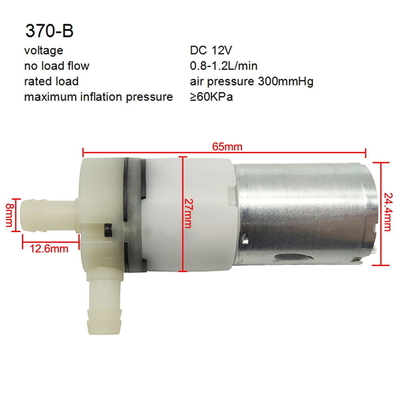

Rated Voltage: DC12V
Load Current:≤100mA
No-load Flow (air): 0.8~1.2L/min
No-load Flow (water): 1000~1200L/min
Rated Load: air pressure 300mmHg
Operating Temperature Range: 5 ~ 45oC
Noise: ≤55dB
Maximum Inflation Pressure: ≥ 60KPa

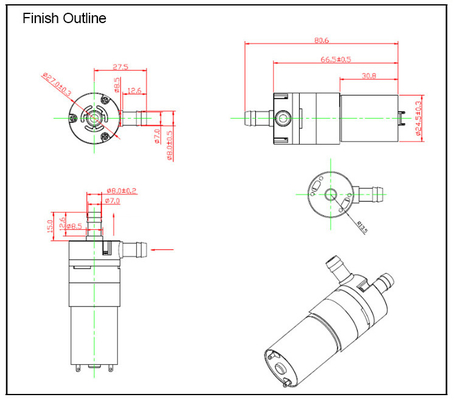

Diameter:about 27mm
Length:60mm
Weight:about 60g
Size:
| Specification | |||||
| Rated voltage | DC3.7V | DC6.0V | DC12.0V | DC24V | |
| Rated current | <800mA | <500mA | <300mA | <150mA | |
| hydraulic pressure | ＞30PSI(1KG=14.95PSI) | ||||
| Discharge | 1 L/min | custom 0.6-1.5L/min | |||
| Air Negative pressure | <-400mmhg(-55Kpa) | ||||
| Noise | <65dB | ||||
| Apply for | Water | ||||
| Life test | 50.000 Times(ON 10S,OFF 5S as one cycle) | ||||
| Environment | 0-99℃RH75％ | ||||
| Pump head | 2M | ||||
| Suction head | 1M | ||||
| power | 3W | ||||
| * Other parameters: according to customer demand for design |
|||||
Shop the 370 water pump
|
Shop now with with 370A pump |
|
Shop now with with 370B pump |
|
Shop now with with 370C pump |
* General Service:
* Quick Reply:All enquiry or email be replied in 12 hours, no delay for your business.
* Professional Team:Questions about products will be replied professionally, exactly, best advice to you.
* Short Lead time:Sample or small order sent in 2 days, bulk or customized order about 15 days
* Before shipment:Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
* Language Choice:Besides English, you can use your own language by email, then we can translate it.
*Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
