Product Details:
|
| Usage: | Household Electronics | Voltage: | 3.7V-24V |
|---|---|---|---|
| Power: | 3W | Application: | Water Pump,Transfer Water |
| Pressure: | Low Pressure | Feature: | Low Noise |
| High Light: | 6V 3w Micro DC Water Pump,65db Micro DC Water Pump,6V 3w self priming water pump |
||

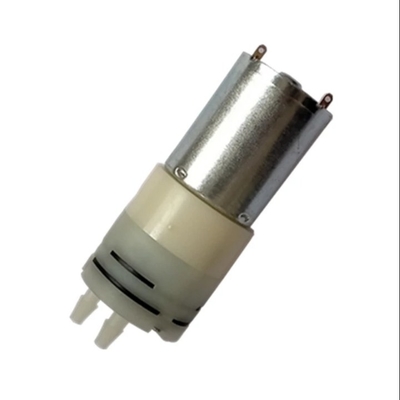

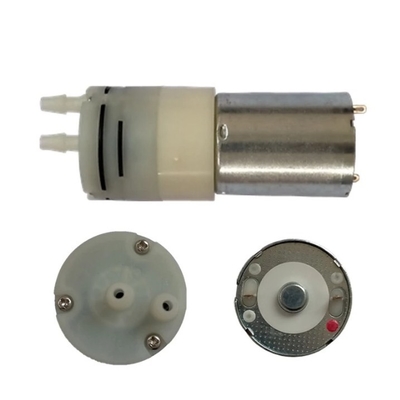

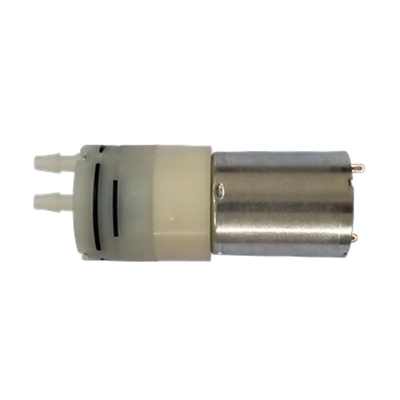

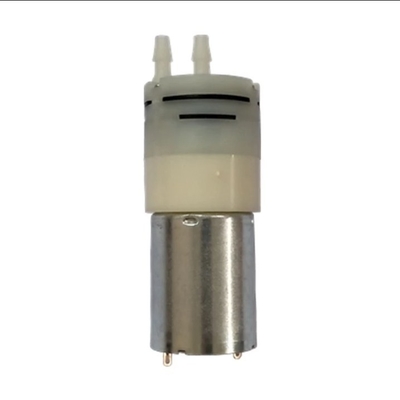

DC 6V Micro DC Water Pump Self Priming 3w Low Noise 65db With 24V Suction
Miniature water pump DC6V small self-priming pump DC12V self-priming pump with 24V suction and high head
Specification:
| Specification | |||||
| Rated voltage | DC3.7V | DC6.0V | DC12.0V | DC24V | |
| Rated current | <800mA | <500mA | <300mA | <150mA | |
| hydraulic pressure | ＞30PSI(1KG=14.95PSI) | ||||
| Discharge | 0.8 L/min | custom 0.4-1L/min | |||
| Air Negative pressure | <-400mmhg(-55Kpa) | ||||
| Noise | <65dB | ||||
| Apply for | Water | ||||
| Life test | 50.000 Times(ON 10S,OFF 5S as one cycle) | ||||
| Environment | 0-99℃RH75％ | ||||
| Pump head | 2M | ||||
| Suction head | 1M | ||||
| power | 3W | ||||
| * Other parameters: according to customer demand for design |
|||||
*General Service:
*Quick Reply:All enquiry or email be replied in 12 hours, no delay for your business.
*Professional Team:Questions about products will be replied professionally, exactly, best advice to you.
*Short Lead time:Sample or small order sent in 2 days, bulk or customized order about 15 days
*Before shipment:Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
*Language Choice:Besides English, you can use your own language by email, then we can translate it.
*Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
