Product Details:
|
| Usage: | Gearbox For Planetary Gear Motor | Stage: | 4 Stage Gear Ratio |
|---|---|---|---|
| Type: | 25mm Micro Planetary Gear Box | Suitable: | 25mm Diametar Dc Motors |
| Product Name: | Micro DC Planetary Gearbox | Diameter: | 25mm |
| Typical Applications: | For Dc Gear Motor 385 395 | Shaft Diameter: | 8MM |
| Highlight: | 385 Small Planetary Gear Motor,25mm Small Planetary Gear Motor,25mm Micro Planetary Gearbox |
||

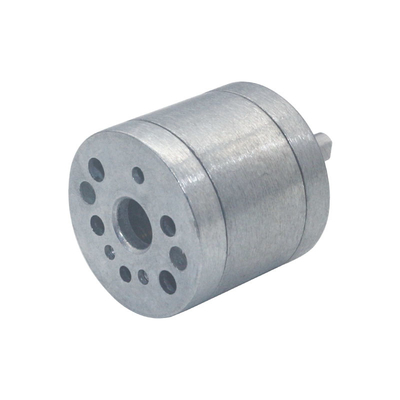

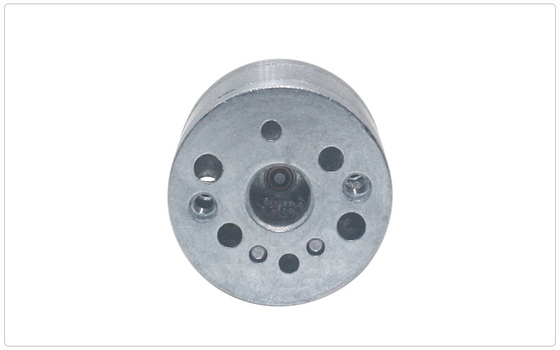

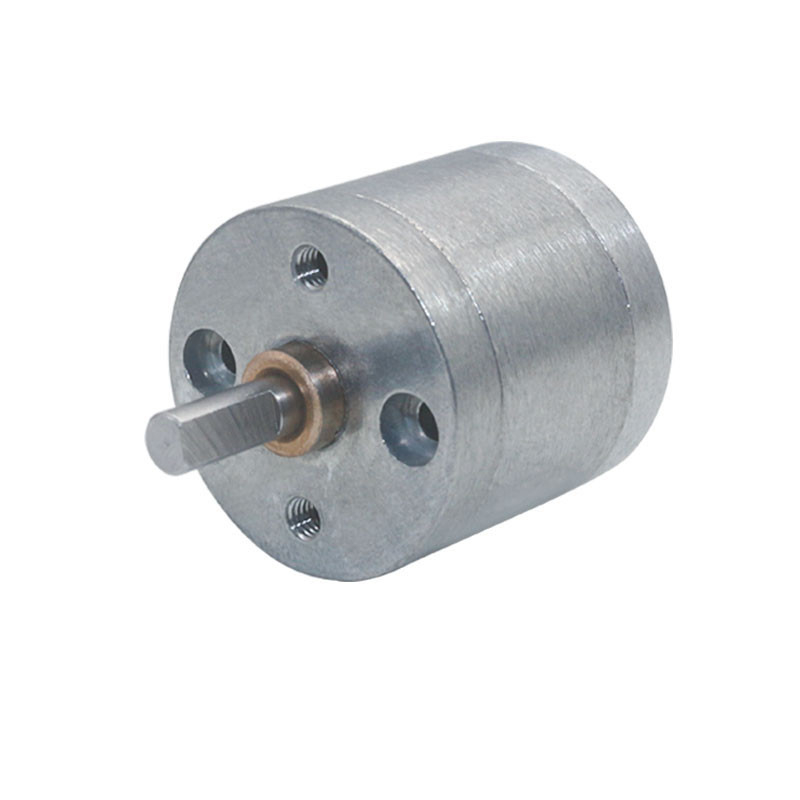

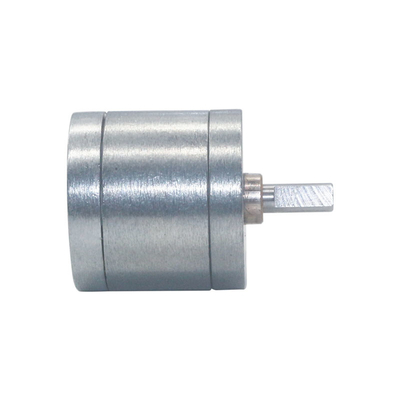

Rosh 385 395 Small Planetary Gear Motor 25mm Micro Planetary Gearbox
25mm gearbox can be equipped with 300 motor 310 motor 2418 motor 370 motor 371 motor
| JGA25-370 Micro Dc Gear Motor Description: |
Now ,you can get our this 25mm dc gear motor with magnetic encoder(JGA25-370B),and other related 25mm gearbox motors as following:
|
|
|
|
| JGA25-370B | JGA25-310 | JGA25-385 | JGA25-340 |
|
|
|
|
| JGA25-2418 | JGA25-2430 | JGA25-370TC |
JGA25-370DG |
Specification:
Optional reduction ratio : 4.4 9.6 35 46 78 103 171 226 377 500 Model: 25GA Gearbox Output shaft diameter: 4.0MM, length 12MM; (D-part 3.5, length 8.0MM) Matching pinion: 2.0 inner hole.
| 25mm gear box | |
|
High-strength ring gear The reduction box adopts gear transmission, High coincidence tooth profile, with balanced operation, Bass, high torque and low backlash characteristics. |
|
Stainless steel material, exquisite and durable Racetrack shaft,stainless steel Can be forward and reverse, move smoothly Large torque and low noise long life |
|
25mm gear Using high-grade low-carbon alloy, after carburizing and quenching it has a hard and wear-resistant surface and a tough heart to ensure the service life of the reducer! |
|
25mm gear Efficient and stable All metal material, good performance Wear resistance and impact resistance Fast heat dissipation Low noise and long service life |
Dimensions (unit:mm):
