JGA25 370 High Torque Small DC Gear Motors With Bracket Coupling 85MM Wheel

JGA25 370 High Torque Small DC Gear Motors With Bracket Coupling 85MM Wheel

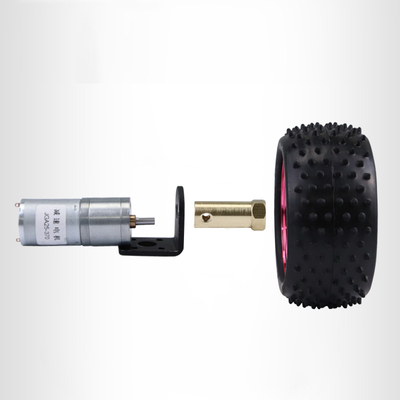

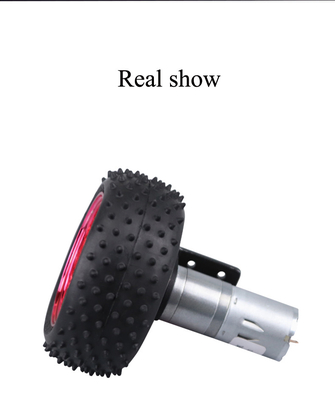

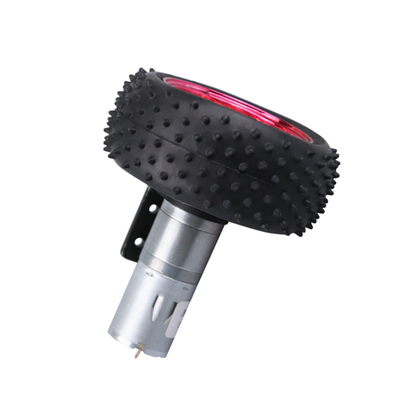

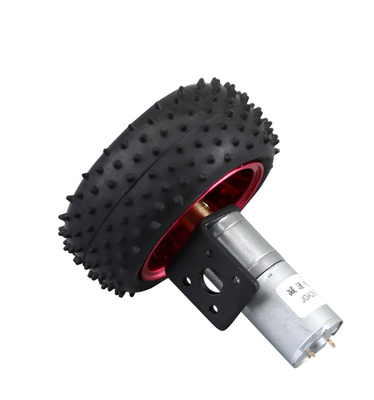

JGA25 370 High Torque 6V 12V 24V DC Gear Motor With Bracket Coupling 85MM Wheel For Smart Car

• Specification:

• Voltage: DC6V 12V 24V

• NO-Load Speed: 12RPM, 16RPM, 35RPM, 60RPM, 77RPM, 130RPM, 170RPM, 280RPM, 620RPM, 1360RPM

• Error: ±5%

• Motor Diameter: 24.5mm

•

  small geared motors Wirings:

  Red Wire - positive power supply of motor(+)

  Black Wire - negative power supply of motor(-) Green Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong; Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong,(5-12v) Yellow Wire - signal feedback (11 signals per motor turns a circle) White Wire - signal feedback (11 signals per motor turns a circle)

• Motor Body Length: 40mm(ref)

• Output Shaft Diameter: 4mm(D-type)

• Output Shaft Length: about 9.5mm

• Gearbox Diameter: 25mm

• Gearbox Size Detal, please see the table

• Parameter table: JGA25-370TC                       Reduction ratio   4.4 9.6 21.3 35 46 78 103 171 226 377 500 No load MA <100 <100 <100 <100 <100 <100 <100 <100 <100 <100 <100 No load RPM 1360 620 280 170 130 77 58 35 25 16 12 Rated KG.CM 0.2 0.4 0.8 1.3 1.7 2.8 3.7 6.8 8.0 9.0 9.0 Rated RPM 1000 450 200 130 100 60 45 25 20 12 9 Rated A <0.75 <0.75 <0.75 <0.75 <0.75 <0.75 <0.75 <0.75 <0.75 <0.75 <0.75 Max torque KG.CM 1.0 2 4.5 7.5 9.0 9.0 9.0 9.0 9.0 9.0 9.0 Stall A 1.3 13 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
