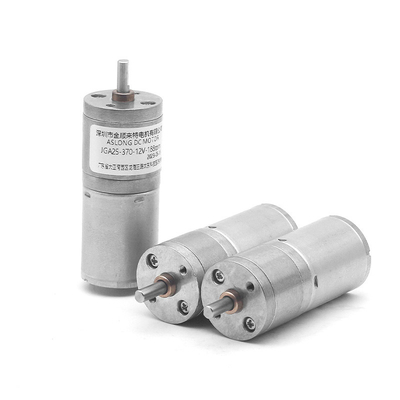

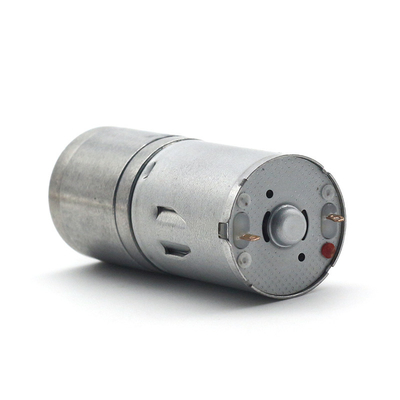

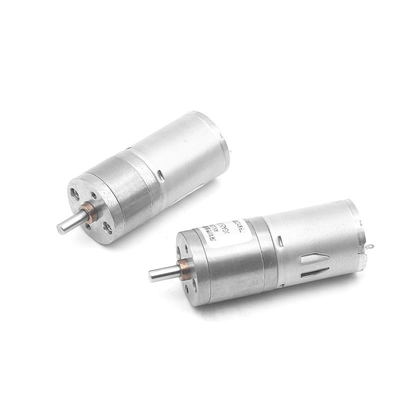

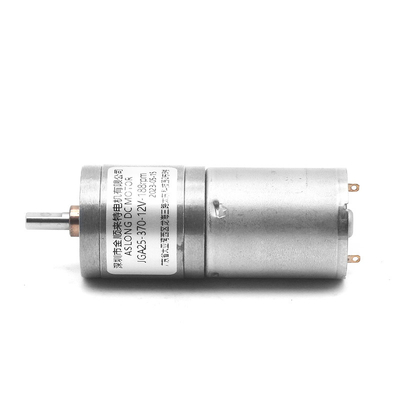

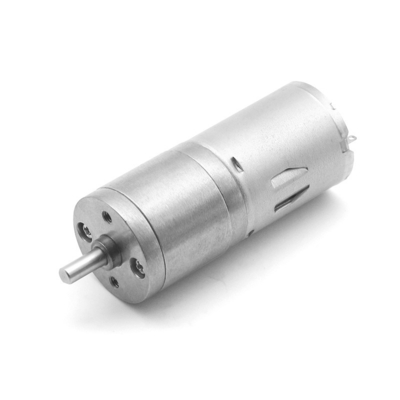

25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed

25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed
25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed 25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed 25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed 25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed 25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed

Large Image :  25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGA25-370-25
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Pieces Per Day

25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed

Description
Type: 25ga370 Dc Motor Commutation: Brush
Speed(rpm): 10-2000rpm Construction: Permanent Magnet
Protect Feature: Totally Enclosed Efficiency: IE 2
Torque: 0.2,9 Application: Automatic Product,toy
Keywords: 1.5v Mini Micro Dc Motor 5v
High Light:

25GA370 25mm Micro DC Gear Motors

,

2000rpm 25ga370 Micro DC Gear Motors

,

2000rpm 25ga370 dc motor

25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed



25GA370 25MM Shaft 6v 12v 24v DC Electric Gear Motor High Torque Reversed Adjusted Speed



Specification:
Performance Range: Key Features: Typical Applications:
- Voltage: 12-24VDC - Multi-speed optional - Electric Curtain
- Speed: 17-2386rpm - Low noise - Electric Valve
- Torque :0.37-28.4Kg.cm - CW/CCW Running - Safe and Locking
- Shaft: D shape (Motor shaft shape and length can be customized) - Adjustable speed - Robot
- Construction:Permanent Magnet - Small Size - Home Appliance,
- Commutation:Brushed DC motor - High Torque - Precise equipment

25GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed 025GA370 25MM Micro DC Gear Motors 6v 12v 24v 2000rpm High Torque Reversed 1

JGA25-370-25
Voltage No Load Load Torque Stall Reducer
A/orkable Rated Speed Current Speed Current Torque Torque Current Ratio
Range Volt.V rpm MA rpm A Kg.cm Kg.cm A 1:00
3-9V 6V 1360 <100 1000 <0.75 0.2 1 1.3 4.4
3-9V 6V 620 <100 450 <0.75 0.4 2 1.3 9.6
3-9V 6V 280 <100 200 <0.75 0.8 4.5 1.3 21.3
3-9V 6V 170 <100 130 <0.75 1.3 7.5 1.3 35
3-9V 6V 130 <100 100 <0.75 1.7 9 1.3 46
3-9V 6V 77 <100 60 <0.75 2.8 9 1.3 78
3-9V 6V 58 <100 45 <0.75 3.7 9 1.3 103
3-9V 6V 35 <100 25 <0.75 6.8 9 1.3 171
3-9V 6V 25 <100 20 <0.75 8 9 13 226
3-9V 6V 16 <100 12 <0.75 9 9 1.3 377
3-9V 6V 12 <100 9 <0.75 9 9 1.3 500

6-18V 12V 1360 <100 1000 <0.75 0.2 1 1.3 4.4
6-18V 12V 620 <100 450 <0.75 0.4 2 1.3 9.6
6-18V 12V 280 <100 200 <0.75 0.8 4.5 1.3 21.3
6-18V 12V 170 <100 130 <0.75 13 7.5 1.3 35
6-18V 12V 130 <100 100 <0.75 1.7 9 1.3 46
6-18V 12V 77 <100 60 <0.75 2.8 9 1.3 78
6-18V 12V 58 <100 45 <0.75 3.7 9 1.3 103
6-18V 12V 35 <100 25 <0.75 6.8 9 1.3 171
6-18V 12V 25 <100 20 <0.75 8 9 1.3 226
6-18V 12V 16 <100 12 <0.75 9 9 1.3 377
6-18V 12V 12 <100 9 <0.75 9 9 1.3 500

12-30V 24V 1360 <60 1000 <0.3 0.2 1 0.8 4.4
12-30V 24V 620 <60 450 <0.3 0.4 2 0.8 9.6
12-30V 24V 280 <60 200 <0.3 0.8 4.5 0.8 21.3
12-30V 24V 170 <60 130 <0.3 13 7.5 0.8 35
12-30V 24V 130 <60 100 <0.3 1.7 9 0.8 46
12-30V 24V 77 <60 60 <0.3 2.8 9 0.8 78
12-30V 24V 58 <60 45 <0.3 3.7 9 0.8 103
12-30V 24V 35 <60 25 <0.3 6.8 9 0.8 171
12-30V 24V 25 <60 20 <0.3 8 9 0.8 226
12-30V 24V 16 <60 12 <0.3 9 9 0.8 377
12-30V 24V 12 <60 9 <0.3 9 9 0.8 500
