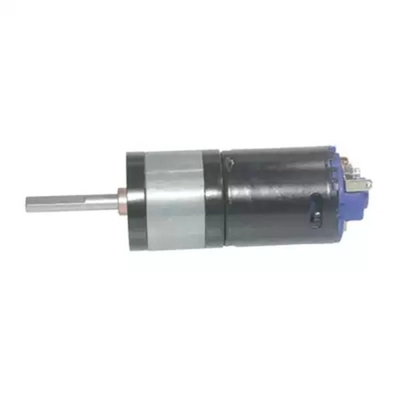

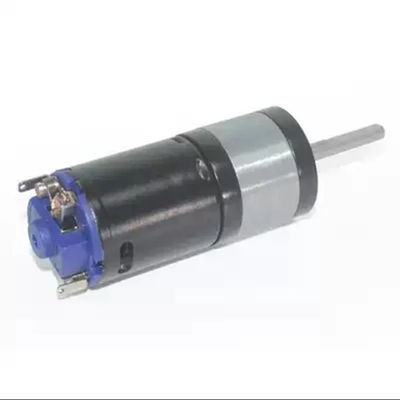

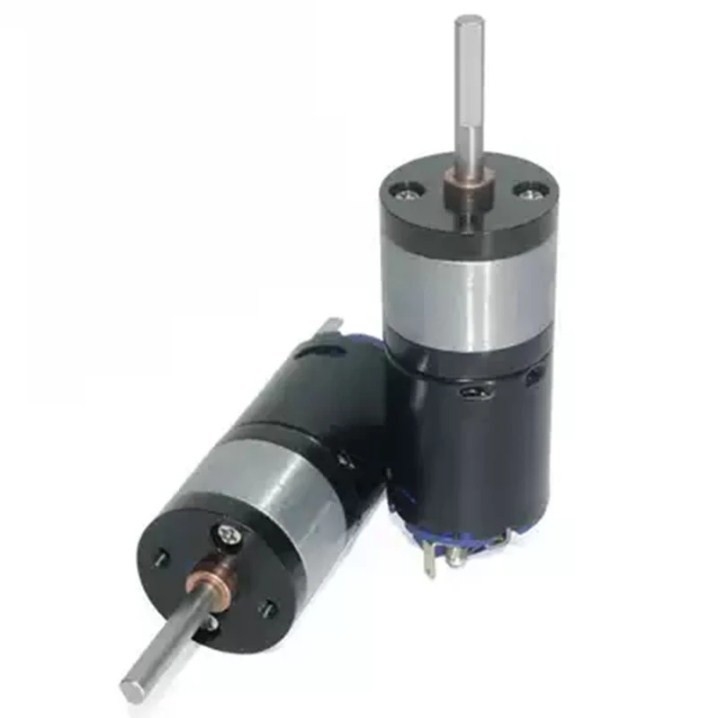

Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm

Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm
Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm

Large Image :  Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGA25-370DG
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Pieces Per Day

Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm

Description
Type: Dual Shaft Dc Gear Motor Commutation: Brush
Speed(rpm): 12-1363rpm Construction: Permanent Magnet
Protect Feature: Totally Enclosed Efficiency: IE 2
Torque: Requests Application: Automatic Product,toy
Keywords: 1.5v Mini Micro Dc Motor 5v PROFUCE NAME: 25mm DC 6v12v Geared Motor Miniature Straight Double Gear Drive High Torque
High Light:

2000rpm dual shaft dc gear motor

,

25mm 2000rpm micro gear motor

,

25mm 2000rpm double shaft gear motor

Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm



25mm DC 6v12v geared motor miniature straight double gear drive high torque



Specification:
Performance Range: Key Features: Typical Applications:
-Voltage: 12-24VDC -Multi-speed optional -Electric Curtain
-Speed: 17-2386rpm -Low noise -Electric Valve
-Torque :0.37-28.4Kg.cm -CW/CCW Running -Safe and Locking
-Shaft: D shape (Motor shaft shape and length can be customized) -Adjustable speed -Robot
-Construction:Permanent Magnet -Small Size -Home Appliance,
-Commutation:Brushed DC motor -High Torque -Precise equipment



Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm 0 Dual gearboxes are better
than high-cost planetary gearboxes High energy efficiency, low cost.
More in line with application requirements High speed motor
High-speed motor. large load torque Low noise, long life.
to 5000 hours
Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm 1 Unique ingenuity and precision manufacturing

Every part Every detail
We work hard to perfect
Keep improving
Just because of professionalism
Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm 2 New double gear transmission design
Upgrade dual gear transmission box
Can replace planetary gearbox High strength, strong rigidity
and large load torque
long life

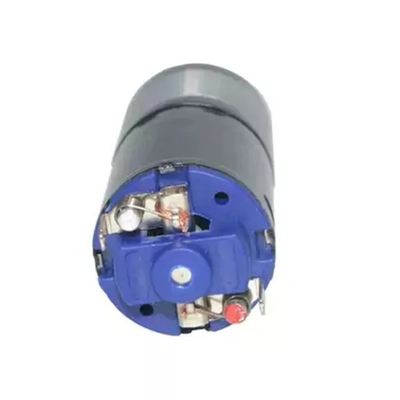

Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm 3 Connection instructions
The ones with red dots are
Power positive

6V 12v 24V any choice
6y 12V 24V are available in different specifications and are directly operated
by the manufacturer, and can be customized in batches with drawings.



Datasheet:



Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm 4

Gear Ratio Rated Voltage No Load Rated Load Stall Extrapolation L Size Weight
Speed Current Torque Speed Current Torque Current
V RPM A Kg.cm RPM A Kg.cm A MM G
4.4 6 2273 0.3 0.1 1864 1.6 0.6 8.5 18 85
9.6 6 1042 0.3 0.3 854 1.6 1.2 8.5 17.5
21.3 6 469 0.3 0.6 385 1.6 2.8 8.5 19 87
35.5 6 282 0.3 1.1 231 1.6 4.6 8.5 21 92
46.8 6 214 0.3 1.4 175 1.6 6.1 8.5
78 6 128 0.3 2.3 105 1.6 10.1 8.5 23 95
103 6 97 0.3 3.1 80 1.6 13.4 8.5
171 6 58 0.3 5.1 48 1.6 22.2 8.5 25 97
226 6 44 0.3 6.8 36 1.6 25 8.5
378 6 26 0.3 11.3 22 1.6 8.5 27 100
500 6 20 0.3 15 16 1.6 8.5

4.4 12 4545 0.4 0.3 3864 2.2 1.2 17 18 85
9.6 12 2083 0.4 0.6 1771 2.2 2.6 17 17.5
21.3 12 939 0.4 1.3 798 2.2 5.8 17 19 87
35.5 12 563 0.4 2.1 479 2.2 9.6 17 21 92
46.8 12 427 0.4 2.8 363 2.2 12.6 17
78 12 256 0.4 4.7 218 2.2 21.1 17 23 95
103 12 194 0.4 6.2 165 2.2 27.8 17
171 12 117 0.4 10.3 99 2.2 Banning block MAX 25KG 17 25 97
226 12 88 0.4 13.6 75 2.2 17
378 12 53 0.4 15 45 2.2 17 27 100
500 12 40 0.4 34 2.2 17
