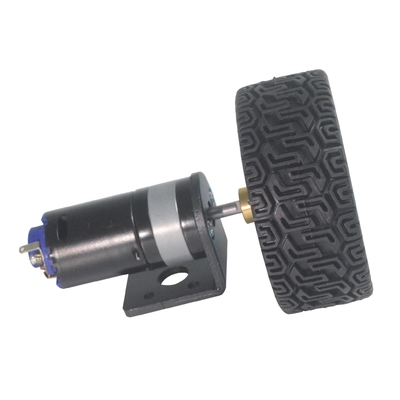

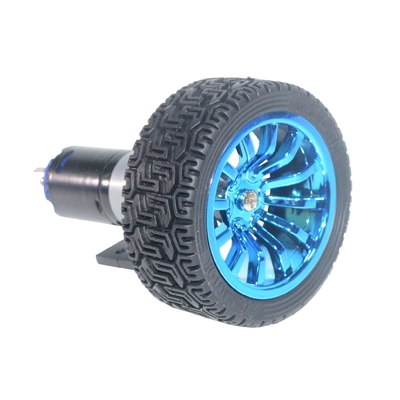

25mm Double Micro DC Gear Motors 12v Dc Motor High Torque Wheel Set

25mm Double Micro DC Gear Motors 12v Dc Motor High Torque Wheel Set
25mm Double Micro DC Gear Motors 12v Dc Motor High Torque Wheel Set 25mm Double Micro DC Gear Motors 12v Dc Motor High Torque Wheel Set 25mm Double Micro DC Gear Motors 12v Dc Motor High Torque Wheel Set 25mm Double Micro DC Gear Motors 12v Dc Motor High Torque Wheel Set

Large Image :  25mm Double Micro DC Gear Motors 12v Dc Motor High Torque Wheel Set

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGA25-370DGT
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Pieces Per Day

25mm Double Micro DC Gear Motors 12v Dc Motor High Torque Wheel Set

Description
Name: 12v Dc Motor High Torque Commutation: Brush
Speed(rpm): 12-1363rpm Construction: Permanent Magnet
Protect Feature: Totally Enclosed Efficiency: IE 2
Torque: Requests Application: Automatic Product,toy
High Light:

1363rpm Micro DC Gear Motors

,

ODM 25mm Micro DC Gear Motors

,

1363rpm 25mm high torque gear motor

25mm Double Micro DC Gear Motors 12v Dc Motor High Torque Wheel Set​



25mm Micro DC Double Gear Drive Motor High Torque 12v Gear Motor Wheel Set



Specification:
  • Voltage: DC6V

No-Load Speed: 12RPM,16RPM,26RPM,35RPM,60RPM,77RPM,130RPM,170RPM,280RPM,620RPM,1360RPM

  • Voltage: DC12V

No-Load Speed:12RPM,16RPM,26RPM,35RPM,60RPM,77RPM,130RPM,170RPM,280RPM,620RPM,1360RPM

Voltage:DC24V:

No-Load Speed:12RPM,16RPM,26RPM,35RPM,60RPM,77RPM,130RPM,170RPM,280RPM,620RPM,1360RPM

  • Error: ±5%

  • Output Shaft Diameter: 4mm D-type

  • Output Shaft Length: 14mm

  • Gearbox Size Detal, please see the table

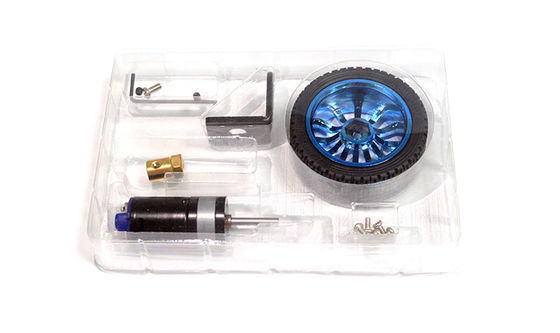

Packing include:
1*gear motor with encoder
1*mouting of motor
1*coupling
5*screws





Datasheet:



25mm Double Micro DC Gear Motors 12v Dc Motor High Torque Wheel Set 0

JGA25-370DG
Rated
voltage
reduction
ratio
No load Rated Stall Gearbox
length
Speed Current Torque Speed Current Torque Current
V R/MIN MA Kg.cm R/MIN MA Kg.cm MA MM
6V 4.4 1363 0.08 0.09 1090 0.49 0.67 2200 18
9.6 625 0.08 0.2 500 0.49 1.47 2200 17.5
21.3 281 0.08 0.44 224 0.49 3.28 2200 19
35.5 169 0.08 0.74 135 0.49 5.46 2200 21
46.8 128 0.08 0.98 102 0.49 7.2 2200
78 76 0.08 1.63 60 0.49 12 2200 23
103 58 0.08 2.16 46 0.49 Ban stall 2200
171 35 0.08 3.59 28 0.49 2200 25
226 26 0.08 4.74 20 0.49 2200
378 15 0.08 7.98 12 0.49 2200 27
500 12 0.08 10.5 9 0.49 2200
12V 4.4 1363 0.05 0.1 1090 0.485 0.82 1400 18
9.6 625 0.05 0.23 500 0.485 1.79 1400 17.5
21.3 281 0.05 0.51 224 0.485 3.98 1400 19
35.5 169 0.05 0.85 135 0.485 6.63 1400 21
46.8 128 0.05 1.12 102 0.485 8.75 1400
78 76 0.05 1.87 60 0.485 14.5 1400 23
103 58 0.05 2.47 46 0.485 Ban stall 1400
171 35 0.05 4.1 28 0.485 1400 25
226 26 0.05 5.42 20 0.485 1400
378 15 0.05 9.07 12 0.485 1400 27
500 12 0.05 12 9 0.485 1400
24V 4.4 1363 0.03 0.11 1090 0.368 0-74 680 18
9.6 625 0.03 0.24 500 0.368 1.6 680 17.5
21.3 281 0.03 0.55 224 0.368 3.62 680 19
35.5 169 0.03 0.92 135 0.368 6.03 680 21
46.8 128 0.03 1.21 102 0.368 7.95 680
78 76 0.03 2.02 60 0.368 13.2 680 23
103 58 0.03 2.67 46 0.368 Ban stall 680
171 35 0.03 4.44 28 0.368 680 25
226 26 0.03 5.87 20 0.368 680
378 15 0.03 9.82 12 0.368 680 27
500 12 0.03 13 9 0.368 680
