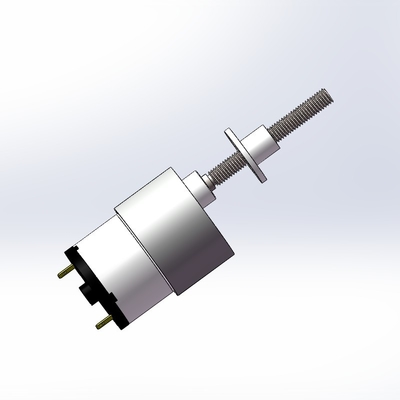

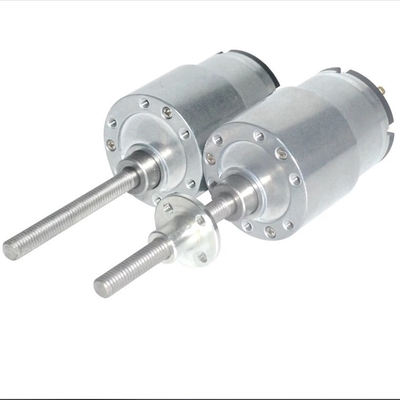

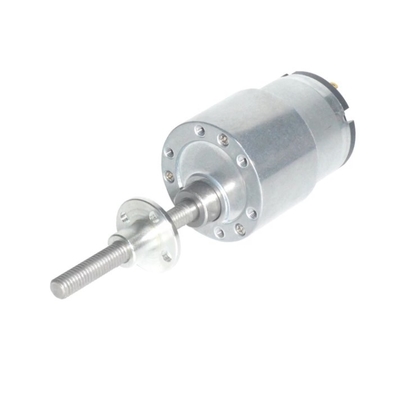

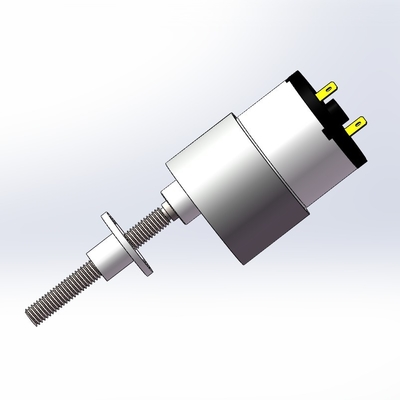

JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared

JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared
JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared

Large Image :  JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGB37-520 M6*50
Payment & Shipping Terms:
Minimum Order Quantity: 100Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 Pieces Per Day

JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared

Description
Type: Micro DC Gear Motor Usage: Home Appliance,door Lock,bicycle
Speed(rpm): 16-381rpm Torque: 0.3-3kg.cm
Voltage(v): 12v Weight: 19g
Size: 37MM Product Name: JGB37-520 M6 Thread 50MM Long Geared Motor DC12V24V Large Torque With Flange Rotating Up And Down
High Light:

JGB37 520 DC Gear Motor

,

M6 12v 24V DC Gear Motor

,

JGB37 520 24 volt gear motor

JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared



JGB37 520 M6 Thread 50MM Long Geared Motor DC12V 24V Large Torque With Flange Rotating Up And Down



General specifications:
* Voltage:12V
* No-load speed:16-381RPM
* No-load current:30mA
* Stall Torque:0.3g-3.3kg.cm
* Stall current:0.7A

Drawing:

JGB37-520
Rated voltage Reduction ratio No load Rated Stall Gearbox
length
Speed Current Torque Speed Current Torque Current
V R/MIN MA Kg.cm R/MIN MA Kg.cm MA MM
12V 6.25 960 60 0.1 750 240 0.6 1200 19
10 600 60 0.15 470 240 1 1200
18.75 320 60 0.3 270 240 1.8 1200 22
30 200 60 0.9 150 240 3 1200
56.25 107 60 2 90 240 5.6 1200 24
90 66 60 3 47 240 9 1200
131 45 60 4 36 240 13 1200 26.5
168 35 60 5 27 240 17 1200
270 22 60 8 16 240 22 1200
506 12 60 16 10 240 Ban stall 1200 29
810 7 60 20 6 240 1200
24V 6.25 960 30 0.1 750 110 0.8 700 19
10 600 30 0.16 470 110 1.3 700
18.75 320 30 0.3 270 110 2.45 700 22
30 200 30 0.9 160 110 3.5 700
56.25 107 30 2 90 110 6.5 700 24
90 66 30 3 50 110 11 700
131 45 30 4.2 38 110 17.5 700 26.5
168 35 30 5.3 28 110 20 700
270 22 30 8.6 16 110 22 700
506 12 30 16 10 110 Ban stall 700 29
810 7 30 20 6 110 700


JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared 0JGB37 520 M6 Thread 24V DC Gear Motor 12v High Torque 50mm Long Geared 1






FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
