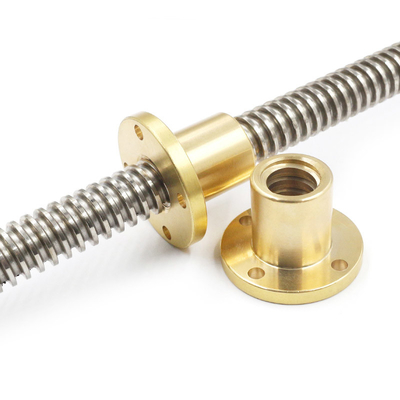

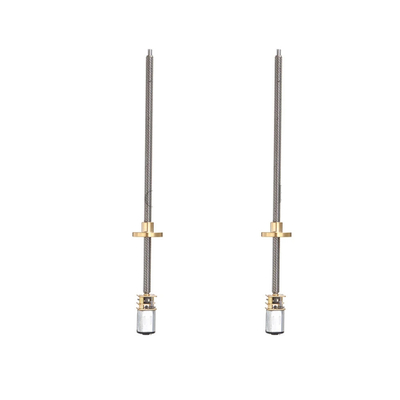

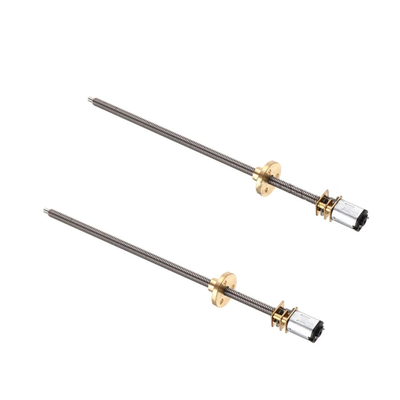

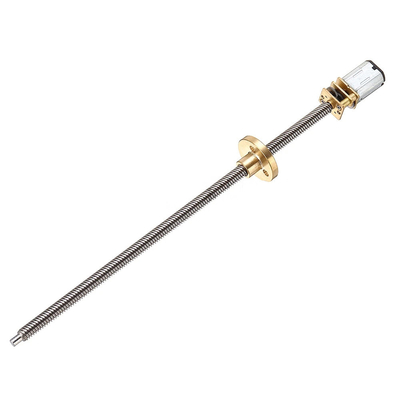

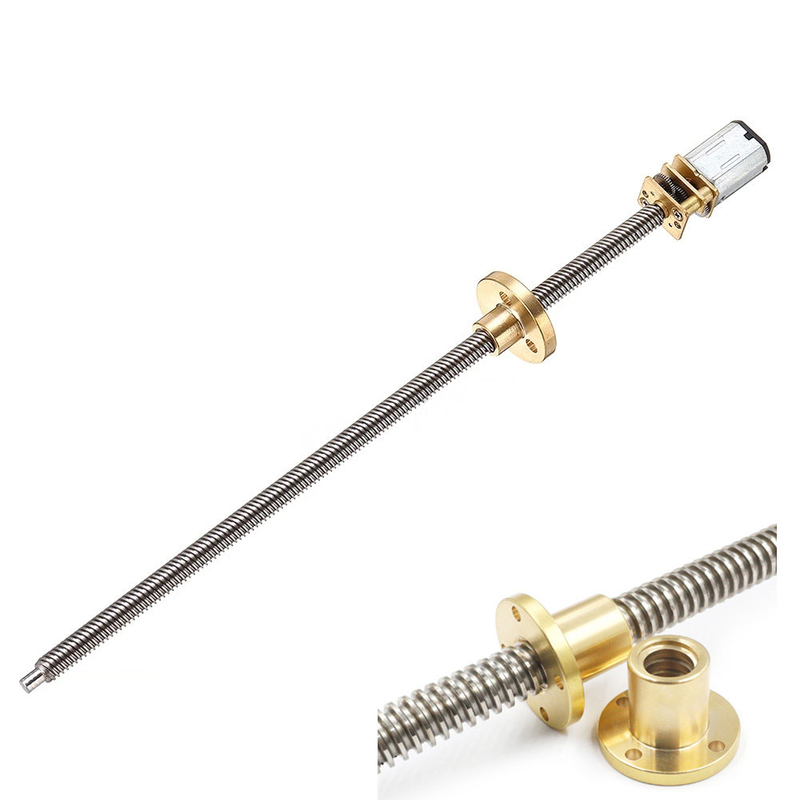

Electric Thread Reduction Small DC Gear Motors Jga12 N20 With Flange

Electric Motors Thread Reduction Motor T5 x 160mm N20 DC Gear Motor With Flange

Feature:

1. Smoother gear transmission, large transmission , low noise, convenient to use.
2. 3 layers of high‑density molecular paint coating, effectively insulate dust, high temperature resistance.
3. The motor has strong power output, low heat dissipation and low loss, good replacement for old or worn electronic deceleration motor.
4. The motor uses metal gears, which are wear‑resistant, avoid tooth breakage and have a long service life.
5. DC motors, mainly suitable for electronic locks, smart car, robots, cameras, etc.

Specification:

Conditon: 100% Brand New
Item Type: Thread Reduction Motor
Material: Copper
Color: As Pictures Shown

Model: N20

Optional Parameter: DC6V 30RPMDC,6V 60RPM,DC6V 100RPM,DC6V 150RPM,DC6V 200RPM,DC12V 60RPM,DC12V 120RPM,DC12V 200RPM,DC12V 300RPM,DC12V 400RPM
Shaft Length: Approx. 160mm/6.3in
Motor Type: Brushed DC Motor
Application: Suitable for electronic locks, smart car, robots, cameras, etc.

•

• Datasheet:

  Model	Datasheet
  	Voltage (V)		No load		Load			Stall
  JGA12-N20	Voltage range	Rated voltage	Speed RPM	Current A	Speed RPM	Current A	Torque KG.CM	Torque KG.CM	Current A
  12GAN20-10	1.5-5	3	1000	0.03	700	0.08	0.02	0.30	0.3
  12G.AN20-10	1.5-5	3	500	0.01	400	0.03	0.05	0.40	0.1
  12GAN20-20	1.5-5	3	250	0.14	200	0.2	0.07	0.56	0.5
  12G.AN20-30	1.5-5	3	200	0.03	160	0.07	0.09	0.70	0.18
  12GAN20-30	1.5-5	3	150	0.01	120	0.03	0.10	0.80	0.23
  12GAN20-50	1.5-5	3	100	0.01	SO	0.02	0.11	1.00	0.17
  12GAN20-100	1.5-5	3	75	0.02		004	015	1.20	0.29
  12GAN20-200	1.5-5	3	50	0.01	40	0.02	0.20	1.60	1.0
  12G.AN20-29S	1.5-5	3	30	0.01	25	0.02	0.26	2.00	1.0
  12GAN20-29S	1.5-5	3	25	0.02	20	0.04	0.50	4.00	1.0
  12G.AN20-29S	1.5-5	3	15	0.01	10	0.04	0.50	4.00	1.0
  12G.AN20-10	3-9	6	2000	0.04	1500	0.15	0.02	0.30	0.5
  12G.AN20-10	3-9	6	1000	0.01	SOO	0.03	0.06	0.40	0.16
  12GAN20-20	3-9	6	500	0.16	400	0.23	0.15	1.00	0.56
  12G.AN20-30	3-9	6	400	0.04	340	0.07	0.17	1.40	0.2
  12GAN20-30	3-9	6	300	0.03	240	0.04	0.20	1.60	0.2
  12G.AN20-50	3-9	6	200	0.03	160	0.06	0.30	1.80	0.23
  12GAN20-100	3-9	6	150	0.03	120	0.05	0.35	2.40	0.25
  12G.AN20-200	3-9	6	100	0.01	SO	0.03	0.40	3.20	1.0
  12G.AN20-298	3-9	6	60	0.03	50	0.05	0.60	3.20	1.0
  12GAN20-29S	3-9	6	50	0.02	40	0.05	1.50	10.00	1.0
  12G.AN20-29S	3-9	6	30	0.02	25	0.04	1.50	10.00	1.0
  12G.AN20-10	6-12	12	4000	0.16	3000	0.34	0.04	0.60	0.6
  12GAN20-10	6-12	12	2000	0.02	1600	0.06	0.12	1.00	0.35
  12G.AN20-20	6-12	12	1000	0.19	SOO	028	0.30	2.40	0.6
  12G.AN20-30	6-12	12	SOO	0.11	700	0.16	0.35	3.00	0.4
  12GAN20-30	6-12	12	600	0.03	500	0.07	0.40	3.20	0.2
  12GAN20-50	6-12	12	400	0.11	340	0.17	0.50	4.00	0.3
  12GAN20-100	6-12	12	300	0.05	240	0.09	0.60	4.00	0.3
  12G.AN20-200	6-12	12	200	0.02	160	0.04	1.00	7.00	1.0
  12G.AN20-298	6-12	12	130	o,n	100	0.1S	1.50	9.00	1.0
  12GAN20-29S	6-12	12	100	0.04	80	0.07	2.00	16.00	1.0
  12G.AN20-29S	6-12	12	60	0.04	40	0.06	2.00	16.00	1.0
