JGA25-370 25mm Micro DC Gear Motors with 370 dc motor

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

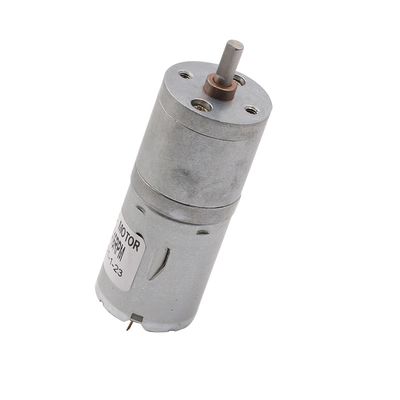

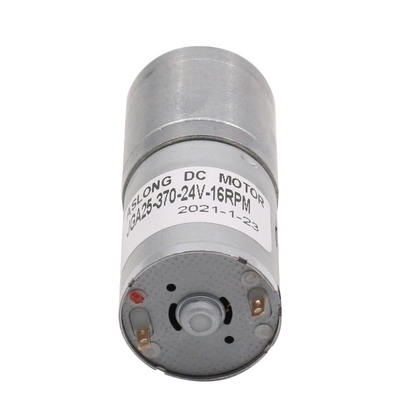

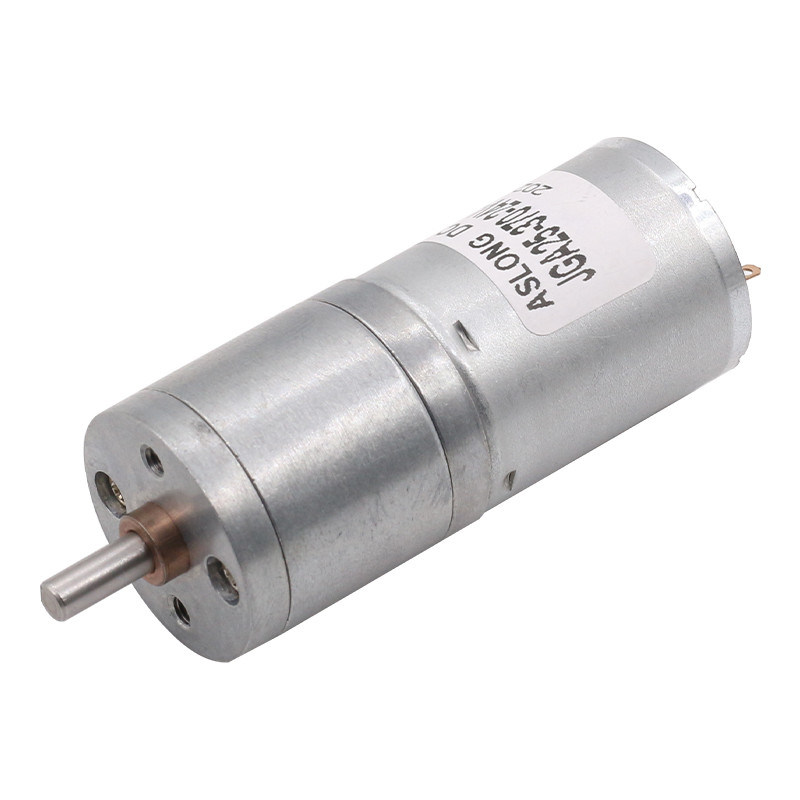

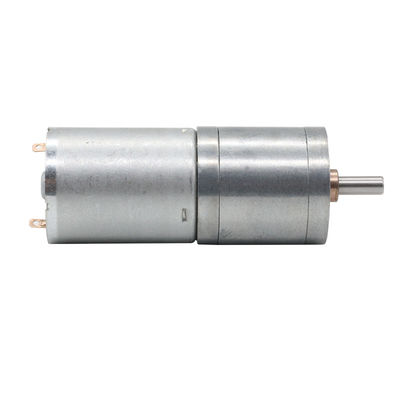

JGA25-370 25mm Micro DC Gear Motors with 370 dc motor

JGA25-370 25mm Micro DC Gear Motors with 370 dc motor
JGA25-370 25mm Micro DC Gear Motors with 370 dc motor
JGA25-370 25mm Micro DC Gear Motors with 370 dc motor JGA25-370 25mm Micro DC Gear Motors with 370 dc motor JGA25-370 25mm Micro DC Gear Motors with 370 dc motor JGA25-370 25mm Micro DC Gear Motors with 370 dc motor JGA25-370 25mm Micro DC Gear Motors with 370 dc motor

Large Image :  JGA25-370 25mm Micro DC Gear Motors with 370 dc motor

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGA25-370
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: usd3.5-4.3Per Piece
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Pieces Per Day

JGA25-370 25mm Micro DC Gear Motors with 370 dc motor

Description
Type: Gear Motor Commutation: Brush
Speed(rpm): 10-2000rpm Construction: Permanent Magnet
Protect Feature: Totally Enclosed Efficiency: IE 1
Torque: Requests Application: Automatic Product,toy
Keywords: 1.5v Mini Micro Dc Motor 5v
High Light:

25mm Micro DC Gear Motors

,

JGA25-370 Micro DC Gear Motors

,

JGA25-370 micro gear motor

JGA25-370 25mm Micro DC Gear Motors



Micro dc gear motors JGA25-370 25mm brushed dc motor D shaft metal gears motor for full fuction car model







  JGA25-370 Micro Dc Gear Motor Description:

1. Name of the motor : JGA25-370 Micro DC Geared Motor 6V 12V 24V

2. Rated voltage have DC 6V, DC 12V and DC 24V

3. DC 6V ; You can choose the no load speed have :

12rpm/16rpm/26rpm/35rpm/46rpm/60rpm/77rpm/130rpm/170rpm/280rpm/620rpm/1360rpm

Rated torque between 0.07 To 8.3 KG.CM; stall torque: between 0.4-9.1KG.cm, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 6V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.



4. DC 12V ; You can choose the no load speed have :

12rpm/16rpm/18rpm/23rpm/26rpm/35rpm/39rpm/46rpm/50rpm/60rpm/77rpm/85rpm/110rpm/130rpm/170rpm/190rpm/250rpm/280rpm/400rpm/620rpm/915rpm/1360rpm/1930rpm

Rated torque between 0.1 To 9.7 KG.CM; stall torque: between 0.4-9.2KG.CM, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.



5. DC 24V ; You can choose the no load speed have :

12rpm/16rpm/26rpm/35rpm/46rpm/60rpm/77rpm/130rpm/170rpm/280rpm/620rpm/1360rpm

Rated torque between 0.1 To 9.7 KG.CM; stall torque: between 0.4-9.2KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.



6. Direction of rotation of the motor: CW Or CCW, Support Reversed;

Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected



7. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.



8. Gear material: Metal gears make the motor last longer



9. The speed of the motor can be adjusted using the speed controller.



10. The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.

When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.



11. Motor DC power connection is safe; the experiment proves that the motor voltage is lower than 36V without any danger.



12. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.

For example, Electric curtains ; Billboard motors ; Household appliances etc.

  • JGA25-370 Dc motor with Gearbox Specs:

  • High quality and 100% brand new
  • Rated volt: 6v 12v 24v
  • No load speed: 12/16/26/35/60/77/130/170/280/620/1360 RPM
  • Welcome to our store,Factory supply,Provide customized service for order over 100 pcs.



25MM dc geared motor Dimension:



JGA25-370 25mm Micro DC Gear Motors with 370 dc motor 0





Datasheet:



  No load On Load Stall
Rated Voltage rpm Current(ma) rpm Current(ma) Torque(Kg.cm) Output(W) Torque(Kg.cm) Current(ma) Ratio (1:1) Size(L)
6v 1363 80 1090 380 0.1 2 0.8 900 4.4 18
6v 646 80 516 380 0.23 2 1.5 900 9.6 17.5
6v 281 80 238 380 0.5 2 4 900 21 19
6v 176 80 150 380 0.85 2 5 900 35 21
6v 133 80 113 380 1.1 2 6 900 45 21
6v 77 80 65 380 1.95 2 10 900 78 23
6v 58 80 46 380 3 2 15 900 103 25
6v 35 80 28 380 4 2 25 900 171 25
6v 26 80 20 380 5 2 35 900 226 27
6v 16 80 13 380 9 2 Forbidden 900 377 27
6v 12 80 10 380 10 2 Forbidden 900 500 18
12v 1931 50 1351 250 0.11 4 0.44 1200 4.4 17.5
12v 915 50 640 250 0.24 4 1 1200 9.6 19
12v 399 50 279 250 0.55 4 2.2 1200 21 21
12v 250 50 175 240 0.95 4 38 1200 35 21
12v 188 50 131 240 1.26 4 5 1200 45 23
12v 108 50 75 240 2.1 4 8.4 1200 78 23
12v 82 50 57 240 2.88 4 11 1200 103 25
12v 50 50 40 240 4.78 4 18 1200 171 25
12v 37 50 29 240 6.3 4 14 1200 226 27
12v 22 50 17 240 10 4 Forbidden 1200 377 27
12v 17 50 13 240 14 4 Forbidden 1200 500 18
24v 863 10 604 70 0.083 1 0.4 220 4.4 17.5
24v 409 10 280 70 0.17 1 0.88 220 9.6 19
24v 178 10 125 70 0.4 1 2 220 21 21
24v 111 10 80 70 0.64 1 3.2 220 35 21
24v 84 10 60 70 0.85 1 4.2 220 45 23
24v 48 10 35 70 1.4 1 7.4 220 78 23
24v 36 10 25 70 1.9 1 9.5 220 103 23
24v 22 10 15 70 3.2 1 16 220 171 25
24v 17 10 12 70 4.2 1 21 220 226 25
24v 10 10 7 70 7 1 35 220 377 27
24v 7.5 10 5 70 9.5 1 47 220 500 27
