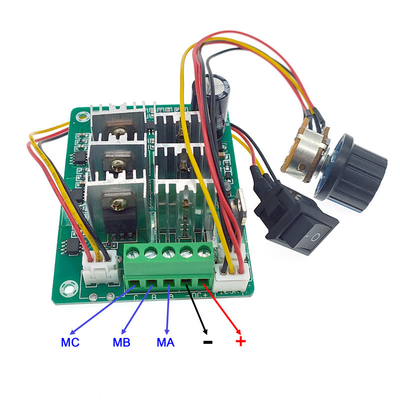

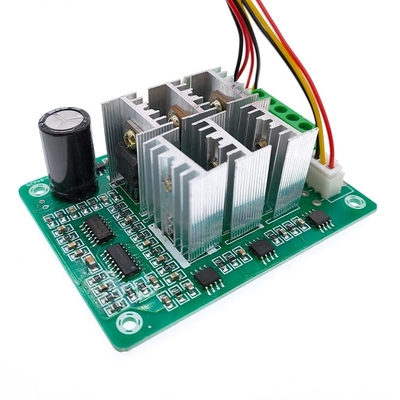

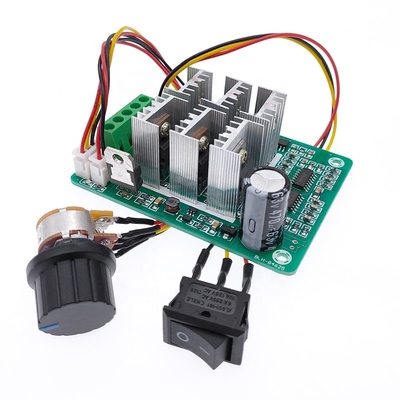

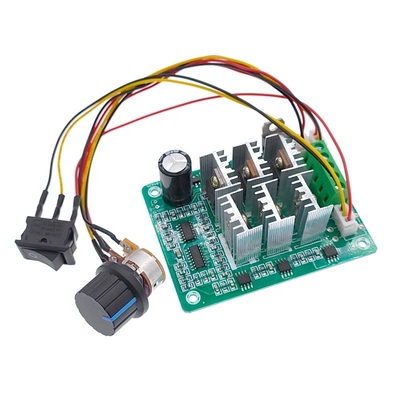

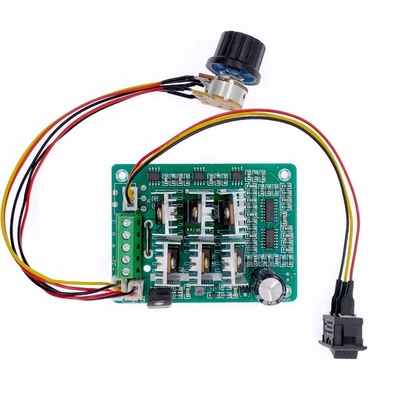

12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers

12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers
12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers 12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers 12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers 12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers 12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers

Large Image :  12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: Rosh,CE
Model Number: BLDC-1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: bubble + carton
Delivery Time: 5-8working days
Payment Terms: T/T, MoneyGram
Supply Ability: 10000pcs/Week

12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers

Description
Motor Type: BLDC Motor Application: Motor Speed Controller
Product Name: Curtis Dc Motor Controller Weight: 120g
Input Voltage: DC5-36V
High Light:

15A 180W Dc Motor Controller

,

12v 180W Dc Motor Controller

,

15A 180W Motor Speed Controllers

12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers



Three Phase 12v Dc BLDC Motor Speed Controller 15A Violent Fan Modulation Forward And Reverse Brushless Dc Motor



Product Description
Be careful:

1.The input must be divided into positive negative poles (do not reverse it)
2.The input voltage should be equal to the rated voltage of the motor (DC5 to 36V).
3.DO NOT INPUT AC220V or burn down directly
4.The PWM controller must be loaded with equipment in order to work properly. Please do not test without load.

Input vol
DC5-36V (Equal to the rated voltage of the motor )
Speed adjust range
0-100%
overload protection
15A
Forward reverse
YES
Speed regulation mode
270 degrees of linear potentiometers (with switch)
Applicable motor
DC three-phase brushless motor
OutPut current
15A
MAX POWER
12V*15A=180W



Features:

  • Using PWM speed control technology, with high conversion efficiency, wide speed range, and stable performance.
  • Adopting imported semiconductor chips, and had tested the voltage, current, function etc. So the circuit is stable and reliable.
  • Overload short circuit protection and the current no more than 30 seconds.
  • Potentiometer is used to speed up the positive and negative switch for forward, reverse, and stop.

Specifications:

  • The resistance value of a resistor: B10K
  • Cable length: approx. 20cm/7.87''
  • resistor mounting hole: 8mm
  • Voltage: DC 10V-30V( wide range)
  • Working voltage: 12v*3A=36W/24V*3A=72W Maximum up to 120W
  • Rated current: 3A(Maximum continuous output current)
  • Maximum current: 4A
  • Modulation range: 5%-95%
  • PWM frequency: 500HZ
  • Module size: approx.74*47*28mm/2.91*1.85*1.10''
  • Gross weight: approx. 33g



Note:

  • DC motor speed control input is DC, can not directly connect AC current (such as the 220V AC) otherwise it will burn.
  • The positive and negative poles of the DC power supply can not be reversed, Otherwise the governor will damage.
  • Motor can be divided into positive and negative, when the direction of operation and expectations are inconsistent, you can change the direction of the alignment.
  • The potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.
  • Please allow 1-3mm differs due to manual measurement.



12v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers 012v Dc BLDC Three Phase Dc Motor Controller 15A 180W Motor Speed Controllers 1
