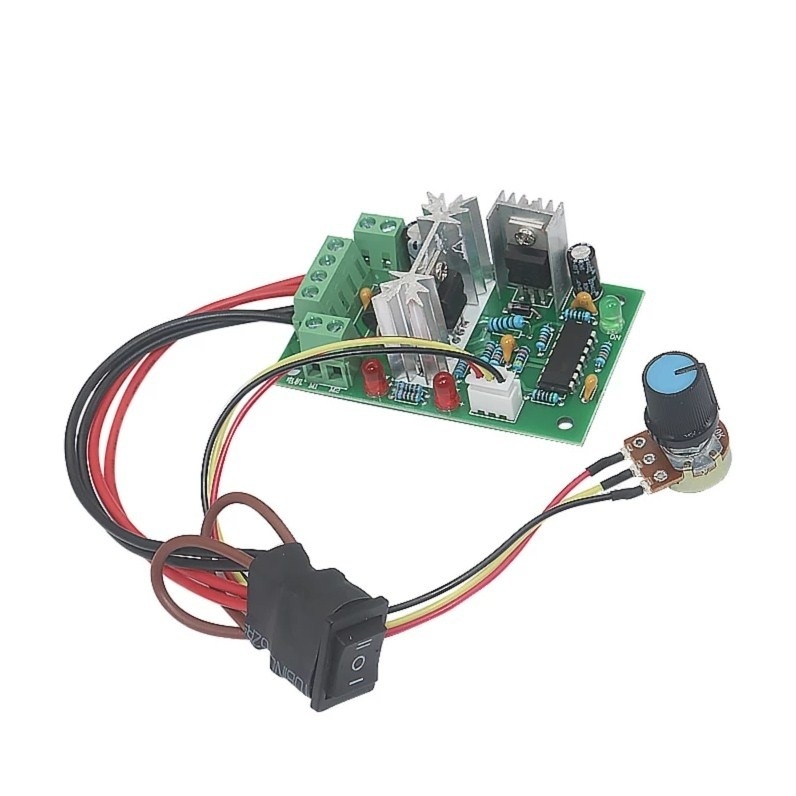

Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM

Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM
Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM

Large Image :  Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: Rosh,CE
Model Number: CCM2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: 6.99UDS/pcs
Packaging Details: bubble + carton
Delivery Time: 5-8working days
Payment Terms: T/T, MoneyGram
Supply Ability: 10000pcs/Week

Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM

Description
Application: Control Motor Speed Type: Motor Speed Controller
Weight: 70g Size: 74*47*28mm/2.91*1.85*1.10''
High Light:

ODM PWM DC Motor Controller

,

120W DC Motor Controller 24v

,

120W motor speed controller

Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM



CCM2 10-30V DC Motor Speed Controller Reversible Switch 120W PWM Adjustable Motor Speed Regulator



Features:

  • Using PWM speed control technology, with high conversion efficiency, wide speed range, and stable performance.
  • Adopting imported semiconductor chips, and had tested the voltage, current, function etc. So the circuit is stable and reliable.
  • Overload short circuit protection and the current no more than 30 seconds.

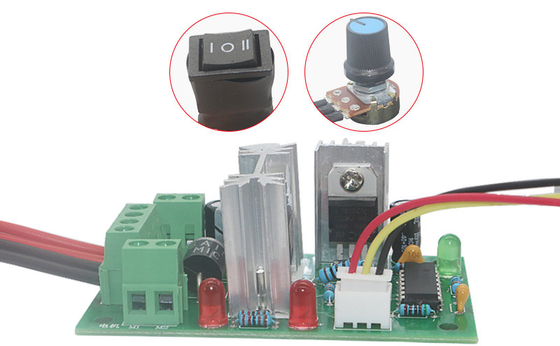

  • Potentiometer is used to speed up the positive and negative switch for forward, reverse, and stop.

Specifications:

  • The resistance value of a resistor: B10K
  • Cable length: approx. 20cm/7.87''
  • resistor mounting hole: 8mm
  • Voltage: DC 10V-30V( wide range)
  • Working voltage: 12v*3A=36W/24V*3A=72W Maximum up to 120W
  • Rated current: 3A(Maximum continuous output current)
  • Maximum current: 4A
  • Modulation range: 5%-95%
  • PWM frequency: 500HZ

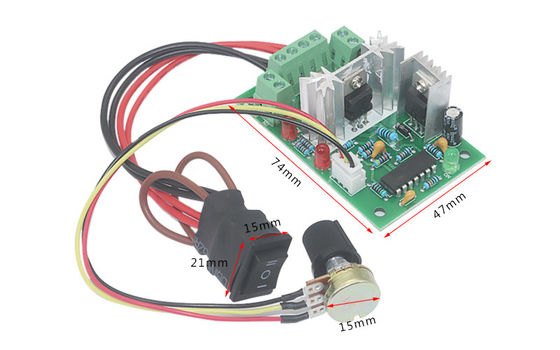

  • Module size: approx.74*47*28mm/2.91*1.85*1.10''
  • Net weight: approx. 66g
  • Gross weight: approx. 70g

Note:

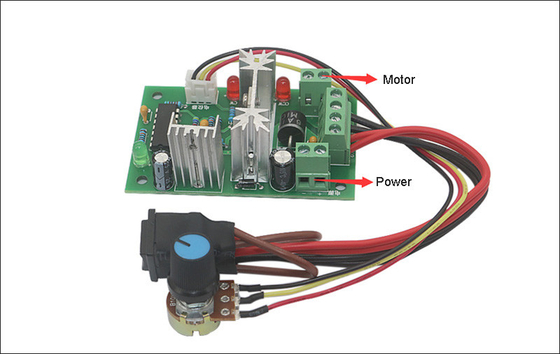

  • DC motor speed control input is DC, can not directly connect AC current (such as the 220V AC) otherwise it will burn.
  • The positive and negative poles of the DC power supply can not be reversed, Otherwise the governor will damage.
  • Motor can be divided into positive and negative, when the direction of operation and expectations are inconsistent, you can change the direction of the alignment.
  • The potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.
  • Please allow 1-3mm differs due to manual measurement.

Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM 0Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM 1Reversible Switch PWM DC Motor Controller 24v 120W CCM2 ODM OEM 2
