Miniature Pwm 12 Volt DC Motor Controller 72W Dc Speed Controllers

Description
Motor Type: DC Motor Application: Motor
Product Name: Curtis Dc Motor Controller Weight: 33g
High Light:

72W 12 Volt DC Motor Controller

,

72W Pwm DC Motor Controller

,

72W Dc Speed Controllers

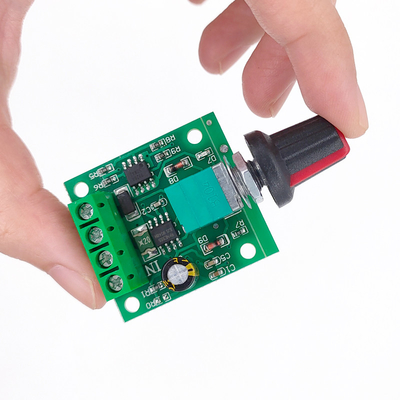

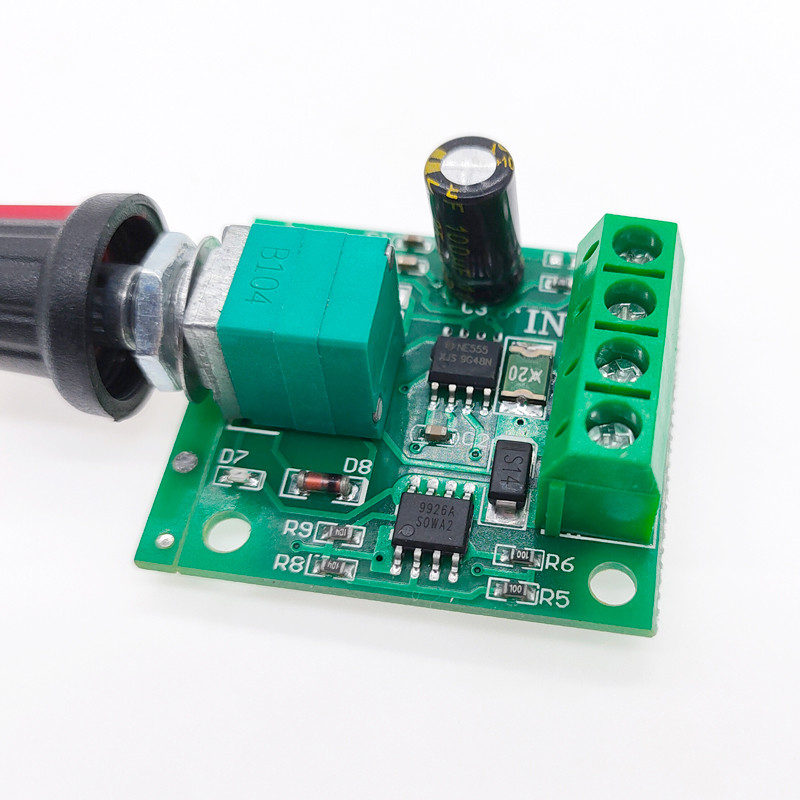

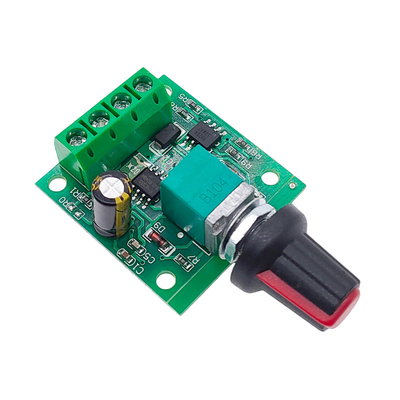

Miniature Pwm 12 Volt DC Motor Controller 72W Dc Speed Controllers



Miniature pwm controller 0~100% adjustable drive module 12v dc motor speed controller dc motor controller



The PWM controller must be loaded with equipment in order to work properly. Please do not test without load.


Input voltage
DC1.8-12V
Continuous current
less than 2A



Features:

  • Using PWM speed control technology, with high conversion efficiency, wide speed range, and stable performance.
  • Adopting imported semiconductor chips, and had tested the voltage, current, function etc. So the circuit is stable and reliable.
  • Overload short circuit protection and the current no more than 30 seconds.
  • Potentiometer is used to speed up the positive and negative switch for forward, reverse, and stop.
  •

Specifications:

  • The resistance value of a resistor: B10K
  • Cable length: approx. 20cm/7.87''
  • resistor mounting hole: 8mm
  • Voltage: DC 10V-30V( wide range)
  • Working voltage: 12v*3A=36W/24V*3A=72W Maximum up to 120W
  • Rated current: 3A(Maximum continuous output current)
  • Maximum current: 4A
  • Modulation range: 5%-95%
  • PWM frequency: 500HZ
  • Module size: approx.74*47*28mm/2.91*1.85*1.10''
  • Gross weight: approx. 33g



Note:

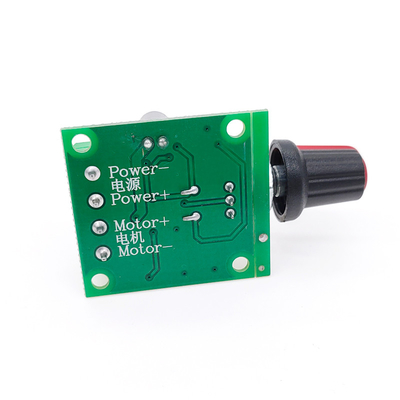

  • DC motor speed control input is DC, can not directly connect AC current (such as the 220V AC) otherwise it will burn.
  • The positive and negative poles of the DC power supply can not be reversed, Otherwise the governor will damage.
  • Motor can be divided into positive and negative, when the direction of operation and expectations are inconsistent, you can change the direction of the alignment.

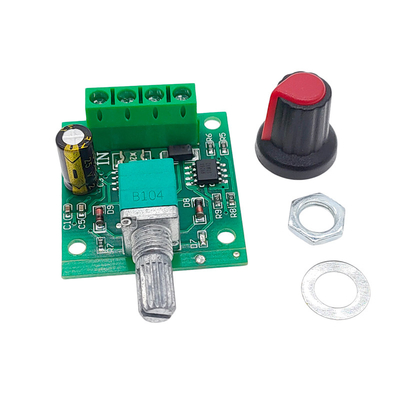

  • The potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.
  • Please allow 1-3mm differs due to manual measurement.
