Product Details:
|
Speed(rpm): | 4000-8000RPM | Voltage: | 12V/24V |
---|---|---|---|
Motor Step Height: | 4.5mm | Type: | Vibration Motor |
Highlight: | RS 775 9300RPM DC Vibration Motor,9300RPM DC Vibration Motor,9300RPM rs 775 dc motor |

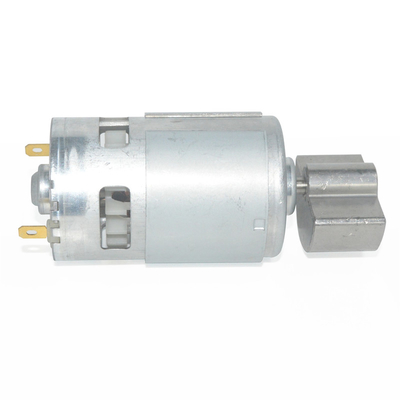

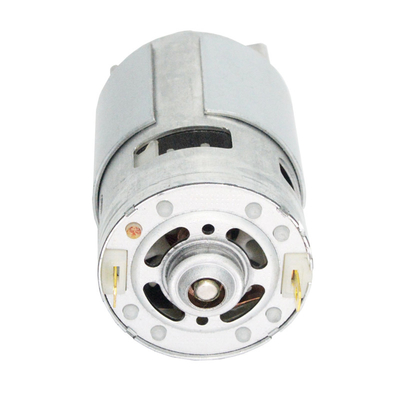

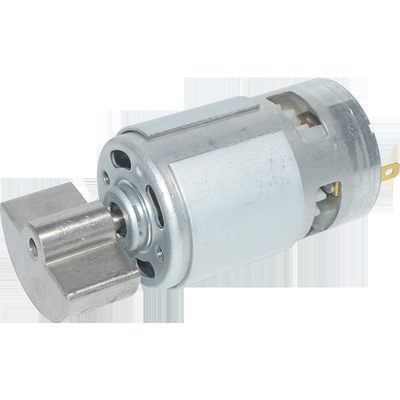

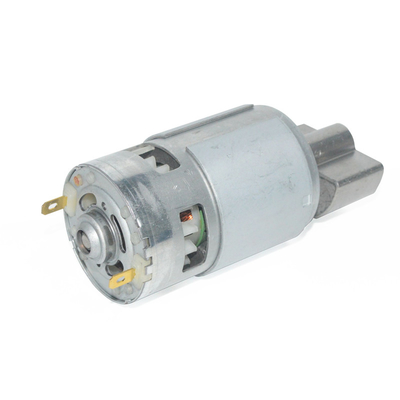

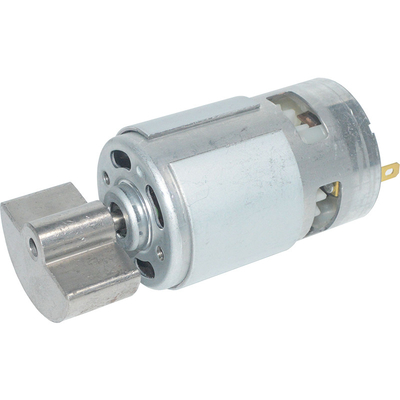

RS 775 Electric DC Vibration Motor High Torque 9300RPM For Drill Screwdriver Tool
RS-775 Electric Motor DC 12V-18V 9300RPM High Speed Power High Torque For Drill Screwdriver Tool
Motor measured parameters (for reference):
Voltage range: 12-24V
Test voltage: 12V
No-load current: 0.23A
Stall current: 3.25A
No-load speed: 4600 rpm
Test voltage: 24V
No-load current: 0.4A
Stall current: 3.25A
No-load speed: 9300 rpm
Motor step height: 4.5mm
Motor step diameter: 17.5mm
Output Shaft length: 16mm (shaft length above step level)
Shaft diameter: 5mm shaft (cutting edge 1.7mm, cutting edge length 13mm)
