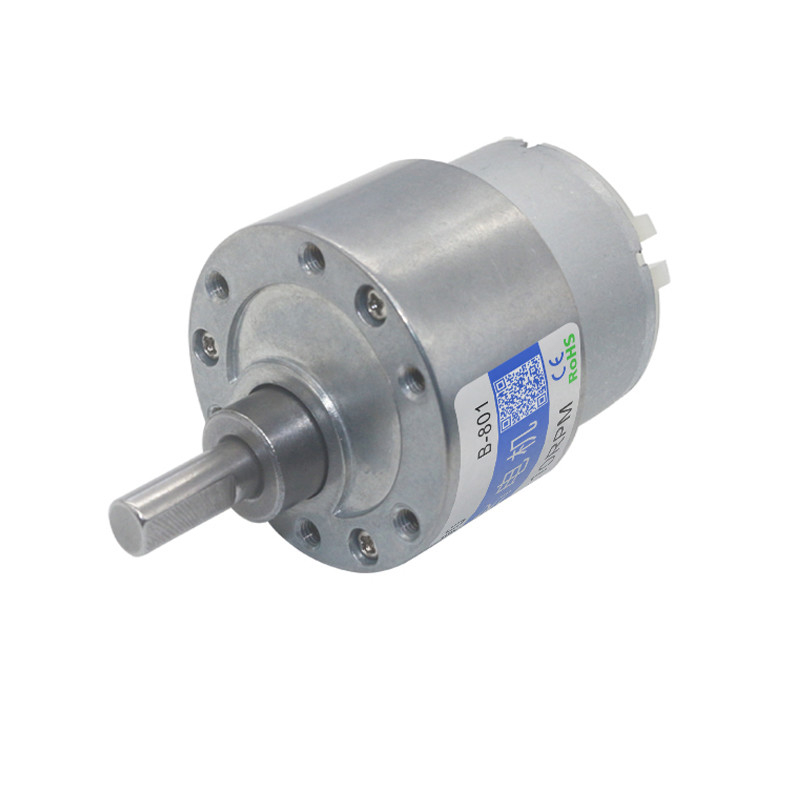

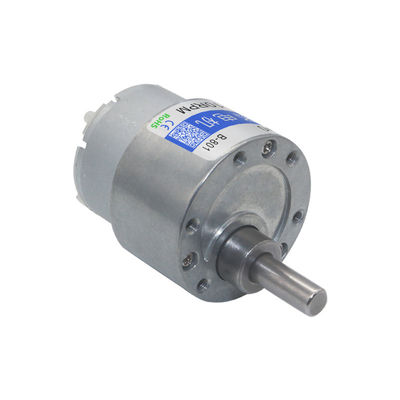

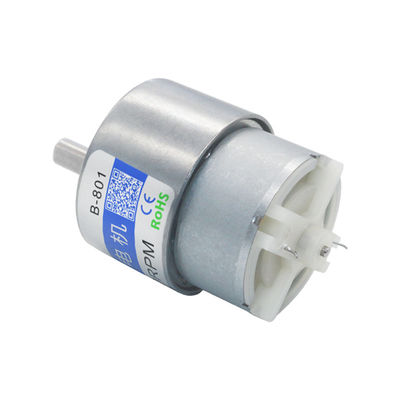

1000RPM Electric DC Gear Motor 12v 24v

1000RPM Electric DC Gear Motor 12v 24v
1000RPM Electric DC Gear Motor 12v 24v 1000RPM Electric DC Gear Motor 12v 24v 1000RPM Electric DC Gear Motor 12v 24v 1000RPM Electric DC Gear Motor 12v 24v

Large Image :  1000RPM Electric DC Gear Motor 12v 24v

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE,RoHs
Model Number: JGB37-500
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 5000 Pieces Per day

1000RPM Electric DC Gear Motor 12v 24v

Description
Product Name: JGB37 -500 Type: Brushed Motor
Voltage(v): 12V/24V Speed(rpm): 8-1000RPM
Size: 37MM Usage: Car,Fan,Home Appliance, Electric Bicycle, Boat
High Light:

1000RPM Electric DC Gear Motor

,

Electric DC Gear Motor 12v 24v

,

1000RPM DC Gear Motor

1000RPM Electric DC Gear Motor 12v 24v

12v 24v mini dc gear motor with 37mm gearbox reduction 500 with reductor adjusting speed by speed control

Product Detail

General specifications:

1.   Standard Operating Conditions: * Rated Voltage: 6v. * Direction of Rotation:CW when viewed from output shaft side
*  Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
*  Storage Temperature:Temperature range of -20C~+60C

2.   Measuring Conditions:

2-1  Motor Position:To be place t horizontally when measuring
2-2  Power Supply: Regulated DC power supply
--No load speed:2-160rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
Ratio: 1:6.25 1:10 1:18.8 1:30 1:56 1:90 1:131 1:68 1:210 1:270 1:506 1:810
the motor speed : 12v 6400RPM 24V 6000RPM
Remark:
Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one for
this type, hope your kindly understanding.
Datasheet of gear motor:
model:JGB37-500   空裁no load   at load       堵转STALL
  voltage speed current speed current torque 功率 torque current weight L尺寸
  V ±10%RPM MA ±10%RPM MA KG.CM w KG.CM MA G MM
JGB37-5OO-6.3K 12 1000 38 860 213 0.08 0.73 0.4 770 124 19
JCB37-500-10K 12 640 38 438 236 0.13 0.58 0.64 770 124
JGB37-500-19K 12 340 38 275.6 177 024 0.69 1.2 770 129 22
JCB37-500-30K 12 210 38 160   042 073 1.86 770 129
JCB37-500-56K 12 110 38 86.8 208 0.74 0.67 3.2 770 133 24
JCB37-500-90K 12 70 38 56 227 1.18 0.69 5.1 770 133
JCB37-500-131K 12 50 38 34 170 1.89 0.67 7.5 770 137 26.5
JCB37-500-168K 12 40 38 312 199 2.79 0.91 9.65 770 137
JCB37-500-270K 12 24 38 20.6 199 4.56 0.98 15 770 137
JCB37-500-506K 12 13 38 102 220 8.7 0.92 31 770 146 29
JGB37-500-810K 12 8 38 6.5 200 11.6 0.78 37.5 770 146

model:JGB37-500   No load  On load     Stall
  voltage speed current speed current torque Output torque current weight L size
  V ±10%RPM ma ±10%RPM MA kg.cm w KG.CM MA G MM
JCB37-500-6.3K 24 960 30 740 89 0.06 0.5 022 330 124 19
JCB37-S00-10K 24 600 30 462 85 0.1 0.48 0.35 330 124
JCB37-500-19K 24 320 30 240 100 0.14 0.34 0.67 330 129 22
JCB37-500-30K 24 200 30 159.7 81 022 0.37 1.1 330 129
JCB37-500-56K 24 100 30 82 80 0.92 0.78 2 330 133 24
JCB37-500-90K 24 66 30 55.5 79 1.12 0.79 3.2 330 133
JCB37-5OO-131K 24 45 30 37.1 86 1.32 0.51 4.6 330 137 26.5
JCB37-500-168K 24 35 30 272 104 1.4 0.4 6 330 137
JGB37-500-270K 24 22 30 18.8 105 3 0.59 9.48 330 137
JCB37-5OO-5O6K 24 12 30 9.3 107 9.13 0.88 18 330 146 29
JGB37-500-810K 24 7 30 5.4 105 14.6 0.82 28.9 330 146



These brushed DC gearmotors are the largest and most powerful we carry. They are available in a range of gear ratios from 6.3:1 to 810:1, and with 12 V or 24 V motors, The 12 V and 24 V motors offer approximately the same performance at their respective nominal voltages, with the 24 V motor drawing half the current of the 12 V motor.




Dimensions &Pictures:

1000RPM Electric DC Gear Motor 12v 24v 0

*shockproof foam packing
*Suitable carton size
*stretch film and pallet packing
*DHL,EMS,UPS,Epacket,ocean shipping
*Sample order send out in 2 days.
Our Services & Strength
*General Service:
*Quick Reply:All enquiry or email be replied in 12 hours, no delay for your business.
*Professional Team:Questions about products will be replied professionally, exactly, best advice to you.
*Short Lead time:Sample or small order sent in 7-15 days, bulk or customized order about 30 days.
*Payment Choice:T/T, Western Union,, L/C, etc, easy for your business.
*Before shipment:Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
*Language Choice:Besides English, you can use your own language by email, then we can translate it.
*Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor- made
according to customer’s requirements.
