ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller

ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller
ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller

Large Image :  ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh,CE
Model Number: J809
Payment & Shipping Terms:
Minimum Order Quantity: 150 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller

Description
Size: 74mm*47mm*28mm Weight: 67g
Voltage: 10-30V Max Current: 4a
MOQ: 150pcs Type: Brushed DC Motor Speed Controller
Certification: CE ROHS Brand Name: J809
Application: Brushed DC Motor Place Of Origin: China

Products Description
Appearance & Dimensions
Model
J809
Weight
67g
Working voltage
DC 10V~30V
Rated current
3A
Speed regulation range
5%~95%
PWM frequency
500Hz

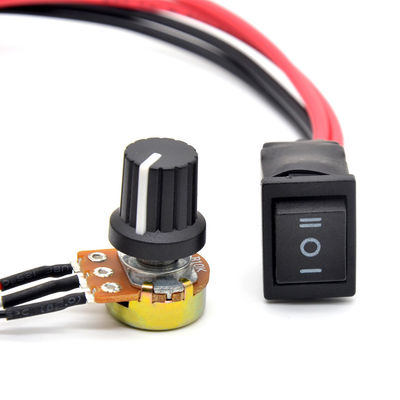

Potentiometer
Resistance B10K: Line length 20cm: Opening 8mm
Product size
74*47*28mm
Maximum output power
120W (greater than 24V) output voltage is approximately 0-100% of the input voltage
Maximum current
4A (overload short circuit protection current of 4A, short circuit time not exceeding 30 seconds)
Control power
12V * 3A=36W 24V * 3A=72W, greater than 24A, maximum 120W
This speed controller uses PWM speed regulation technology, which has high conversion efficiency, wide speed regulation range, and stable performance. It uses imported Italian French semiconductor original chips and undergoes multiple tests such as voltage,current, and function before leaving the factory. The circuit is stable and reliable

ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller 0
ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller 1
ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller 2
Product application
ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller 3
Why Choose Us
ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller 4
Feedback from customers
ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller 5
Company Profile
ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller 6
Shenzhen Jinshunlaite Motor Co., Ltd. is a manufacturer of dc gear motor,bldc motor,worm gear motor,micro motor,pwm motor etc, with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller 7
ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller 8
Product packaging
ASLONG 6-30V 24v dc motor speed control Micro Motor Speed Control Board J809 74*47*28mm DC motor speed controller 9
FAQ

1)What's the price?

We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.


2)What's the MOQ?
We try to meet every client's requests and don't want to disappoint our clients.
So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.
Kindly chat with our saler to confirm it.

3)What's the delivery time?
At the first we have an schedule,the earlier you place order,the fater we finish the production.
In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.

4)Can you send some samples before the order?
Yes of course,we must send the sample to confirm the quality with you first. UPS,TNT,FEDEX or DHL are all available.

5)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable.

So logo in usually logo is necessary.It can be labeled on the motors.

6)What's the payment term?
For small amount,we accept 100% payment via paypal.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.
And the rest must be paid before shipping.

7)How to deliver the goods?
we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.

8)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable.
So logo in usually logo is necessary.It can be printed,emboridered,embossed/jacquard.

9)What's the payment term?
For small amount,we accept 100% payment via Western Union.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.
And the rest must be paid before shipping.

10)How to deliver the goods?
If goods quantity is small,we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and clients don't need to pay the custom charge. If goods quantity is large,we will ship by sea.
It will be very economical.

11)Does your company supply to any famous hotels?
As a leading manufactuer of hotel products,we have many famous hotel and resort clients.
Such as InterContinental Hotels Group,Marriott Hotel,The Ritz Carlton Hotel and son on.
If you need some samples of them,we can send out.

12)Any other questions kindly chat with our sales,they will do the best to serve you.
