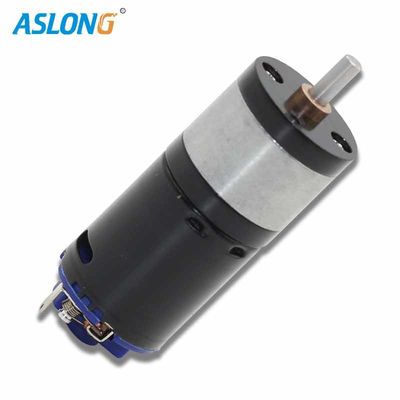

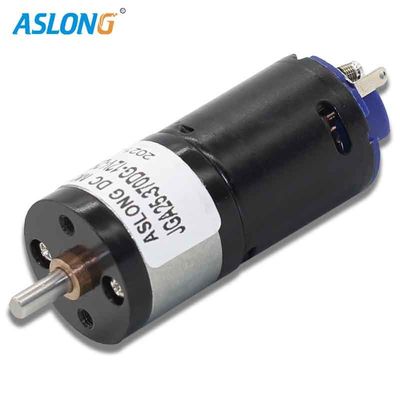

Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer

Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer
Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer

Large Image :  Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE
Model Number: JGA25-370DG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: negotiation
Packaging Details: bubble +carton
Supply Ability: 1000pcs per days

Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer

Description
Material: Metal Home Appliance: Dc Gear Motor
Dc Motor: 6v Mini Dc Gear Motor Reducer: Dia25mm Gearbox Reducer
Motor: 12v 20000rpm Dc Motor Usage: Pet Device Smart Toy
High Light:

20000rpm 370 DC Motor

,

6V 370 DC Motor

,

Strong Magnetic 6V 370 Motor

Black High speed strong magnetic 6v 12v 20000rpm 370 dc mtor with dia25mm double link gear box reducer aslong brand



JGA25-370DG Mini DC Gear Motor

Voltage:DC 12V


Power:3W- 4W


Electric current:0.25A/0.45A/0.33A


Speed:23rpm-4545rpm


Max torque:20KG.com


out shaft:25mm


Can adjust speed


Can reversed



1 Standard Operating Conditions:
1-13Rated Voltage: 6v.
1-14Direction of Rotation:CW when viewed from output shaft side
1-15Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-16Storage Temperature:Temperature range of -20C~+60C

Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
--No load speed: rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
-- Ratio: 4.4 9.6 16 21.3 26 34 45 78 59 103 171 130 226 286 378 500
2-3 Micro motor : 6V 20000rpm RPM 12V 20000RPM

for other no-loading speed pls contact us

Remark: Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one for this type, hope your kindly understanding. If you want to need other speed , please contact us , we will make it for you

Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer 0

2. product drawing :

Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer 1

3. dc gear motor :

Strong Magnetic 6V 12V 20000rpm 370 DC Motor With Dia25mm Double Link Gearbox Reducer 2
