Product Details:
|
| Name: | Micro Metal Gear Motor | Usage: | Door Lock,bicycle,Fan,Home Appliance |
|---|---|---|---|
| Speed(rpm): | 12-1600rpm | Torque: | 0.3-30kg.cm |
| Voltage(v): | 12V/24V | Weight: | 19g |
| Highlight: | Jgb37 3530 Micro DC Gear Motors,37mm Micro DC Gear Motors,Jgb37 3530 micro metal gear motor |
||

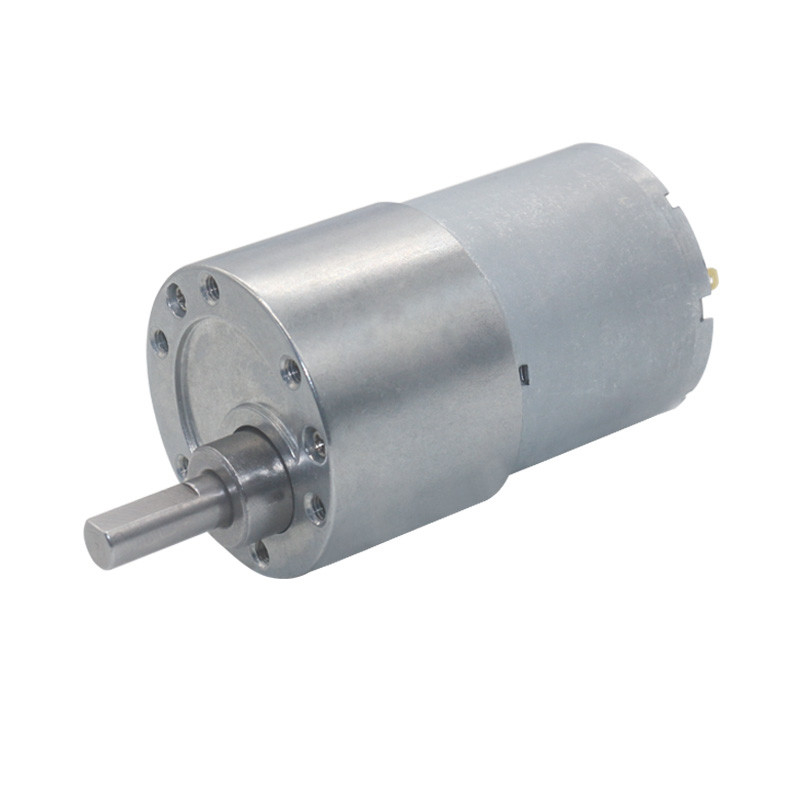

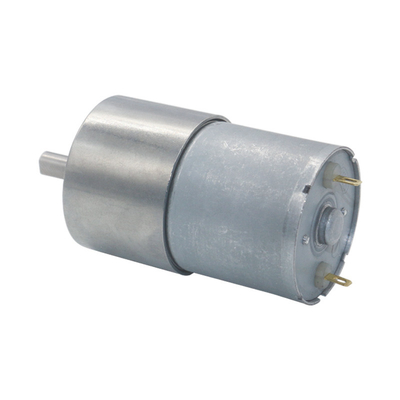

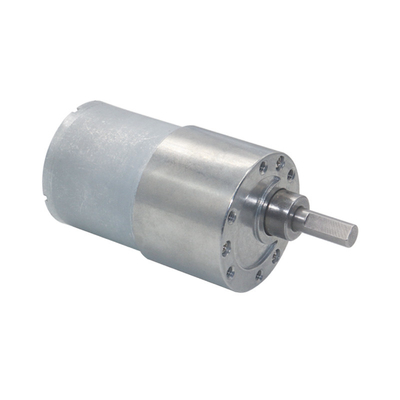

Jgb37 3530 37mm Micro DC Gear Motors 12v
JGB37-3530 37mm Diameter 12v DC Motor 24V Gear Motor
General specifications:
* Voltage:12V
* No-load speed:16-381RPM
* No-load current:30mA
* Stall Torque:0.3g-3.3kg.cm
* Stall current:0.7A
Voltage/rpm/shaft can be customized , welcome to consult.
Introduction of the motor:
1. Name of the motor: JGB37-3530 DC Gear Motor DC 12V 24V
2. Rated voltage have DC 12V and DC 24V
3. DC 12V ; You can choose the no load speed have : 12rpm/20rpm/37rpm/59rpm/76rpm/111rpm/178rpm/333rpm/533rpm/1000rpm/1600rpm
Rated torque between 0.5 To 40 KG.CM; stall torque: between 2 To 54KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
4. DC 24V ; You can choose the no load speed have :
7rpm/12rpm/22rpm/35rpm/45rpm/66rpm/107rpm/200rpm/319rpm/600rpm/960rpm
Rated torque between 0.5 To 40 KG.CM; stall torque: between 2 To 54KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
5. Direction of rotation of the motor: CW Or CCW, Support Reversed;
Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected
6. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.
7. Gear material: Metal gears make the motor last longer
8. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination. You can refer to the combination sales introduction below.
9. . The motor has standard noise when working.If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.
When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.
10. Motor DC power connection is safe; the experiment proves that the motor voltage is lower than 36V without any danger.
11. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Robot ; DIY ; Electric curtains ; Billboard motors ; Household appliances etc.
The following is the parameter table of the motor
Your project load should not exceed rated torque of the motor, otherwise the life of the motor will be reduced
The parameters in the table below are the parameters for the motor connection rated voltage 12v/24v
If the motor is connected to a non-rated voltage input, all parameters of the motor will change.
Drawing:
Datasheet:
| JGB37-3530 Rated Volt DC12V | |||||||||||
| Reduction Ratio | 6.25 | 10 | 18.8 | 30 | 56 | 90 | 131 | 168 | 270 | 506 | 810 |
| No load Current (ma) | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 |
| No load RPM | 1600 | 1000 | S31 | 333 | 178 | 111 | 76 | S9 | 37 | 20 | 12 |
| Load torque (Kg,cm) | 0.3 | 0.38 | 0.7 | 1.14 | 2.1 | 3.4 | 5 | 6.3 | 10 | 19 | 30 |
| Load RPM | 1120 | 800 | 424 | 266 | 412 | 88 | 60 | 47 | 29 | 16 | 9 |
| Load Current (rrA) | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 |
| Max Torque (Kg.cm) | 1 | 1.S2 | 2.8 | 4.5 | 8.4 | 13 | 20 | 25 | Max 40KG | ||
| Gear box length (rrm) | 19 | 19 | 22 | 22 | 24 | 24 | 26.5 | 26.5 | 26.5 | 29 | 29 |
| JGB37-3530 Rated Volt DC24V | |||||||||||
| Reduction Ratio | 6.25 | 10 | 18.8 | 30 | 56 | 90 | 131 | 168 | 270 | 506 | 810 |
| No load Current (ma) | <S0 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <S0 |
| No load RPM | 960 | 600 | 319 | 200 | 107 | 66 | 45 | 35 | 22 | 12 | 7 |
| Load torque (Kg,cm) | 0.2 | 0.29 | 0.54 | 1.1 | 1.6 | 2.61 | 3.7 | 4.8 | 7.8 | 14 | 23 |
| Load RPM | 672 | 480 | 255 | 160 | 85 | 52 | 36 | 28 | 18 | 10 | 5.6 |
| Load Current (ma) | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 |
| Max Torque (Kg.cm) | 1 | 1.16 | 2.1 | 4.4 | 6.4 | 10 | 14.8 | 19 | Max 31KG | ||
| Gear box length (rrm) | 19 | 19 | 22 | 22 | 24 | 24 | 26.5 | 26.5 | 26.5 | 29 | 29 |
Details of this motor:
1. Metal gears, gears are resistant to rust and are difficult to corrode, promoting smooth and firm motor rotation
2. Positive and negative wiring tentacles of DC power supply
3. The motor is made of metal and has excellent thermal conductivity, which makes the motor torque strong.
Specification of the 37mm 3530 dc motor: JGB37-3530.pdf
