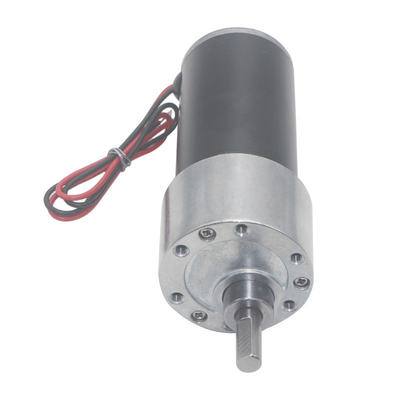

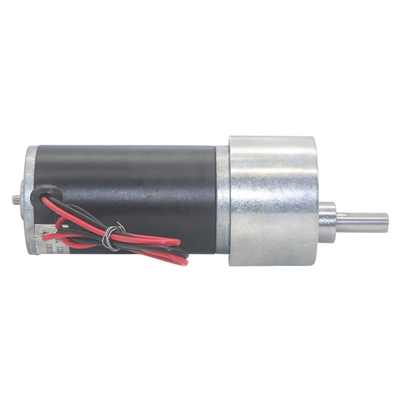

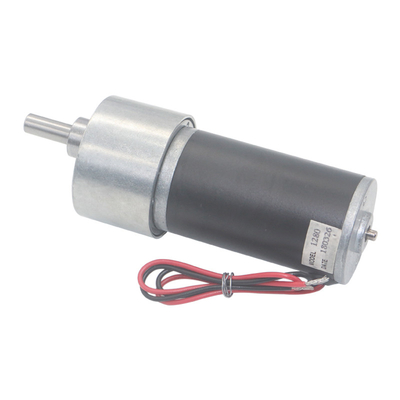

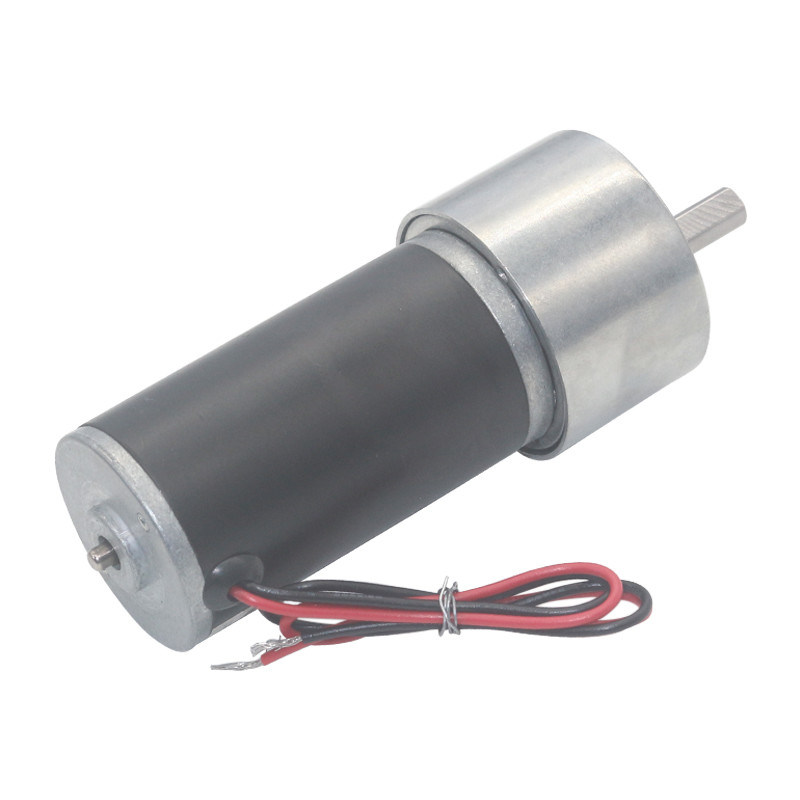

JGB37-3157 37MM Electric DC Gear Motor

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

JGB37-3157 37MM Electric DC Gear Motor

JGB37-3157 37MM Electric DC Gear Motor
JGB37-3157 37MM Electric DC Gear Motor JGB37-3157 37MM Electric DC Gear Motor JGB37-3157 37MM Electric DC Gear Motor JGB37-3157 37MM Electric DC Gear Motor

Large Image :  JGB37-3157 37MM Electric DC Gear Motor

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE,RoHs
Model Number: JGB37-3157
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: negeotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 5000 Pieces Per day

JGB37-3157 37MM Electric DC Gear Motor

Description
Product Name: JGB37-3157 Type: Brushed Motor
Voltage(v): 12v & 24v Speed(rpm): 9-1280rpm
Size: 37MM Usage: Electric Bicycle,,Home Appliance,Boat, Car,Fan
High Light:

37MM Electric DC Gear Motor

,

JGB37-3157 Electric DC Gear Motor

,

37MM electric motor gear reducer

JGB37-3157 37MM Electric DC Gear Motor



ASLONG JGB37-3157 Micro DC Gear Motor 12v Gear Reduction Motor Brush Type Dc Motor Dc Gear Motor High Torque Gear Motor



Model: JGB37-3157



12V No-load speed per minute:1280rpm 800rpm 425rpm 266rpm 142rpm 88rpm 61rpm 47rpm 29rpm 15rpm 9rpm



24V No-load speed per minute:1280rpm 800rpm 425rpm 266rpm 142rpm 88rpm 61rpm 47rpm 29rpm 15rpm 9rpm





Note: Please note the required voltage and no-load speed to facilitate our delivery, thank you!







Model:JGB37-3157
Voltage Noload   Load Torque Stall Reducer
Using The voltage Speed Current Speed Current Torque Power Torque Current Redct i on (L)Size
Range Rated r/mi n ma r/mi n A kg. cm W kg. cm A Ratio mm
6-12V 12V 1280 240 960 1.2 0.5 14 2.5 3.5 6.25 19
6-12V 12V 800 240 600 1.2 0.8 14 4 3.5 10 19
6-12V 12V 425 240 340 1.2 1.5 14 7.5 3.5 18.8 22
6-12V 12V 266 240 212 1.2 2.4 14 12 3.5 30 22
6-12V 12V 142 240 113 1.1 4.5 14 22 3.5 56 24
6-12V 12V 88 240 73 1.1 7.2 14 36 3.5 90 24
6-12V 12V 61 240 51 1.1 10 14 50 3.5 131 26.5
6-12V 12V 47 240 40 1.1 14 14 Forbidden 3.5 168 26.5
6-12V 12V 29 240 25 1 21 14 Forbidden 3.5 270 26.5
6-12V 12V 15 240 13 1 40 14 Forbidden 3.5 506 29
6-12V 12V 9 240 8 1 60 14 Forbidden 3.5 810 29
6-24V 24V 1280 120 960 0.9 0.5 14 2.5 3 6.25 19
6-24V 24V 800 120 600 0.9 0.8 14 4 3 10 19
6-24V 24V 425 120 340 0.9 1.5 14 7.5 3 18.8 22
6-24V 24V 266 120 212 0.9 2.4 14 12 3 30 22
6-24V 24V 142 120 113 0.9 4.5 14 22 3 56 24
6-24V 24V 88 120 73 0.9 7.2 14 36 3 90 24
6-24V 24V 61 120 51 0.9 10 14 50 3 131 26.5
6-24V 24V 47 120 40 0.8 14 14 Forbidden 3 168 26.5
6-24V 24V 29 120 25 0.8 21 14 Forbidden 3 270 26.5
6-24V 24V 15 120 13 0.8 40 14 Forbidden 3 506 29
6-24V 24V 9 120 8 0.8 60 14 Forbidden 3 810 29



JGB37-3157 37MM Electric DC Gear Motor 0JGB37-3157 37MM Electric DC Gear Motor 1
