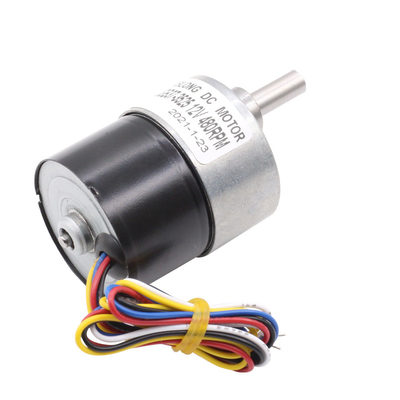

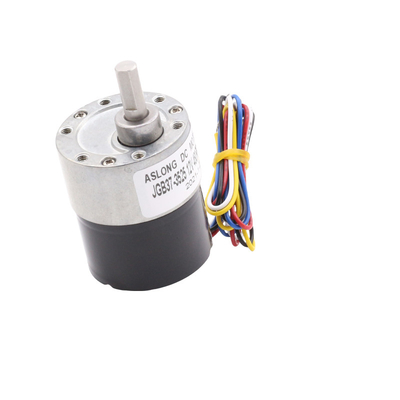

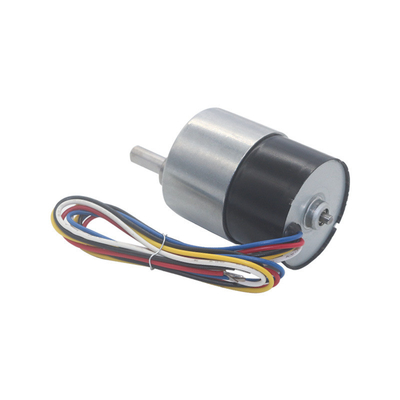

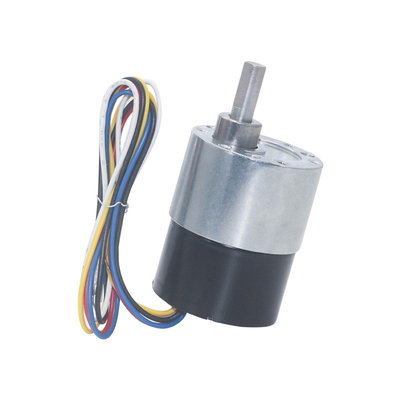

JGB37 3525 DC Brushless Gear Motor 24V Large Torque Motor Positive Negative

JGB37 3525 DC Brushless Gear Motor 24V Large Torque Motor Positive Negative
JGB37 3525 DC Brushless Gear Motor 24V Large Torque Motor Positive Negative JGB37 3525 DC Brushless Gear Motor 24V Large Torque Motor Positive Negative JGB37 3525 DC Brushless Gear Motor 24V Large Torque Motor Positive Negative JGB37 3525 DC Brushless Gear Motor 24V Large Torque Motor Positive Negative

Large Image :  JGB37 3525 DC Brushless Gear Motor 24V Large Torque Motor Positive Negative

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: ROSH,CE
Model Number: JGB37-3625
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

JGB37 3525 DC Brushless Gear Motor 24V Large Torque Motor Positive Negative

Description
Usage: Home Appliance,Electric Bicycle Commutation: Brushless Dc Gear Motor
Type: BRUSHLESS DC Geared MOTOR Protect Feature: Totally Enclosed
Certification: CE,ROHS Construction: Permanent Magnet
Voltage(v): 24V,12V Product Name: 2418 Brushlees Dc Gear Motor
Motor Type: Brushless Dc Motor
High Light:

JGB37 3525 Brushless Gear Motor

,

600rpm Brushless Gear Motor

,

JGB37 3525 Large Torque Motor

JGB37 3525 DC Brushless Gear Motor 24V Large Torque Motor Positive Negative



JGB37-3525 DC Motor 24V Low noise Long life Large Torque Positive and negative Brushless DC Gear Motor motor



Specification:
  • Voltage:DC12V

No-load Speed:480rpm,300rpm,160rpm,100rpm,53rpm,33rpm,22rpm,17rpm,11rpm,6rpm,4rpm

  • Voltage:DC24V

No-load Speed:960rpm,600rpm,320rpm,200rpm,107rpm,66rpm,45rpm,35rpm,22rpm,12rpm,7rpm

  • Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal
  • Motor Diameter: about 37mm
  • Motor Body Length: 25mm
  • Output Shaft Diameter: 6mm(D-Type)
  • Output Shaft Length: 12mm
  • Gearbox Length: see the table

Large Torque Motor Wire Connection Method:

  • Red line: power +
  • Black line: Power -
  • White line: CW / CCW control line,White line and black line together, you can change the motor direction
  • Blue line: PWM speed control line, then 0 ~ 5V pulse width governor
  • Yellow line: FG signal line
  •
  • JGB37 3525 DC Brushless Gear Motor 24V Large Torque Motor Positive Negative 0
  • Datasheet:



Model number: JGB37-3525
Rated DC 12V testing parameter datasheet
Reduction ratio 6.3 10 19 30 56 90 131 168 270 506 810
No Load Current(ma) ≤70 ≤70 ≤70 ≤70 ≤70 ≤70 ≤70 ≤70 ≤70 ≤70 ≤70
No Load speed (rpm) 960 600 320 200 107 66 45 35 22 12 7
Rated torque(kg.cm) 0.8 1.2 2.3 3.6 6.8 10.9 15.9 20.4 32.7 Max 35kg
Rated speed (rpm) 685 428 228 142 76 25 32 25 15.7 8.5 5.8
Rated Current(A) 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Stall Torque (kg.cm) 1.5 2.5 4.7 7.5 12.5 22.5 32 Max 35kg Forbidden Stall
Stall Current(A) 1.8 1.8 1.8 1.8 1.8 1.8 1.8
Gearbox Length(mm) 19 22 24 26.5 29
Rated DC 24V testing parameter datasheet
Reduction ratio 6.3 10 19 30 56 90 131 168 270 506 810
No Load Current(ma) ≤130 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130
No Load speed (rpm) 960 600 320 200 107 66 45 35 22 12 7
Rated torque(kg.cm) 0.45 0.7 1.3 1.8 4 6.4 9.3 12 19 35 35
Rated speed (rpm) 685 428 228 142 76 25 32 25 15.7 8.5 5.8
Rated Current(A) 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
Stall Torque (kg.cm) 1.2 2 3.8 5.6 11.5 18 26.5 Max 35kg Forbidden Stall
Stall Current(A) 1.3 1.3 1.3 1.3 1.3 1.3 1.3
Gearbox Length 19 22 24 26.5 29
